US$ 2,300 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Taizy
Place of Origin:
Henan, China
Model Number:
tz-100
Contact Supplier Request Quote Chat Now
Octagon Mixer Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao or other china port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Taizy
Place of Origin Henan, China
Model Number tz-100
Warranty 1 Year
Weight 220kg
Dimension(L*W*H) 4130*1010*1550mm
Voltage 380v
Certification iso
Application washing
Condition New
Power(W) 2.57kw

fruit and vegetable cleaner vegetable cleaning machine

fruit washing line vegetable washing line

Product Description



1.Description of the fruit vegetable washing line:

We can provide semi-automatic and fully automatic fruit and vegetable washing line according to customer's requirements. Our usual capacity is  100kg/h, 200kg/h, 300kg/h, 500kg/h , 1000kg/h and so on .

fruit and vegetable cleaner vegetable cleaning machine fruit washing line vegetable washing line





 fruit and vegetable cleaner vegetable cleaning machine fruit washing line vegetable washing line



1.washing machine:

Bubble cleaning machine is suitable for: cleaning, soaking, sterilizing and fixing of granular, leafy and root products such as leafy vegetables, edible fungi, fruits, aquatic products and Chinese herbal medicines.

The bubble cleaning machine is equipped with a bubble generating device to make the material roll state, remove the effect of pesticide residue on the surface of the product, and at the same time, an appropriate amount of the agent can be added for disinfection and fixation. The floating objects can overflow from the overflow tank, and the sediment is discharged from the sewage outlet for cleaning purposes. Under the joint work of air bubbles, surfing, lifting and spraying, the equipment has the characteristics of high cleaning, energy saving, water saving, stable and reliable equipment and the original color. It is an ideal equipment for vegetables, food processing, catering and other industries.

fruit and vegetable cleaner vegetable cleaning machine fruit washing line vegetable washing line



working principle:
The material enters the water tank and is fully dispersed, tumbling, cleaned and transported under the action of high pressure water flow and strong air bubbles. The sediment eluted from the surface of the material sinks into the bottom isolation bin, and there is no tumbling backflow to cause re-contamination. The debris and bugs floating in the water are collected through the mesh of the de-doping mechanism, and the filaments, hair, and the like are cleaned by the roller. After the washed materials are discharged, they are sprayed and washed, and sent to the next process.

fruit and vegetable cleaner vegetable cleaning machine fruit washing line vegetable washing line



Parameters of the vegetable washing machine:

Model Power(kw) Voltage(v) Weight(kg) Size(mm) Capacity(kg/h)
TZ-220 2.75 380 220 4130*1010*1550 1000-1500
TZ-260 3.37 380 260 5200*1010*1550 2000-2500



fruit and vegetable cleaner vegetable cleaning machine fruit washing line vegetable washing line

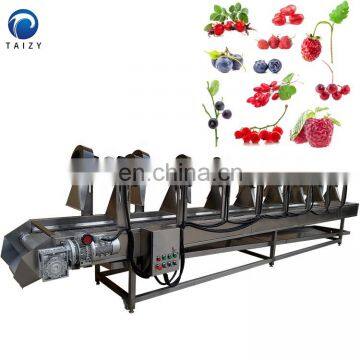

2.air drying machine:

The air drying machine is air-dried with a large air volume and low noise fan. The air dryer is designed to be repeatedly turned over and conveyed, and has an anti-wind device to prevent the blow dry corner. The air dryer has a good drying effect. The equipment adopts frequency conversion and the speed is adjustable and the conveying is stable.

fruit and vegetable cleaner vegetable cleaning machine fruit washing line vegetable washing line



Features:
The air drying machine effectively removes water droplets on the surface of the material, greatly shortens the preparation of labels and packaging, is suitable for assembly line operations, and improves the automation of production. The water removal rate is as high as 99%, and can be directly packaged after water removal.
The air drying machine allows continuous operation. It only needs to put the sterilized product into the conveyor belt. The air flow generated by the air dryer is ejected through the nozzle, and the air temperature is blown to normal temperature. Effectively protects the color and quality of the material itself.

fruit and vegetable cleaner vegetable cleaning machine fruit washing line vegetable washing line





Parameters of the fruit air drying machine:

Model Power(kw) Voltage(v) Weight(kg) Size(mm)
TZ-380 8.25 380 380 4000
TZ-460 11.75 380 460 6000
TZ-550 14.25 380 550 8000



fruit and vegetable cleaner vegetable cleaning machine fruit washing line vegetable washing line





3.The vegetable and fruit washing line:

fruit and vegetable cleaner vegetable cleaning machine fruit washing line vegetable washing line



Our factory:

fruit and vegetable cleaner vegetable cleaning machine fruit washing line vegetable washing line





Our other food machine:

https://zztaizy.en.china.cn/



 1.potato chips production line:fruit and vegetable cleaner vegetable cleaning machine fruit washing line vegetable washing line



FAQ

1.  Are you manufacturer?

    Yes, we are. Welcome to visit our factory.
2. Can you change the machine voltage as our request?
    Yes, we can.
3.  How about your after-sales service?
   Our engineer can go outside to install and train your workers to operate the full machine line.
4.  Warranty time of your machine?
    1 year except for consumable spare parts.
5.  How about delivery time of your machine?
    Generally it needs 5-15 days for big machines or producing line,and it will be much longer but within our negotiated delivery time.





Our customer friends



fruit and vegetable cleaner vegetable cleaning machine fruit washing line vegetable washing line



Company Information

Taizy company is specialized in producing, selling and serving nuts processing production lines.

Our company's main machinery such as: peanuts, walnuts, almonds, cashew nuts and pine nuts production line; macadamia nuts, chestnuts, pistachios, ginkgo, acorns, cocoa beans, castor beans, sesame processing machine; various nuts butter making machines, nuts roasting machines, oil press machines, packaging machines, etc.

Customer satisfaction is our ultimate goal.
Looking forward to establishing cooperation with you.



fruit and vegetable cleaner vegetable cleaning machine fruit washing line vegetable washing linefruit and vegetable cleaner vegetable cleaning machine fruit washing line vegetable washing line

Our Services

1. Sales service:
1) Reliable quality
2) Fast and timely delivery
3) Standard export packaging
2. After sales service:
1) Assist in setting up factories
2) Installation and technical training
3) Consumables are free or big discounts
3. Other services:
1) Factory construction consultation
2) Knowledge and technology sharing
3) Business development advice
