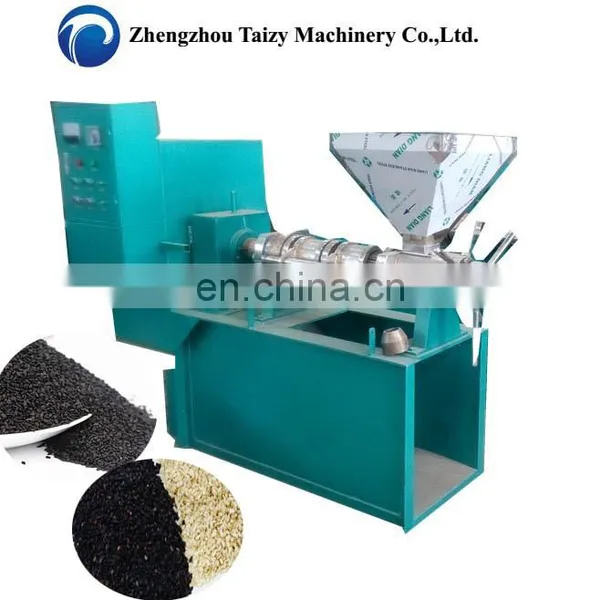

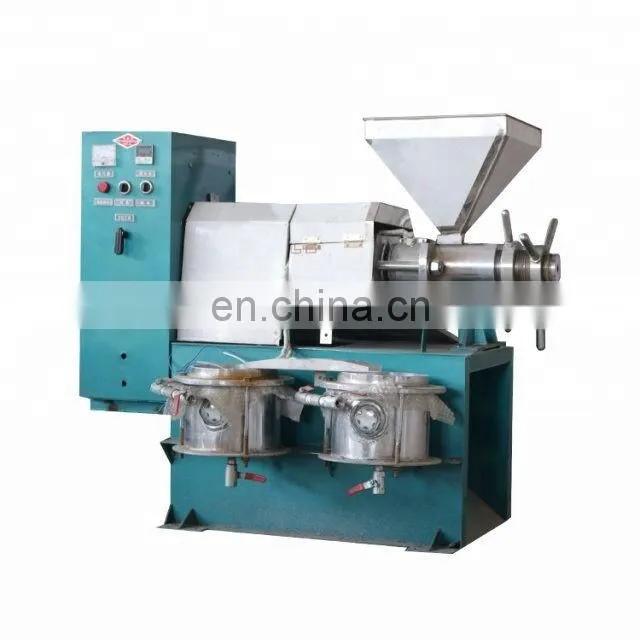

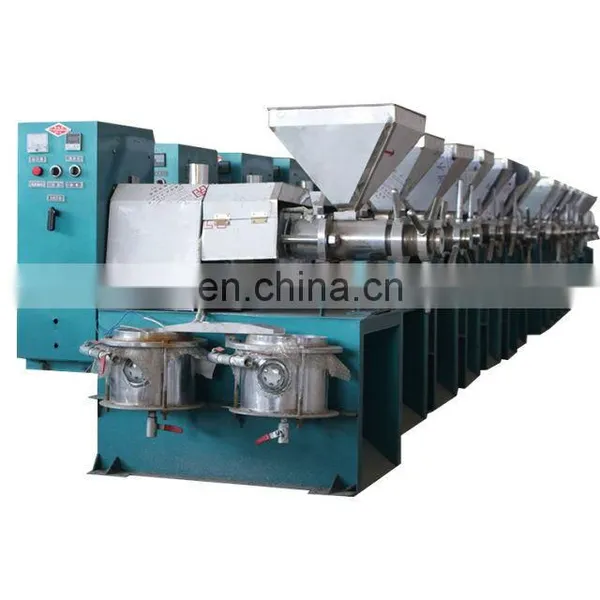

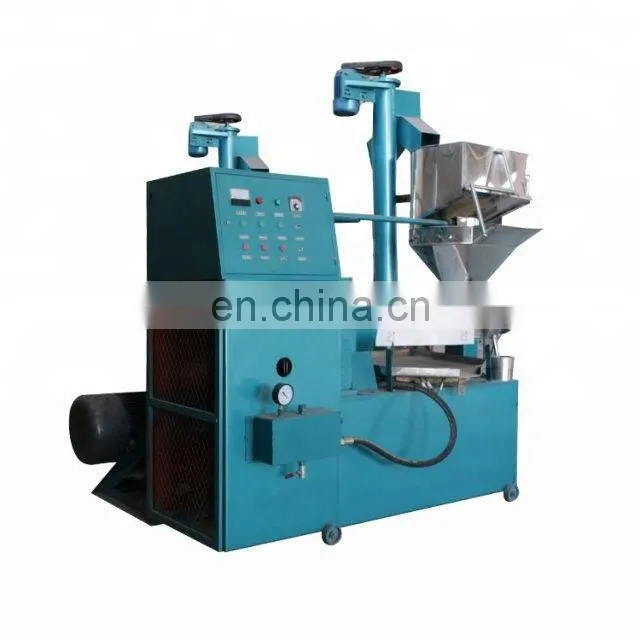

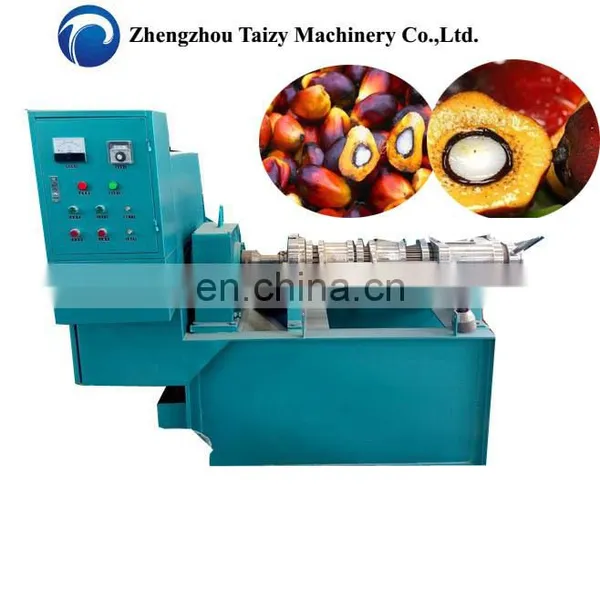

Automatic screw oil press machine
The screw oil press machine widely used to press various kinds of materials, like soybean,
sunflower seeds, peanut, sesame,rapeseeds, flax seed, camellia, cotton seed, cashew, hemp seed,
linseeds, coconut,walnuts and all the oil content crops.
Construction features of screw oil press machine
TZ series spiral screw oil press machine mainly composed of 7 major parts of screw axis,
presscage, feed mechanism, cake yielding mechanism. transmission system, electric control part
and vacuum filter part. All the parts are assembled on the frame and screwed as a whole.
The detailed description of screw oil press machine
1. The screw oil press machine can save labor and save cost,only 1 or 2people can finish
the production.
2. Different oil materials have different oil yield.
3. The screw oil press machine screw oil press, electrical element for
Heating chamber, and the vacuum filter can be for clearing the crude oil.
4. Small-land using, only 10-20square meters can meet the-need of production.
5. The oil left in cake is less than 6%. And cake thickness can be adjusted once the machine stop running.
6.The screw oil press machine is easy to operate. When operating, you should do as the instruction
Characters of screw oil press machine Simple design,easy to operate,wide suitability , continuous operation, high productivity and high oil product ratio.
Technical Data of screw oil press machine
MODEL |
CAPACITY(kg/h) |
POWER(kw) |
NET WEIGHT(kg) |
PACKING(mm) |
TZ-68 |
40 |
5.5 |
130 |
1050*660*760 |
TZ-80 |
80-125 |
5.5 |
330 |
1320*440*695 |
TZ-95 |
160-200 |
7.5 |
420 |
1910*610*765 |
TZ-100 |
160-200 |
7.5 |
400 |
1860*550*695 |
TZ-120 |
200-300 |
11 |
700 |
2060*610*770 |
TZ-130 |
375-500 |
18.5 |
700 |
2320*700*780 |
TZ-160 |
550-700 |
22 |
920 |
2020*700*780 |
TZ-165 |
620-830 |
30 |
1600 |
2120*800*980 |
1. Are you manufacturer?
Yes, we are. Welcome to visit our factory.
2. Can you change the machine voltage as our request?
Yes, we can.
3. How about your after-sales service?
Our engineer can go outside to install and train your workers to operate the full machine line.
4. Warranty time of your machine?
1 year except for consumable spare parts.
5. How about delivery time of your machine?
Generally it needs 5-7 days for big machines or producing line,and it will be much longer but within our negotiated delivery time.
Pre-sales services
* any concerns of our machine by email/phone will be replied ASAP within 24 hours
* according to the customers’ requirements and circumstance to make the best design
* cost/benefit analysis
* to support factory layout
In the sale of services
* we are in charge of installing,debugging and training
* technical guidance of frequently asked questions
After-sales service
* one year guarantee for whole machine except of quick-wear part
* 24 hours technical support by email/phone
* calling, network or door-to-door service
* use friendly English software, user manual and detailed Videos/CD
