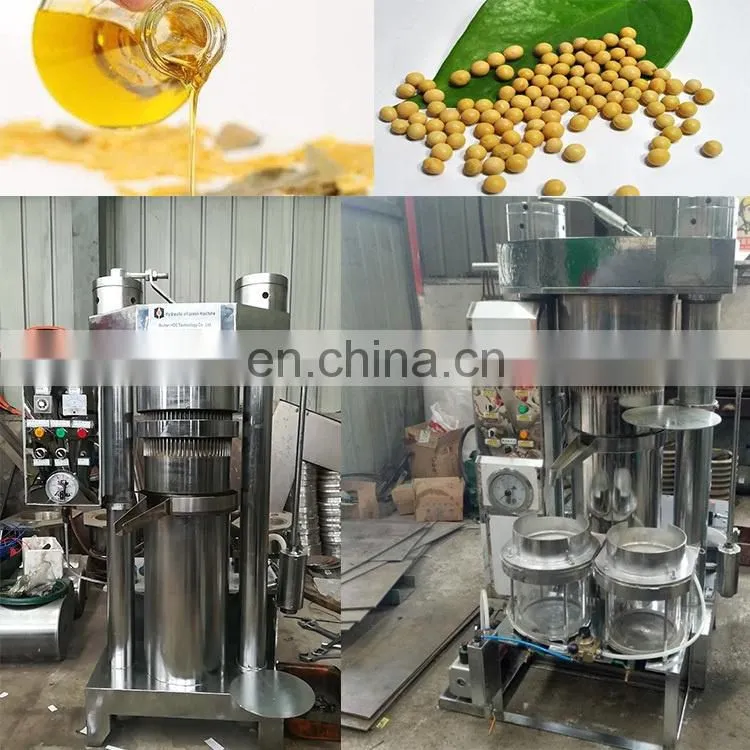

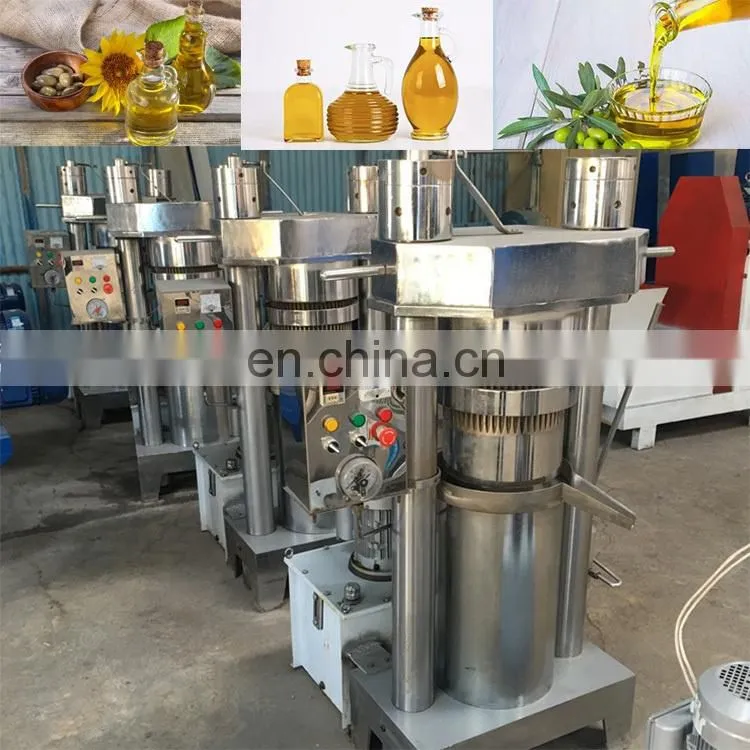

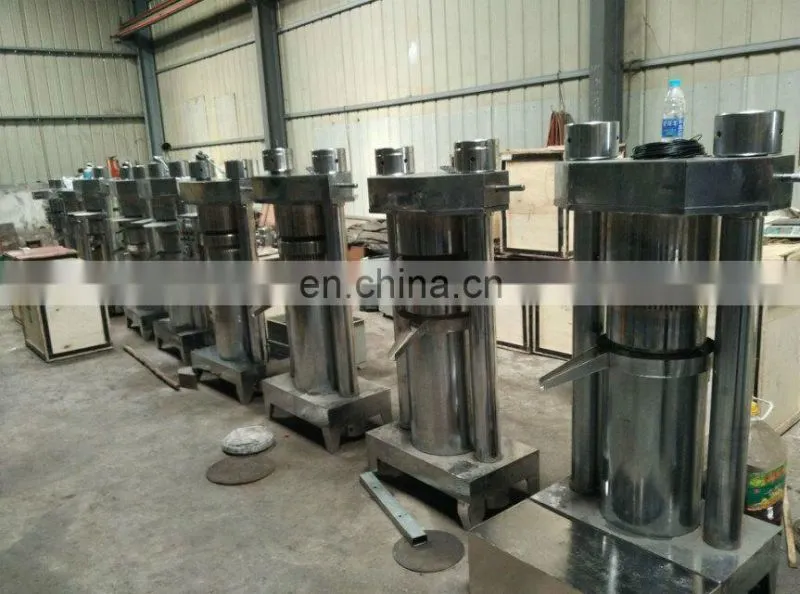

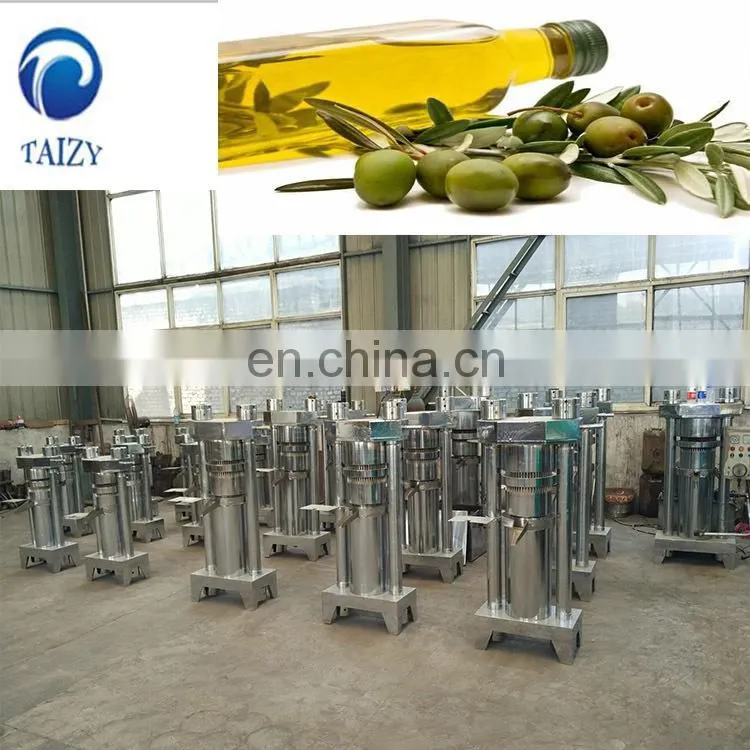

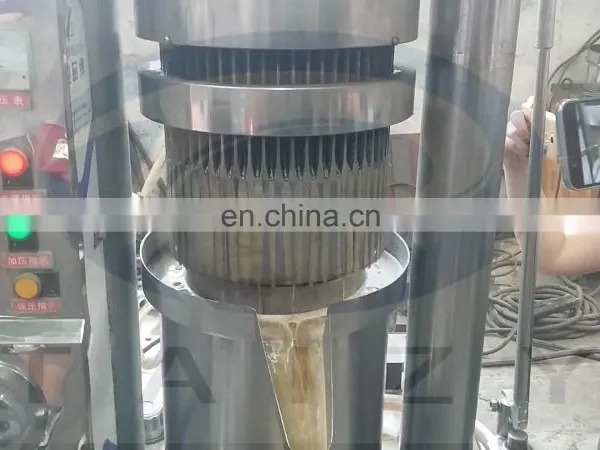

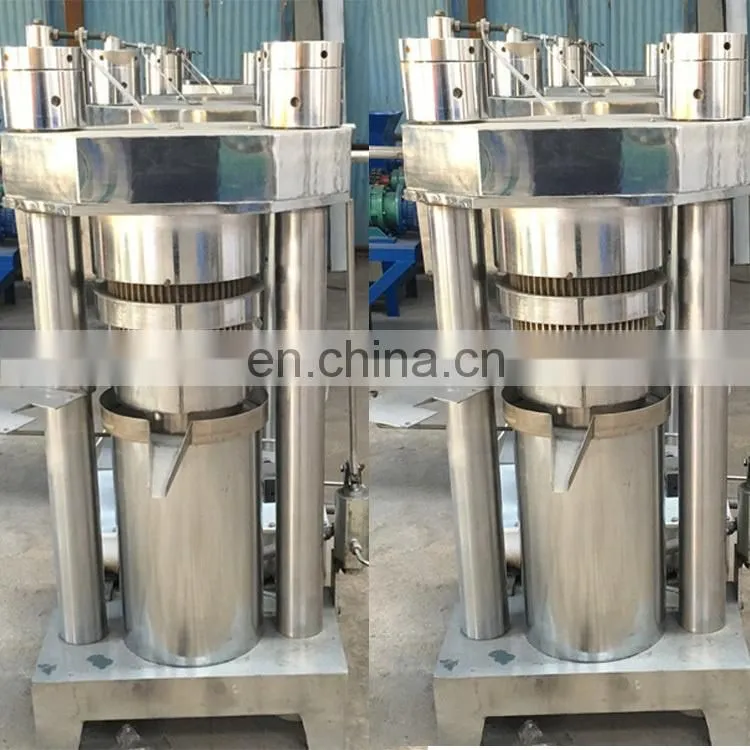

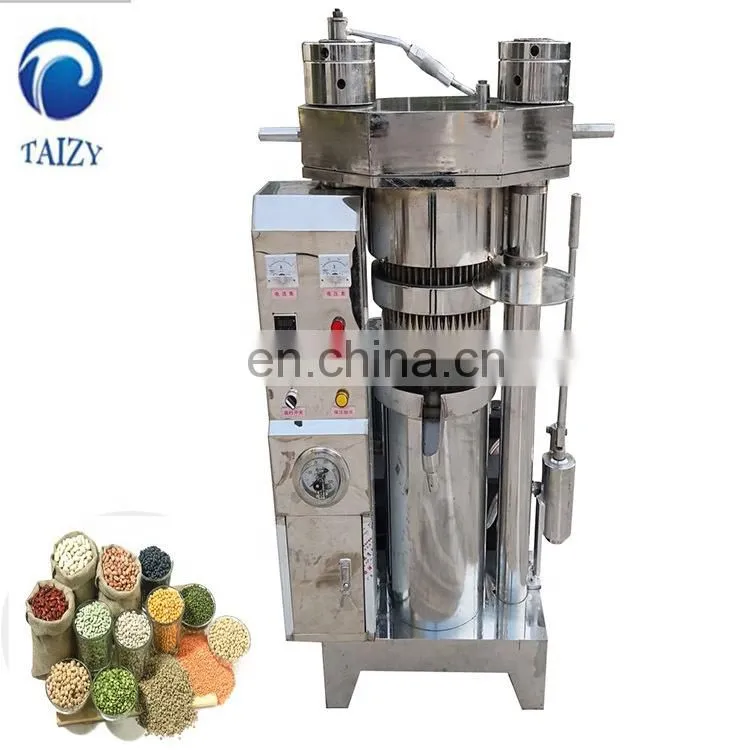

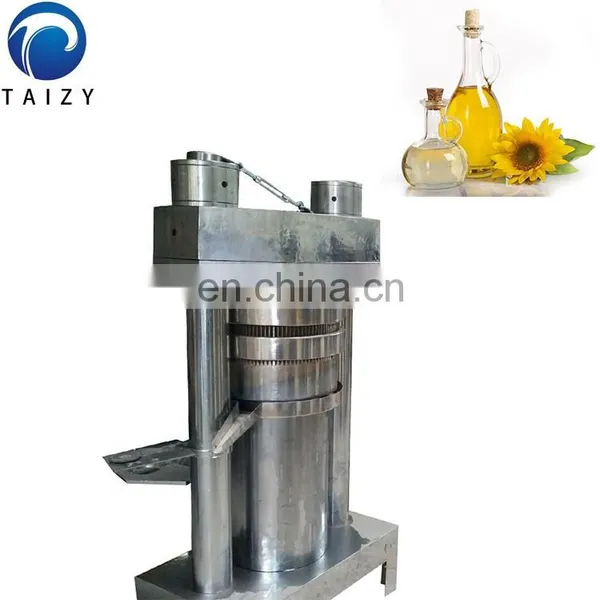

hydraulic home olive oil cold press machine
Introduction:
The automatic hydraulic oil press can be used for process many kinds of raw material: sesame, walnut kernel, peanut, pine seed (better to get rid of the shell), almond, spricot kernel, perilla, linseed and other oil crops
Structure:
1. main engine 2. hydraulic system 3.electrical system
Technical parameter:
materials |
models |
time period/time |
weight/time |
output /10 hour |
oil ratio |
|
sesame |
type 180 |
5-8 minutes |
1-3kg |
150-300kg |
42%--52% |
type 230 |
4-6minutes |
2-7.5kg |
450-750kg |
||
type 320 |
8-10minutes |
5-15kg |
800-1200kg |
||
|
almond |
type 180 |
5-8 minutes |
1-2.5kg |
150-250kg |
40%-45% |
type 230 |
4-6minutes |
2-6kg |
350-500kg |
||
type 320 |
8-10minutes |
5-14kg |
700-1000kg |
||
|
walnut meat
|
type 180 |
5-8 minutes |
1-2.5kg |
150-250kg |
50%-60% |
type 230 |
4-6minutes |
2-6kg |
350-500kg |
||
type 320 |
8-10minutes |
5-14kg |
700-1000kg |
||
|
pine nut |
type 180 |
5-8 minutes |
1-2.5kg |
150-250kg |
45%-60% |
type 230 |
4-6minutes |
2-7kg |
350-500kg |
||
type 320 |
8-10minutes |
5-14kg |
700-1000kg |
1 |
Models |
6YZ-180 |
6YZ-230 |
6YZ-320 |
2 |
External Dimension(mm) |
800*650*1100 |
900*750*1400 |
1100*1000*1500 |
3 |
Weight of machine |
530kg |
880kg |
1320kg |
4 |
Nominal pressure |
1600KN |
2200KN |
3000KN |
5 |
Max pressurefor working |
55Mpa |
55Mpa |
55Mpa |
6 |
Power of electricity heating circle |
1KW |
1KW |
2KW |
7 |
Controlling temperature of heating circle |
70-100°C |
70-100°C |
70-100°C |
8 |
Sesame weight/time |
1-3kg |
2-7kg |
5-15kg |
9 |
Motor types and power(kw) |
Y901-4-1.5kw |
Y901-4-1.5kw |
Y901-4-1.5kw |
Our other nuts machine :
https://img13.fr-trading.com/
1. Are you manufacturer?
Yes, we are. Welcome to visit our factory.
2. Can you change the machine voltage as our request?
Yes, we can.
3. How about your after-sales service?
Our engineer can go outside to install and train your workers to operate the full machine line.
4. Warranty time of your machine?
1 year except for consumable spare parts.
5. How about delivery time of your machine?
Generally it needs 5-7 days for big machines or producing line,and it will be much longer but within our negotiated delivery time.
