Good Quality Stainless Steel Chocolate Bean Sugar Coating Machine

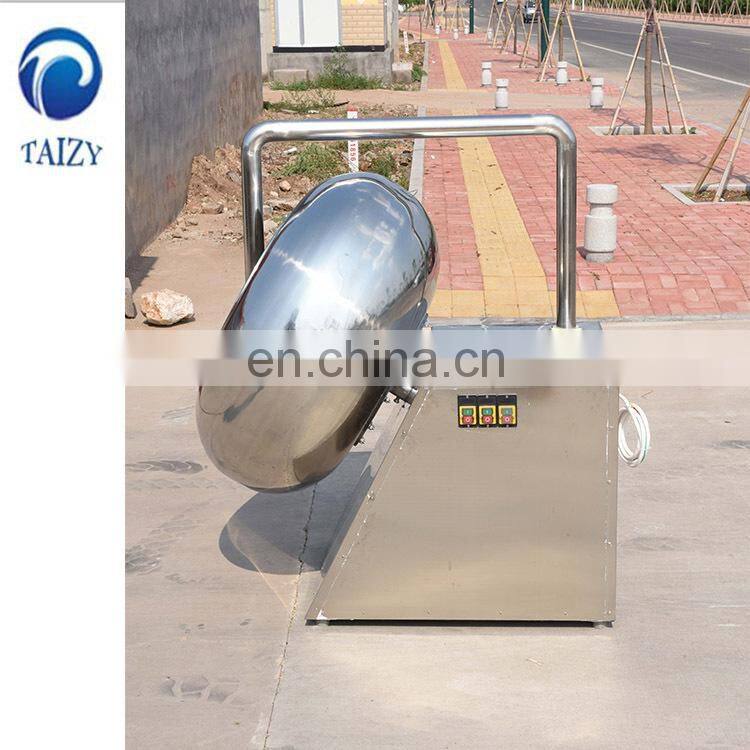

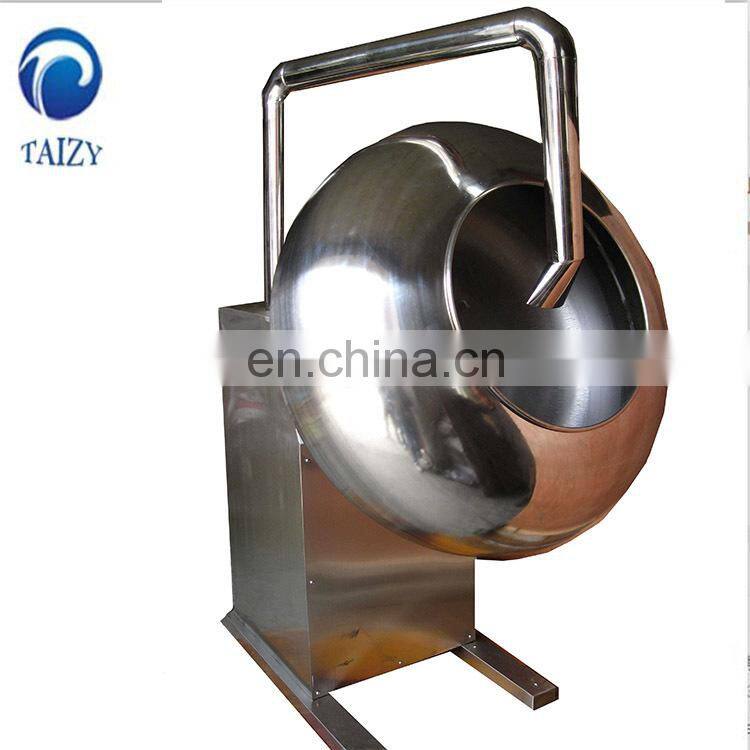

Good Quality Stainless Steel Chocolate Bean Sugar Coating Machine photo-1

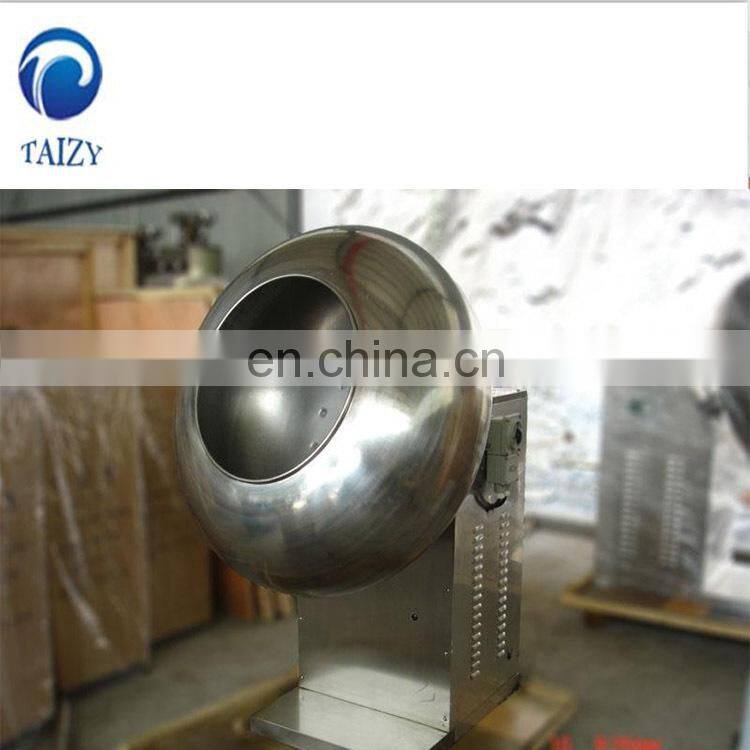

Good Quality Stainless Steel Chocolate Bean Sugar Coating Machine photo-2

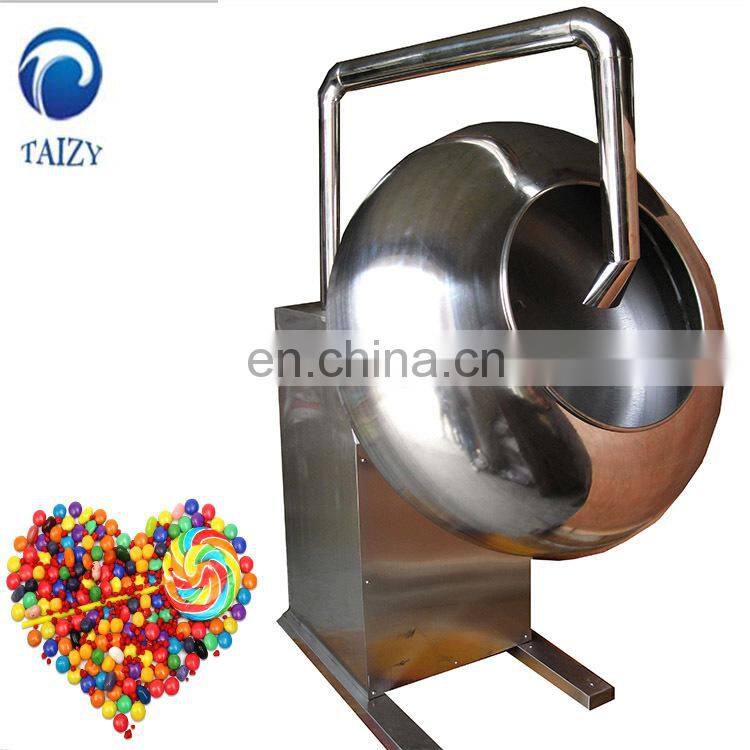

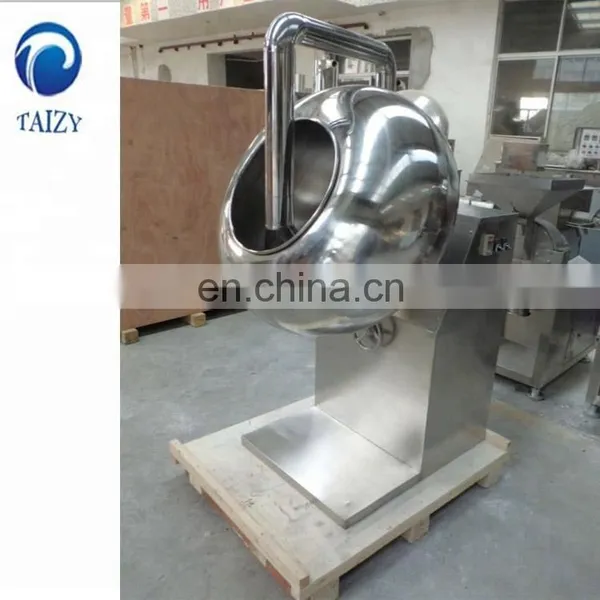

Good Quality Stainless Steel Chocolate Bean Sugar Coating Machine photo-3

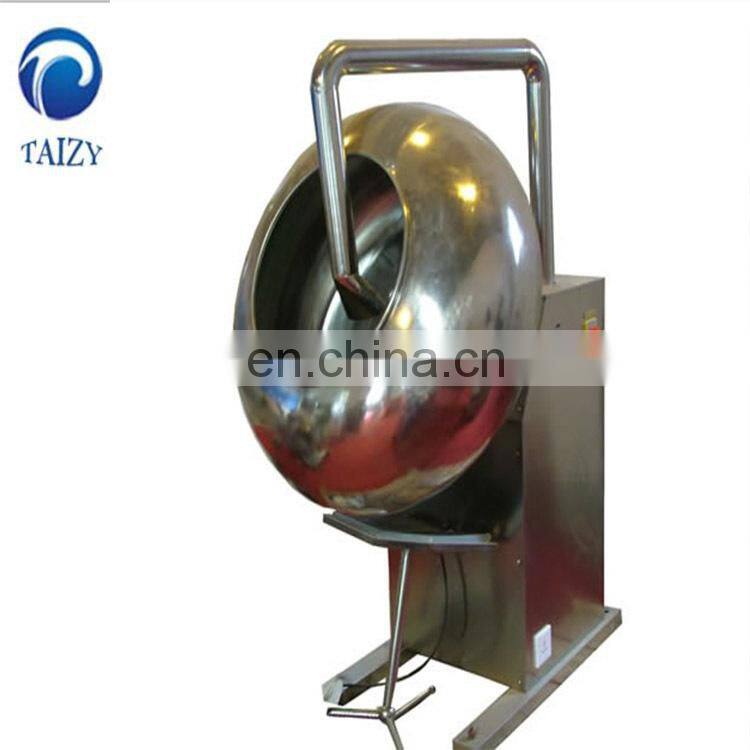

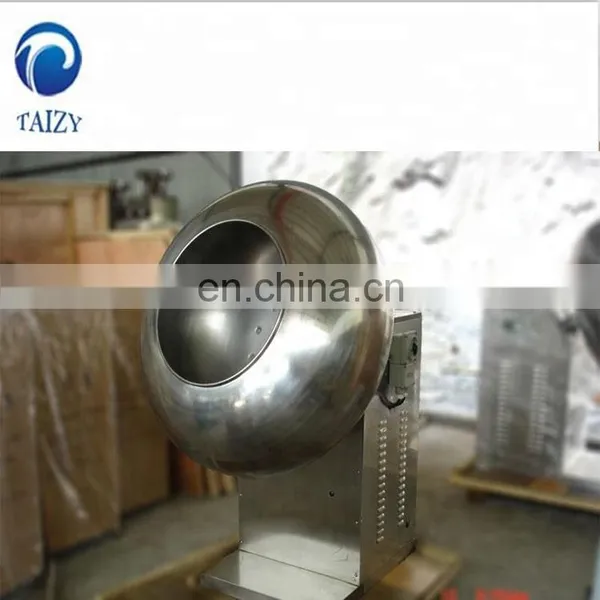

Good Quality Stainless Steel Chocolate Bean Sugar Coating Machine photo-4

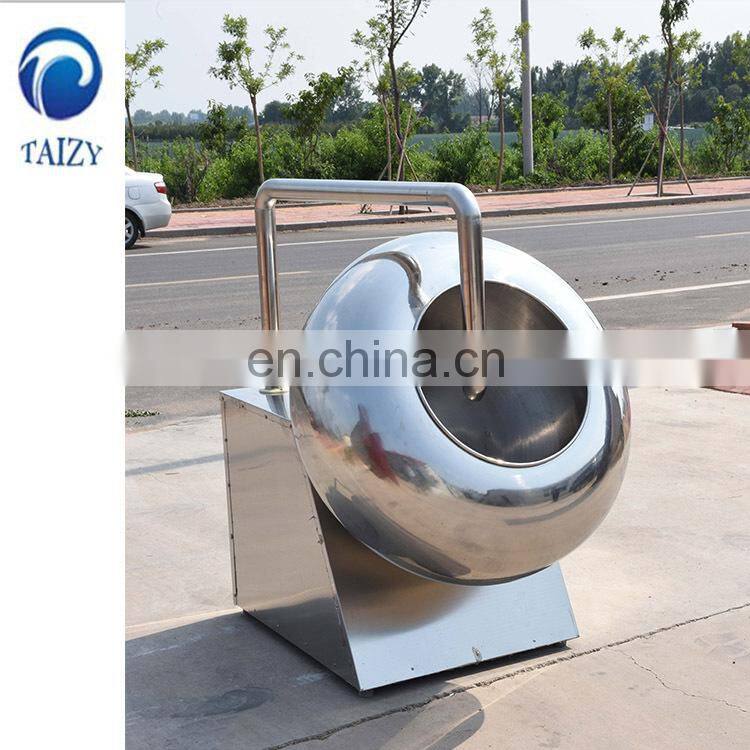

Good Quality Stainless Steel Chocolate Bean Sugar Coating Machine photo-5

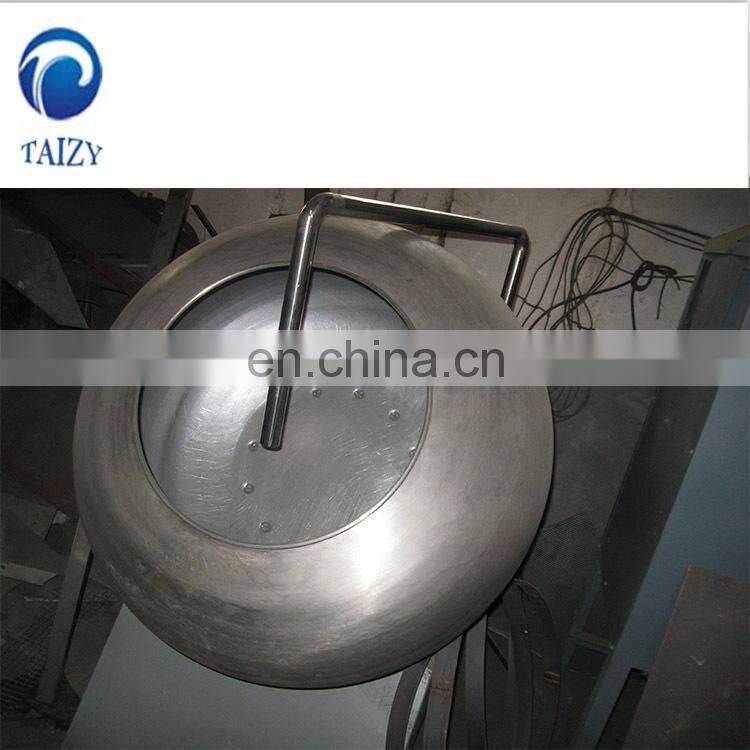

Good Quality Stainless Steel Chocolate Bean Sugar Coating Machine photo-6
US$ 1,200 - 1,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Taizy
Place of Origin:
Henan, China
Model Number:
TZ-400
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao port
Delivery Detail:
Delivery time depends on order quantity.
Brand Name Taizy
Place of Origin Henan, China
Model Number TZ-400
After-sales Service Provided No overseas service provided
Warranty 1 Year
Weight 38kg
Dimension(L*W*H) 550*400*800mm
Voltage 220V/380V
Certification ISO
Application CANDY
Condition New
Power(W) 0.75kw

                                                 sugar coating machine

Application of chewing gums sugar coating machine:

chewing gums sugar coating machine is mainly suitable for pills in pharmaceutical industry, tablets of sugar production, can also be used in food, light industry, chemical industry, the spherical or rolled granular material, mixing and polishing.For example: chocolate on polishing, peanuts, sugar, spices, pearl powder round, rolled desiccant, production of chemical packing, aluminum hydroxide, alumina ball, ceramic ball molecular sieve, catalyst and so on.

Structural features of chewing gums sugar coating machine:

chewing gums sugar coating machine is consists of fuselage, worm gear box body, sugar pot, heating device, fan,electric equipment and other main parts, it drive worm gear and worm, turns the sugar pot by the motor through v-belt
, under the action of centrifugal force, the material is up and down for friction in the pot, to mix icing, pelletizing and lighting effects.

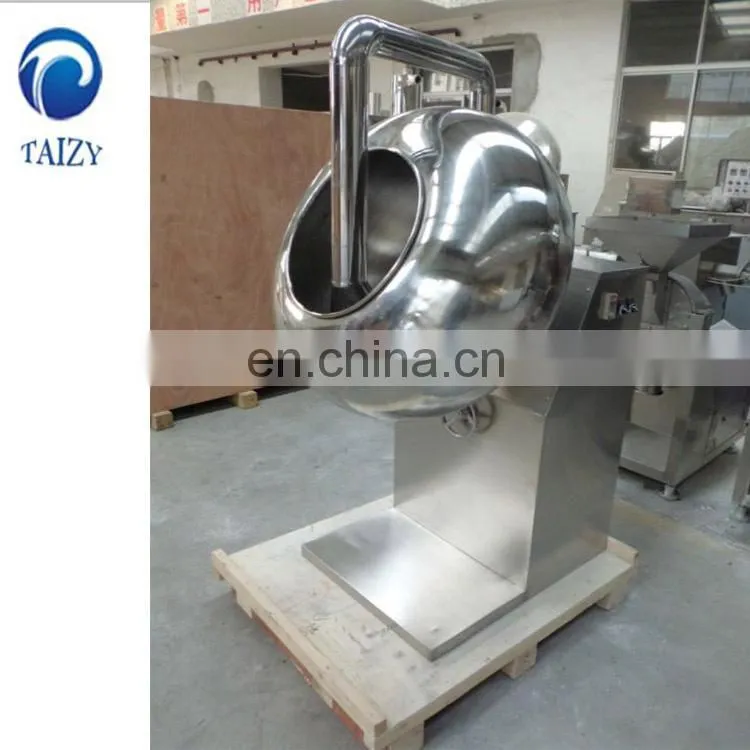

Good quality Stainless steel chocolate bean sugar coating machineGood quality Stainless steel chocolate bean sugar coating machine

Operating procedures of chewing gums sugar coating machine:

1. Each part of the machine must be carefully checked whether fasteners loose before operation.

2. clean the scrub inside and outside of sugar pot .

3. Start the main motor, the machine idle running for 2 minutes, in order to judge whether trouble-free.

4. press the main motor button after feeding, according to the situation of sugar crystal blower need to press the button again, turn on the heating wire switch at the same time.

Paramater:

Model

TZ-400

TZ-600

TZ-800

TZ-1000

Capacity

30kg/h

60kg/h

100kg/h

150kg/h

Power

0.75kw

0.75kw

1.1kw

1.1kw

Diameter

400mm

600mm

800mm

1000mm

Size

550*400*800mm

800*600*900mm

1000*800*1430mm

1100*1000*1560mm

Weight

38kg

85kg

205kg

220kg

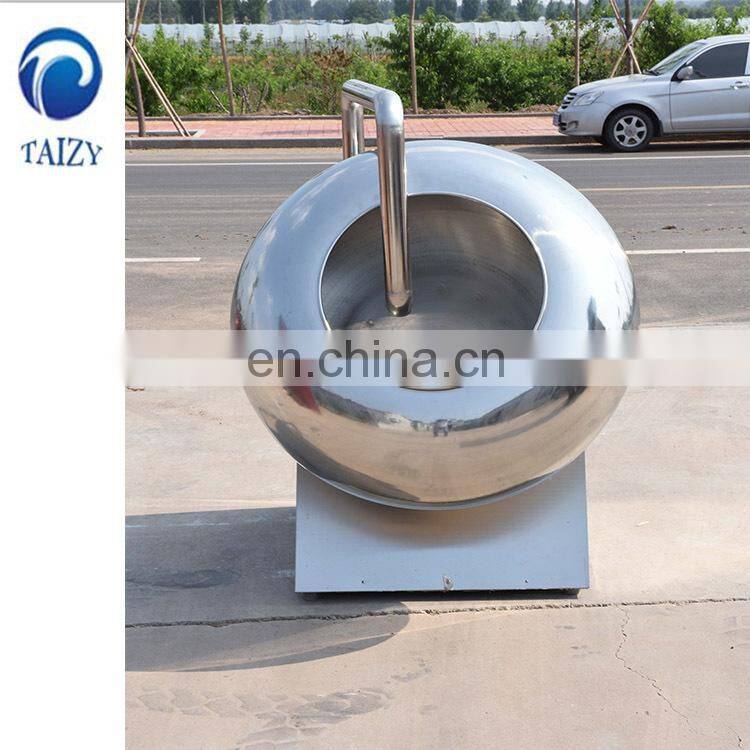

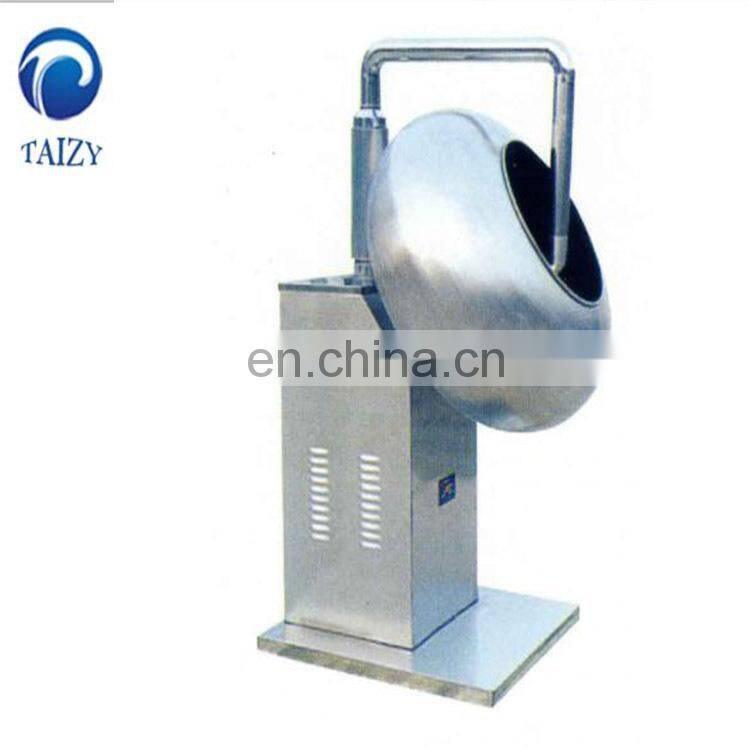

Good quality Stainless steel chocolate bean sugar coating machineGood quality Stainless steel chocolate bean sugar coating machineGood quality Stainless steel chocolate bean sugar coating machineGood quality Stainless steel chocolate bean sugar coating machineGood quality Stainless steel chocolate bean sugar coating machineGood quality Stainless steel chocolate bean sugar coating machineGood quality Stainless steel chocolate bean sugar coating machineGood quality Stainless steel chocolate bean sugar coating machineGood quality Stainless steel chocolate bean sugar coating machine Photo show
