Charcoal Ball bag |Charcoal Ball Bagging Machine_BBQ BAG_Shisha charcoal Bags
Charcoal Ball bag |Charcoal Ball Bagging Machine_BBQ BAG_Shisha charcoal Bags
Brief introduction:
(1). Production materials type: such as coal powder, charcoal powder, coconut shell
charcoal powder etc.
(2). Materials size required before feeding charcoal briquette machine: less than 3mm.
If the size is larger than 3mm, it is necessary to crush them into smaller size for briquetting.
(3). Moisture content: less than 15%.
(4).Shape of final product:The briquette shape can be round type,pillow shape,oval type,
bread shape and so on, which is widely used for :BBQ,barbecue,boiler,heating,metallurgy,
chemical,etc.
Remark:You can buy more roller with the machine,so the working time of charcoal briquette
machine is longer than before.
Features:

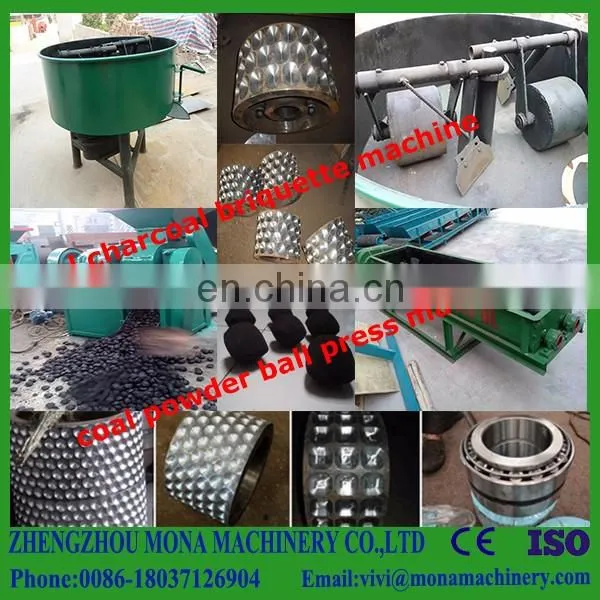

The roller is made by hard materials with good wear resistance and long life time.
The service life of wearing parts is up to 4000 hours.
The machines electricity coal reduce by 60%.
The machine is easy to operate and maintain.
The molding materials are energy saving, easy to tansport and higher utilization of waste.
The final products are smokeless, non-toxic, none peculiar and environmental protection.
The end outlet shape of products can be oval, round, square, ball egg-shaped and pillow shaped.
Working principle:

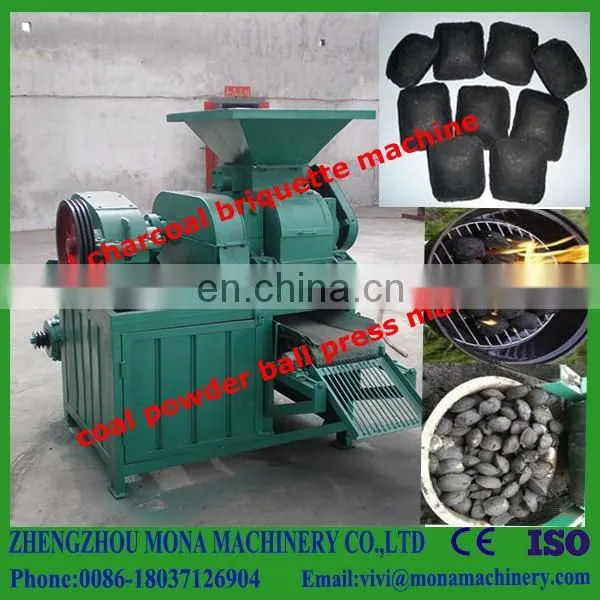

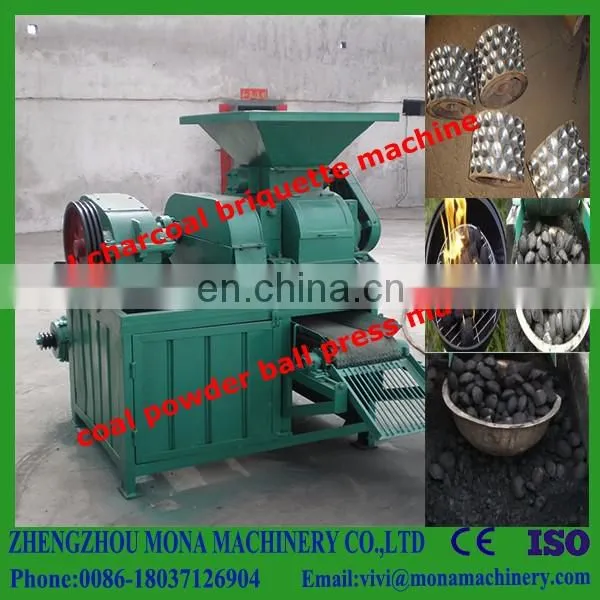

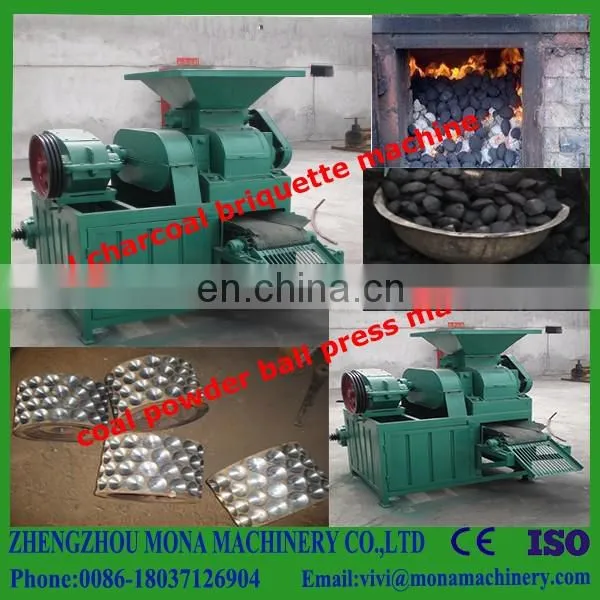

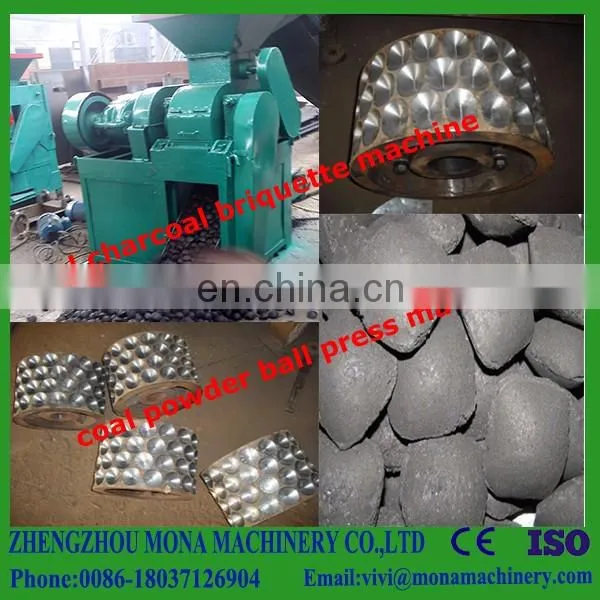

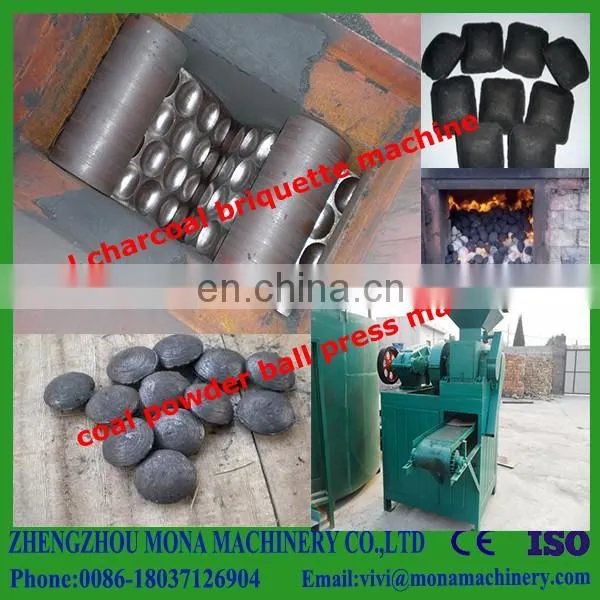

1. This charcoal ball press machine can press charcoal powder, charcoal dust, coal
powder, etc into round ball, oval ball or pillow-shaped charcoal.
2. This series of ball press machine will pass the power on to the two pressure roller through the reducer. The two sides and roll rotation, in both the rotating roll.
3. Natural materials to enter the ball roll mode, with the roll rotation, material pressure on a small become larger. When the material to the two rollers rotating
line contact point, the pressure of materials has reached the peak. Tremendous
pressure in the role of line, the materials becomes a finished product from the powder ball.
Main parameter of charcoal/coal ball extruder machine
Model |
MN-290 |
MN-360 |
MN-450 |
MN-600 |
Capacity |
1-2t/h for coal |
3-4t/h for coal |
5-8t/h |
10-12t/h |
0.5t/h for charcoal |
1t/h for charcoal |
|||
Width of roller |
200mm |
250mm |
300mm |
336mm |
Dia of roller |
290 |
360 |
450 |
600 |
Power |
5.5kw |
7.5kw |
22kw |
30kw |
Dimension(m) |
1.2*1.15*1.6 |
1.3*1.15*2.05 |
1.45*1.55*1.85 |
2.35*2.15*2.7 |
Weight |
1t |
1.5t |
4.5t |
5.3t |
