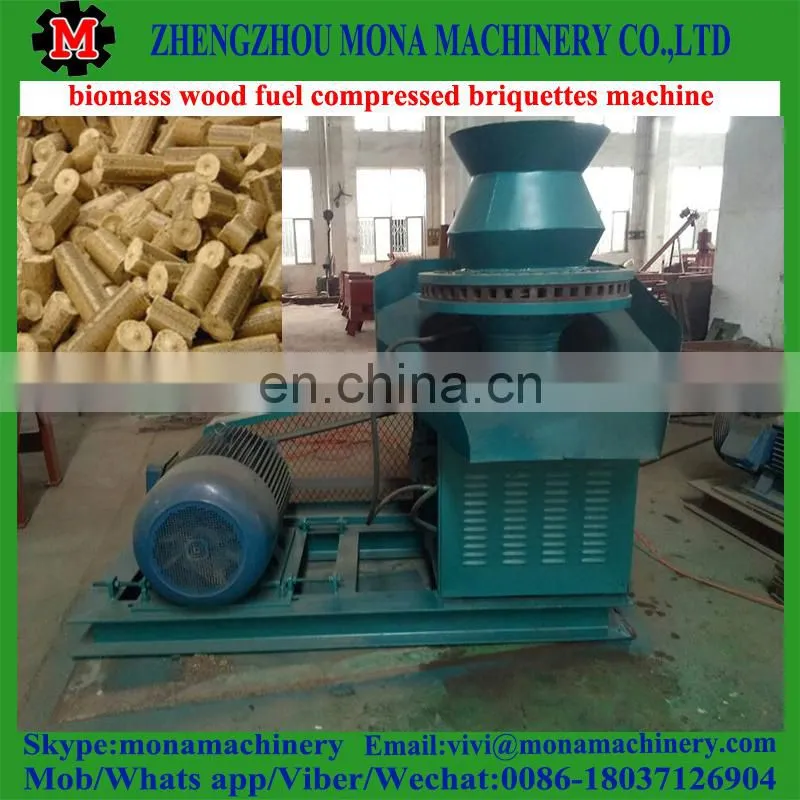

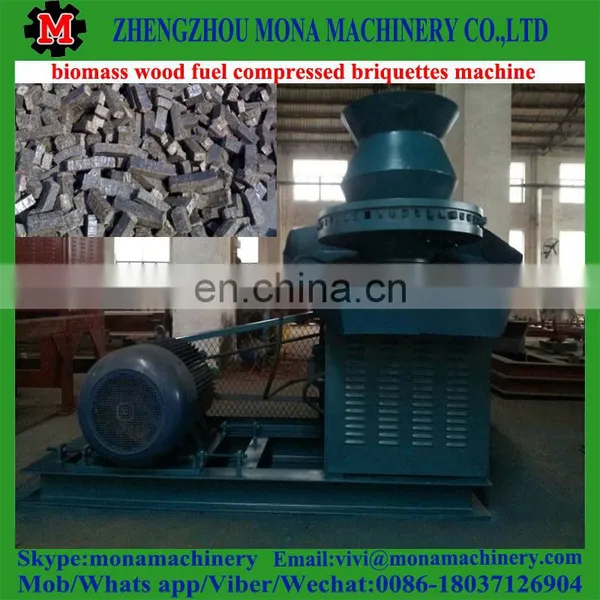

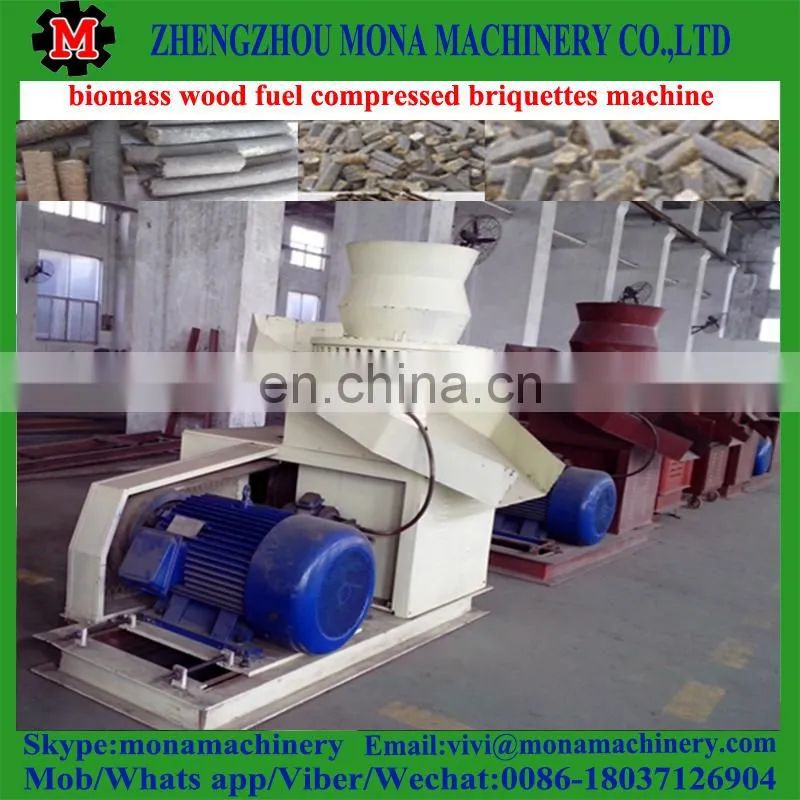

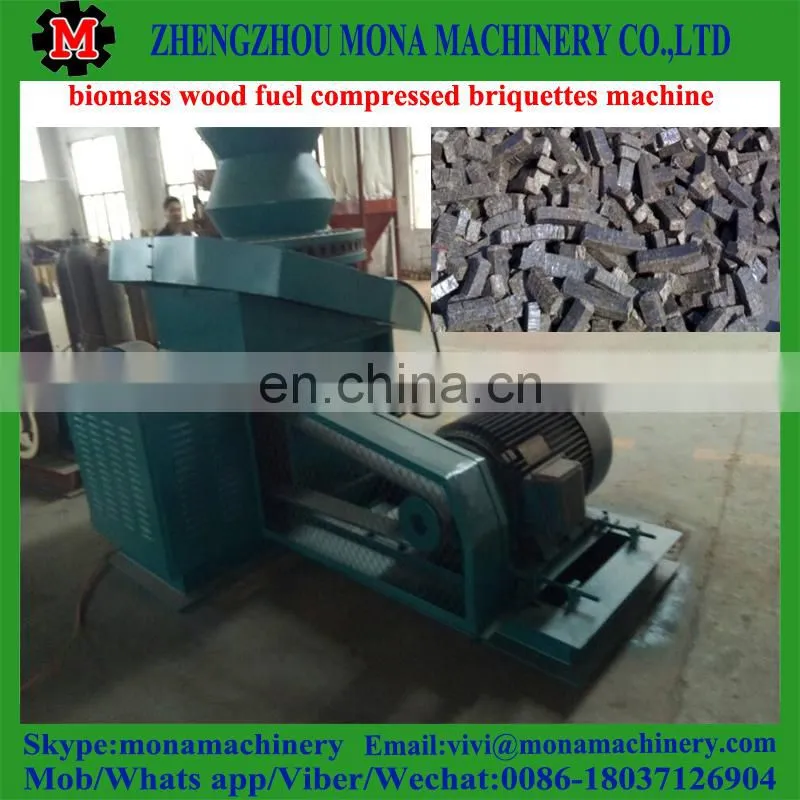

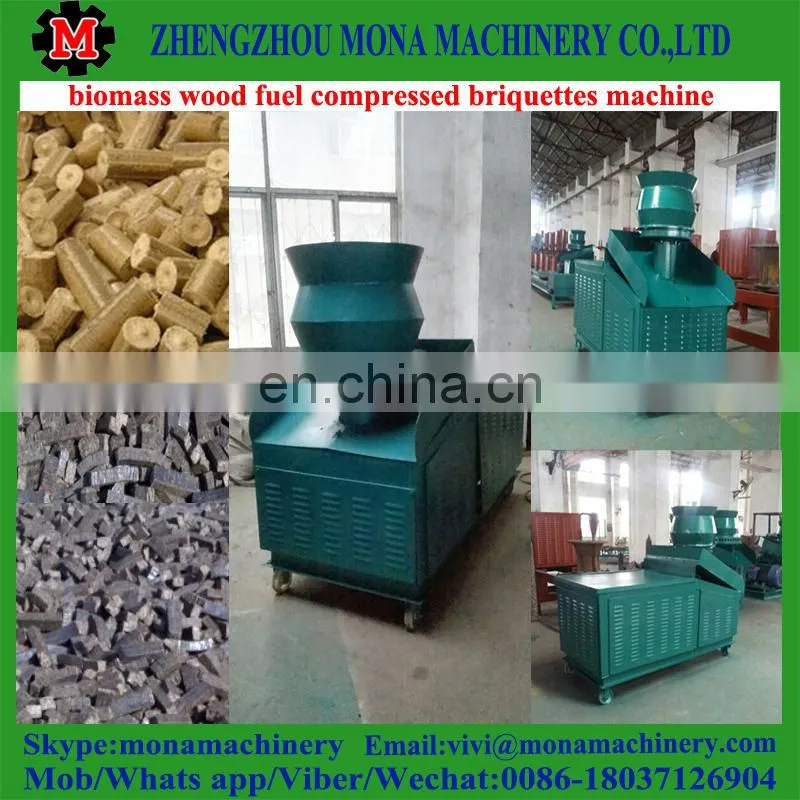

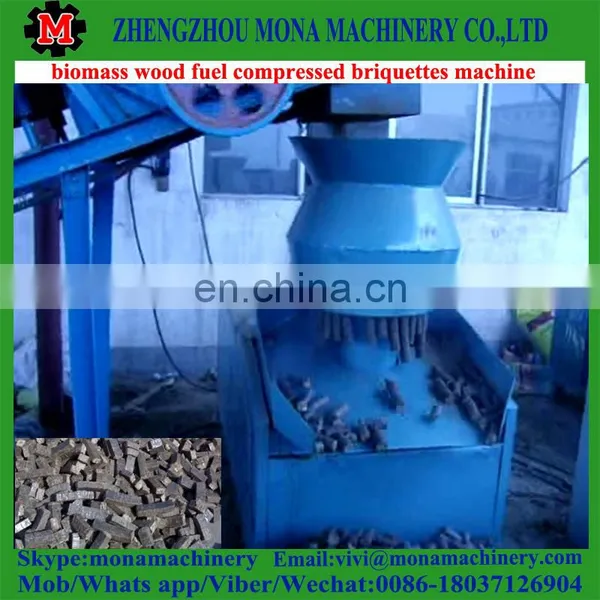

biomass/stalk/straw/wood waste/ fuel briquette press machine
biomass/stalk/straw/wood waste/ fuel briquette press machine
Working principle of biomass wood fuel compressed briquettes machine

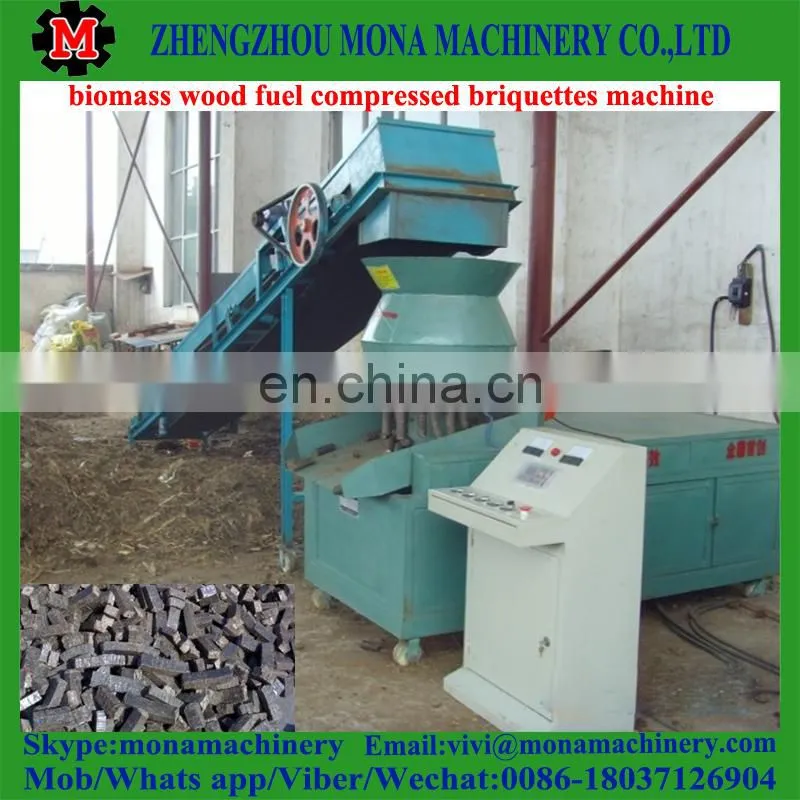

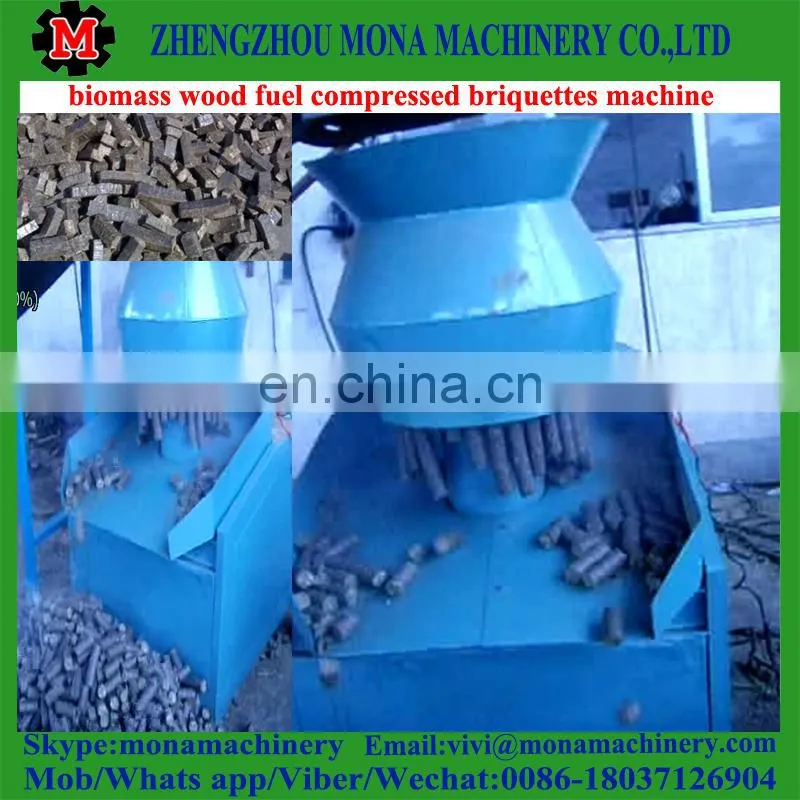

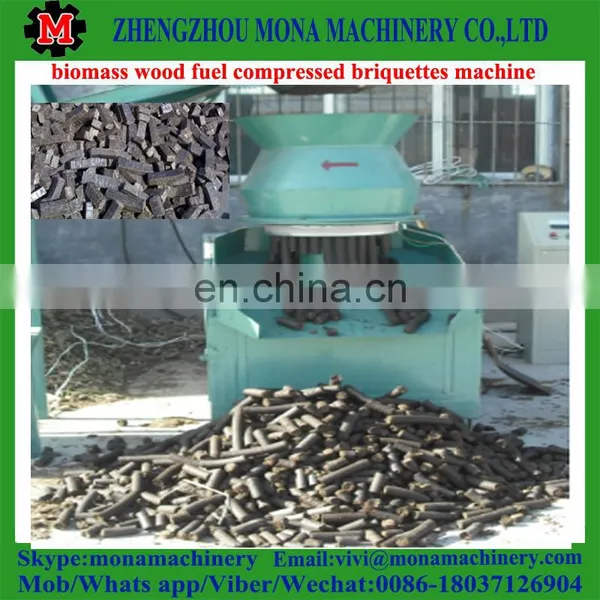

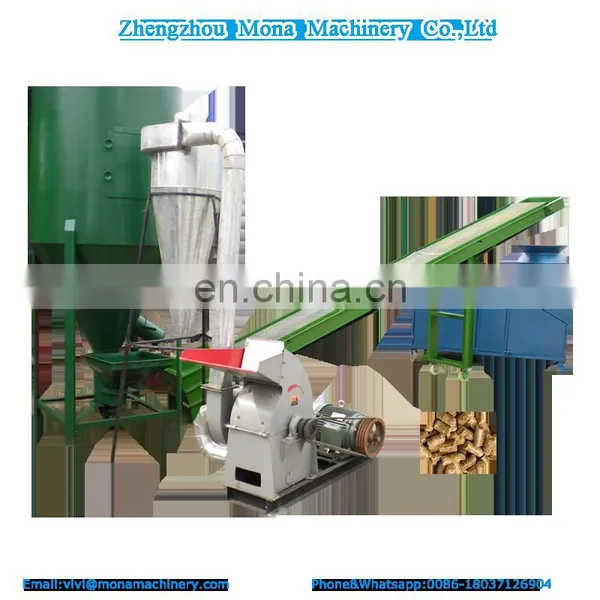

First please shred the stalk and other biomass material to control it’s length below 50mm and moisture within 10-30%. Then transported to feeder through conveyor, rollers runned by main shaft to press the material comes out from the mould hole to form and drop off by its weight.
Features of biomass wood fuel compressed briquettes machine
high automation and capacity, low price and electricity consumption.
Easy to operate and movable.
Also can be run by diesel engine if no electricity.
Strong application: apply for various biomass raw material which can be from powder to 60mm length and moisture is 5-30%.
Electricity heating function:full automatic electricity heating equipments and can adjust the humidity to solve the hard problems of blocking and not forming.
Roller automatic adjustment function: by using the principle of bi-directional thrust bearing rotation automatically adjust the pressure Angle, make the material not crowded, not boring machine, keep stable discharging molding.
Easy operation and convenient to use:high automation, low labor and just needs 3persons.
Long life millstone:The mould adopts the special steel and special wear-resistant materials research, three years without replacement.
Technical parameter of biomass wood fuel compressed briquettes machine
Model |
MNBF-1000 |
MNBF-1500 |
MNBF-2000 |
Power |
15KW |
22KW |
30KW |
Output |
700-900kg/h |
1200-2000kg/h |
2200-3000kg/h |
Briquette size |
32×32mm |
32×32mm |
33×33mm |
Briquette density |
0.8-1.4g/cm³ |
0.8-1.4g/cm³ |
0.8-1.4g/cm³ |
Material moisture |
10-25% |
10-30% |
10-30% |
Material length |
3---50mm |
3---60mm |
3---60mm |
Machine size |
2000×800×1400mm |
2000×900×1660mm |
2500×1100×2000mm |
Machine weight |
1.2T |
1.8T |
2.2T |
