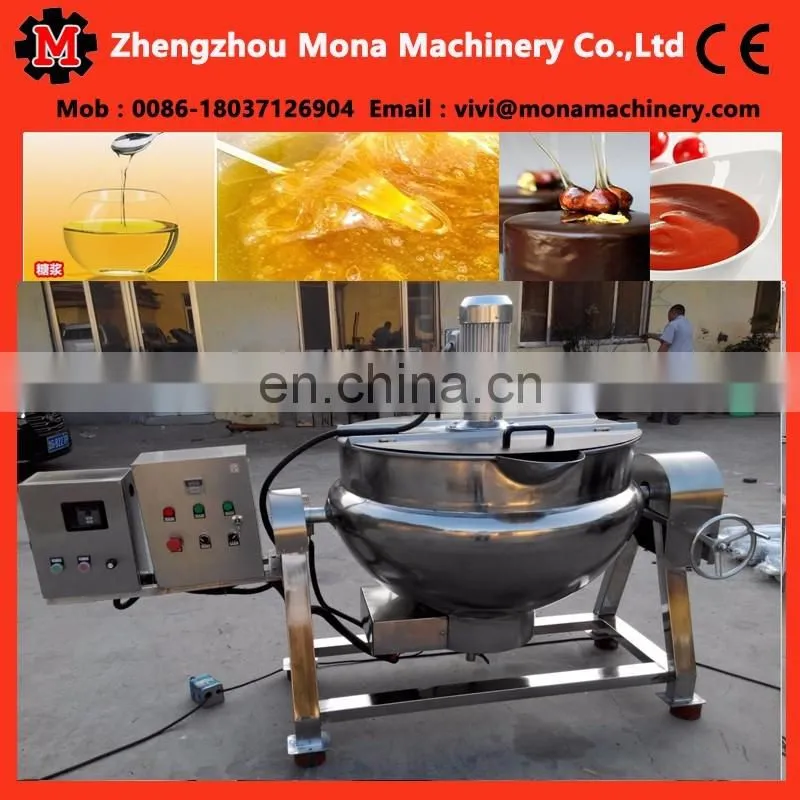

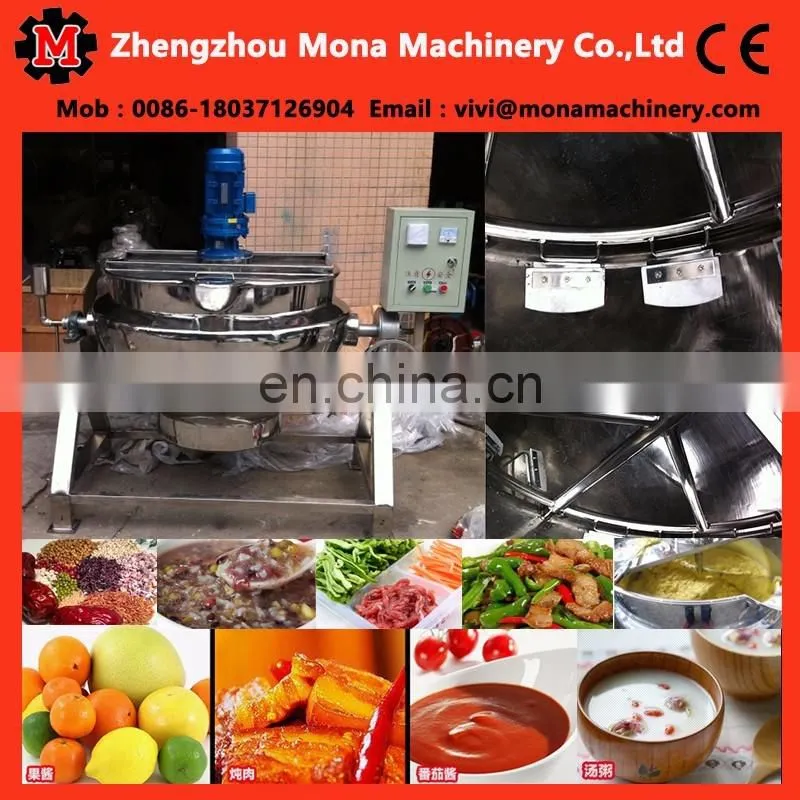

Jacketed Cooking Kettle With Agitator/Gas heating sugar cooker with good quality
ction
Stainless steel jacketed kettle is used widely for food,candy,meat,pharmacy and chemical industry to cook and boil.It has 2 kinds of heating means: by steam or electrical.

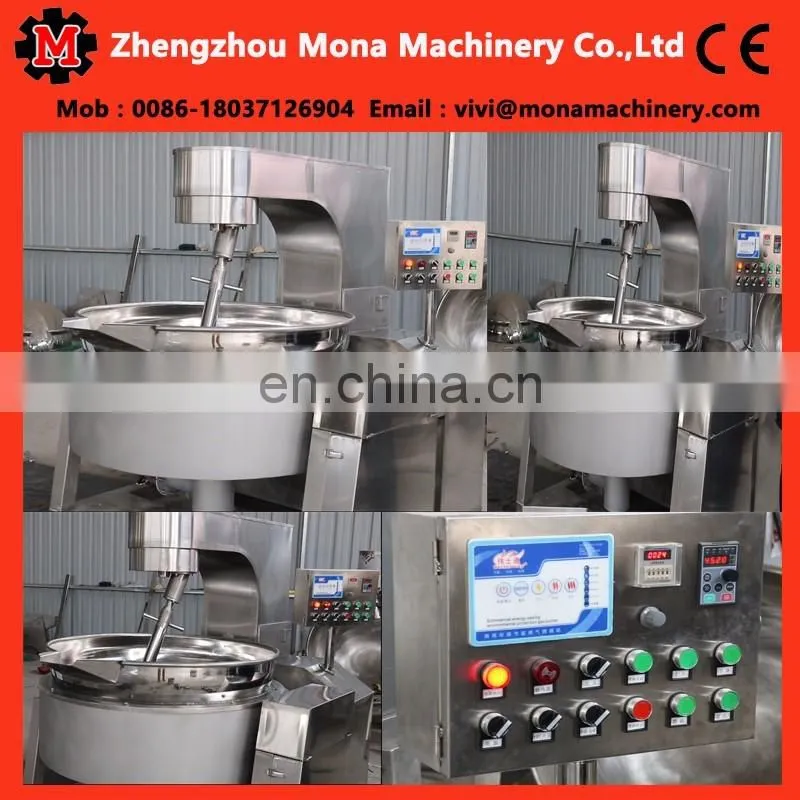

We can add the agitator and cover according to your needs.

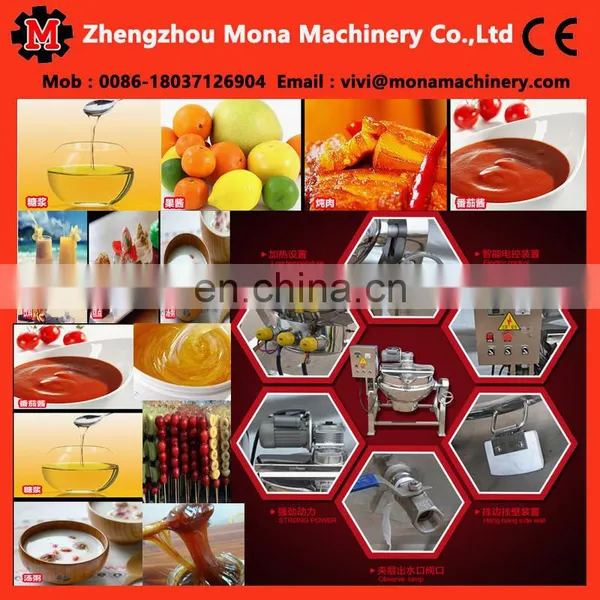

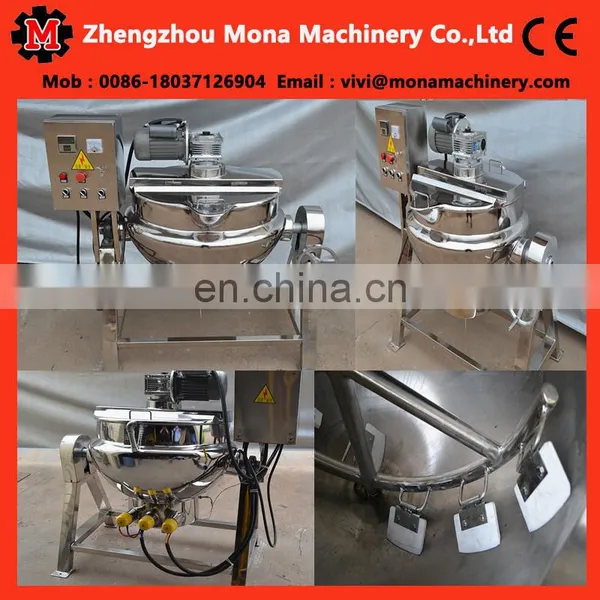

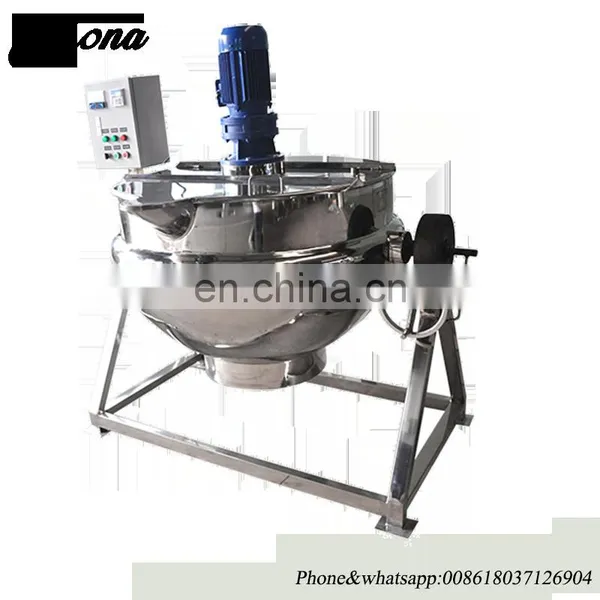

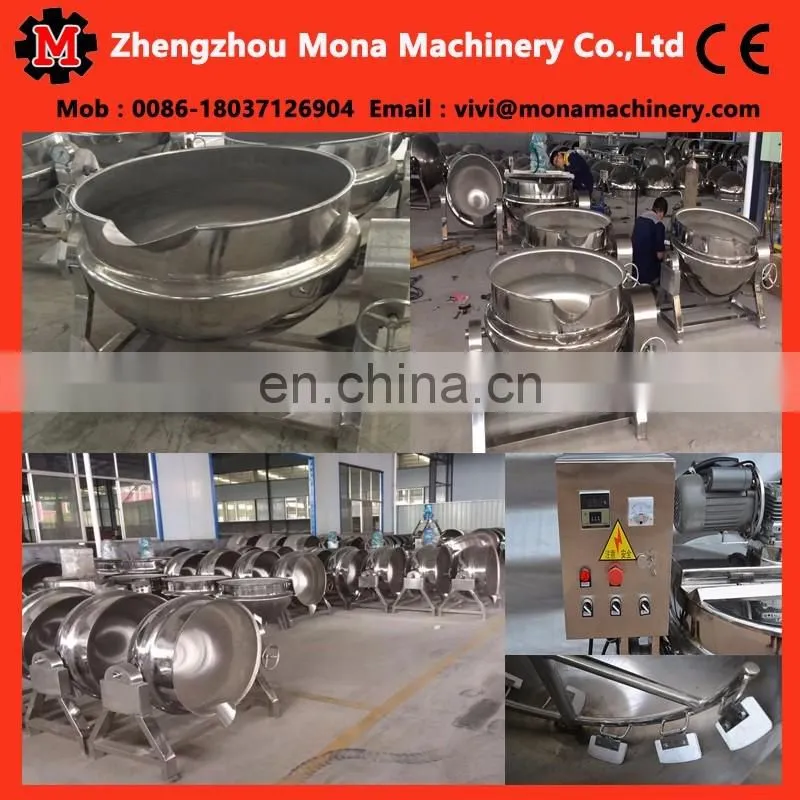

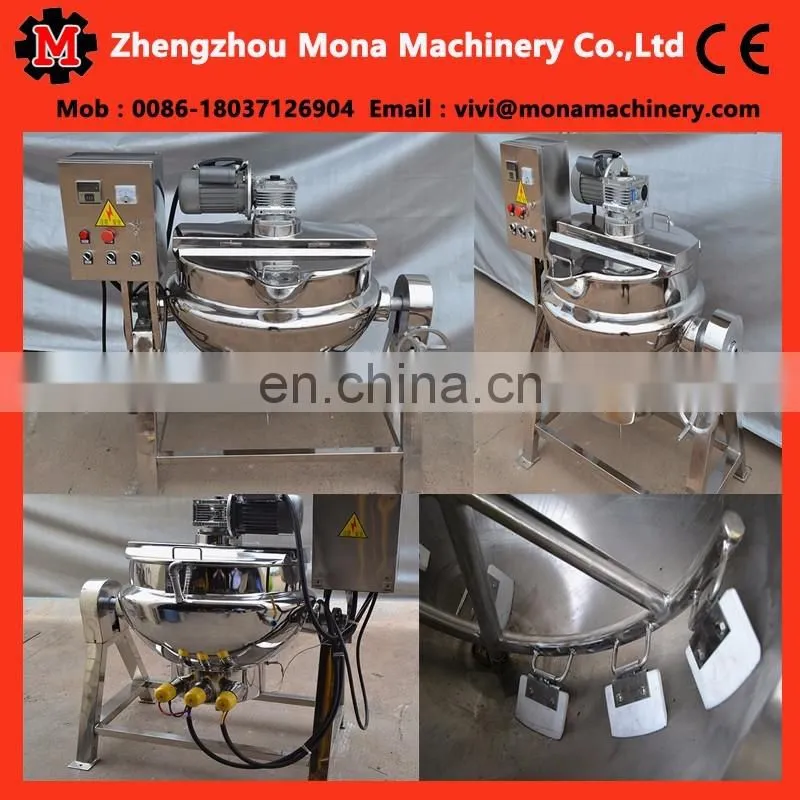

This Jacketed Boiling Kettle consists of boiler body, stir device,tilting system,worm wheel,worm rod and the boiler body can be rotated within 90 degree.
All the materials in contact with food is made of stainless steel,has the feature of resistant to corrosion which is in accordance with GMP Standard.
We supply all types and sizes of kettles to various processing industries. Some of these processing industries include food, beverage, dairy, chemical, pharmaceutical, nutraceutical, fruit & vegetable, sauce and dressing, cosmetics, food protein, lotions, candy and many other processing industries.
We can offer all types and sizes of processing kettles, depending on your needs, such as steam jacketed, double motion agitated, triple motion agitated, scrape surface agitated, self contained, gas-fired, electrically heated, tilt-type, vacuum type, high shear agitated, single motion agitated, pressure, cooking, cooker/cooler and all other types.
2.Usage:

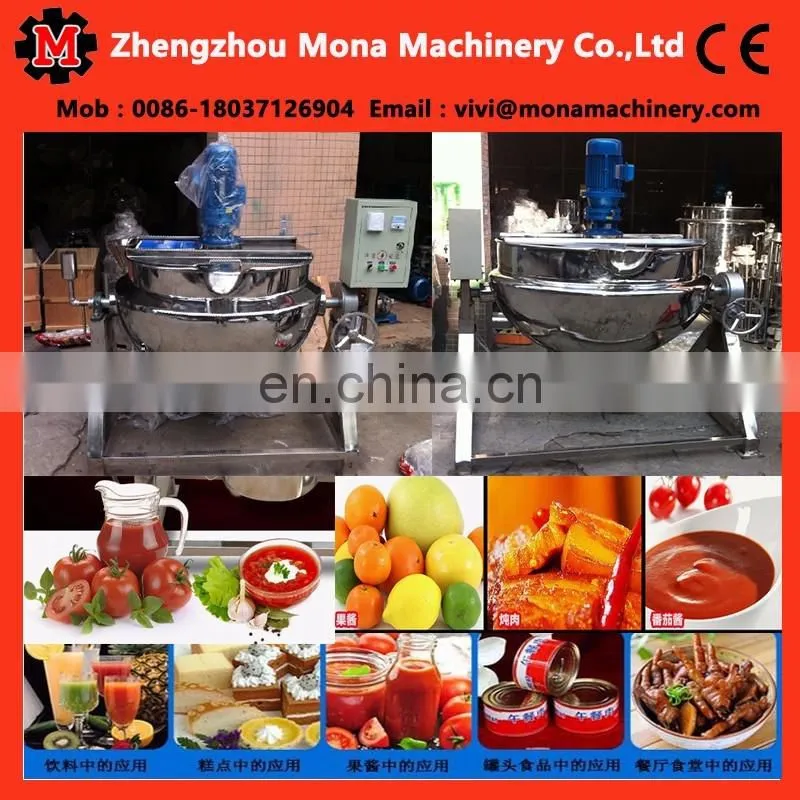

This equipment is equipped with stirring and concentrate device, which is used widely for pharmacy, food, chemical industry.
The kettle take the steam as heating source, has the feature of large heating surface area, high heat effect, heating evenly, heating up quickly and temperature easily controlled. The tilting jacketed kettle used in any food service establishment, it is ideal for producing sauces, pasta, beverage, can processing and widely used in pharmaceutical and chemical industries.
3.Details parameters:
Metric volume(L) |
50 |
100 |
200 |
300 |
400 |
500 |
600 |
800 |
1000 |
Caliber (mm) |
Φ600 |
Φ700 |
Φ800 |
Φ900 |
Φ1000 |
Φ1100 |
Φ1200 |
Φ1300 |
Φ1400 |
Depth of pot(mm) |
400 |
450 |
530 |
630 |
680 |
730 |
780 |
830 |
900 |
Heating area(m2) |
0.45 |
0.58 |
1.12 |
1.42 |
1.75 |
2 |
2.3 |
3.2 |
3.9 |
Electric power(kw) |
9 |
9 |
15 |
18 |
18 |
24 |
24 |
27 |
30 |
Heat transfer oil QTY. (L) |
30 |
36 |
45 |
60 |
70 |
80 |
100 |
200 |
250 |
Working pressure |
≤0.09Mpa(can be adapted according to customer requirement) |
||||||||
Mixing speed |
36 r/min(can be adapted according to customer requirement) |
||||||||
Mixing power(Kw) |
0.55 |
0.55 |
0.75 |
1.1 |
1.1 |
1.5 |
1.5 |
2.2 |
2.2 |
