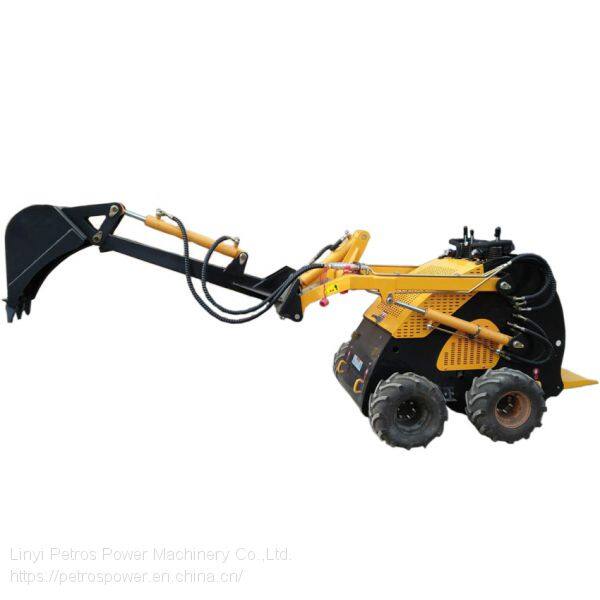

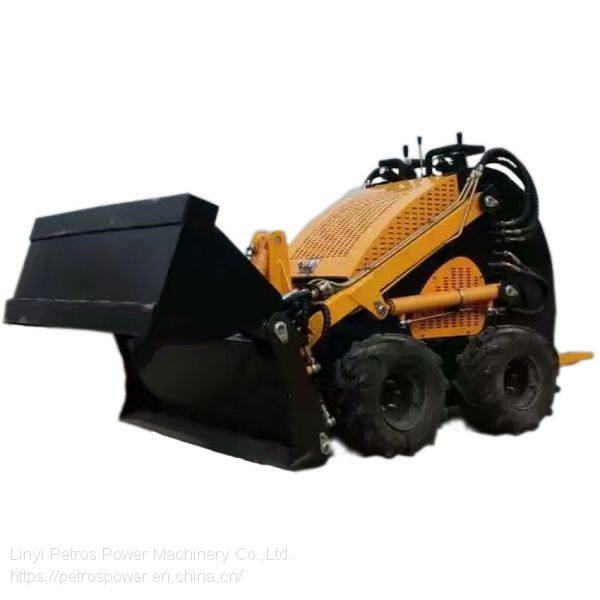

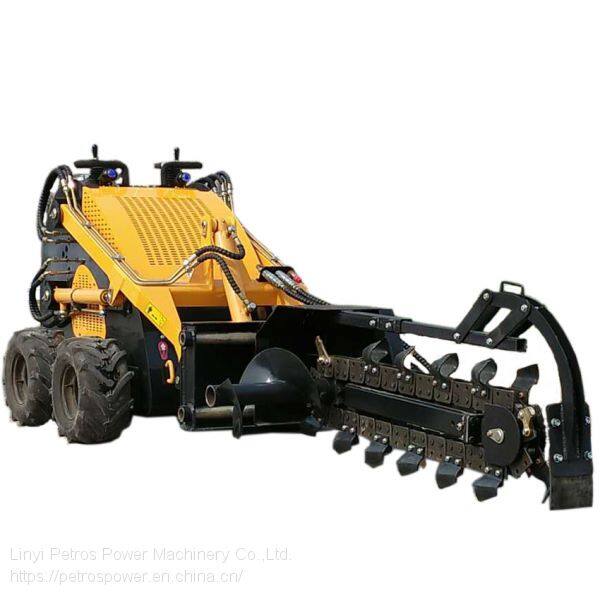

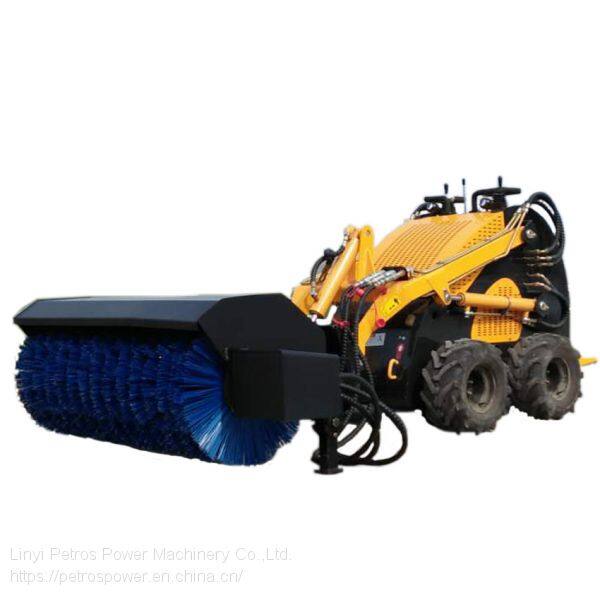

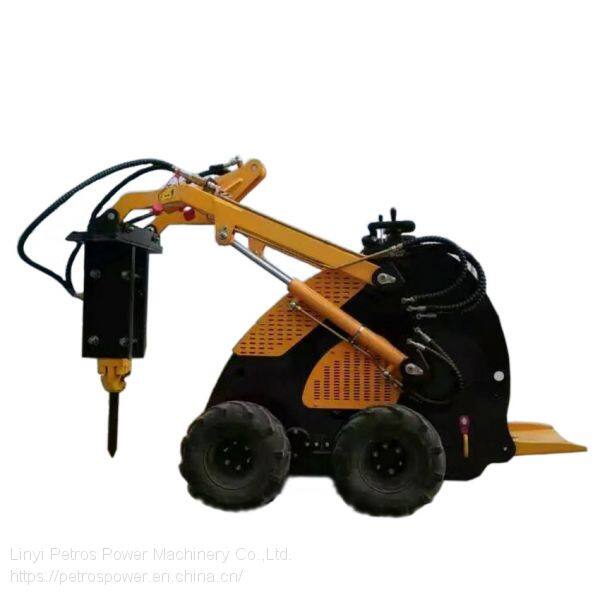

Factory Supply JL300 Small Skid Steer Loader

US$ 10000 - 11000 MOQ: 1 Set

Key Specifications

Place of Origin:

China

Type:

Skid Steer Loader

After-sales Service Provided:

Engineers available to service machinery overseas

Linyi Petros Power Machinery Co.,Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

30 days

Place of Origin China

Type Skid Steer Loader

After-sales Service Provided Engineers available to service machinery overseas

Warranty Spare parts support

Condition New

Moving Type Wheel Loader

Rated Load 200--300kg

JL300 Main Technical Specifications

Model						JL300
Engine Model B＆S			Rated Power（KW）			23HP
			Rotating speed（rpm）			3600
noise (Db)						≦95
Hydraulic system		System Pressure（Mpa）				17
		Working time（s）				lift		tipping bucket	landing
						4.22		1.32	3.28
Performance parameters								metric
	Rated Load							200--300kg
	Bucket Capacity							0.15 m3
	The most heavily lift							395 kg
	Max.Travel Speed							0-5.5 km./h
	Operating Weight			Solid tyres bodywork				860 kg
				Ordinary tire body				860 kg
				Widened tire body				850 kg
				Caterpillar vehicle				900kg
Tire model				Solid tyres				16*6-8
				Widened tire				KT-302 18*9.5-8 6p/TL
				Herringbone engineering births				18*6.5-8
rim				Solid tyres				4.33R-8
				Widened tire				8*6.5
Fuel tank capacity				25 L
Oil tank capacity				27 L
Engine displacement				627 ml
Bucket breakout force				550Kg	Tipping load		325kg

（Metric unit）Main dimensions：

Item
Item	Caterpillar vehicles	Solid tyres	Wide platform	Herringbone engineering births
The ing highly	2184mm	2115 mm	2155 mm	2194mm
Max. pin shaft height	1975mm	1856 mm	1896 mm	1985 mm
Biggest unloading height	1520 mm	1600 mm	1500 mm	1600 mm
High unloading distance	405mm	388 mm	348 mm	350mm
Bucket angular	68°	55°	55°	68°
Bucket unloading Angle	33°	30°	30°	33°
Angle of departure	10°	8°	12°	11°
Accept dou Angle	35°	25°	25°	35°
Total height	1220 mm	1205 mm	1245 mm	1265 mm
From ground height	105 mm	90 mm	130 mm	118 mm
wheelbase	630 mm	636 mm	636 mm	630mm
No bucket length	1722 mm	1752 mm	1752 mm	1752 mm
Total wide	1060 mm	1033 mm	1160mm	1150 mm
bucket width	980 mm	980 mm	980 mm	980 mm
Overall length with bucket	2242 mm	2206 mm	2206 mm	2242 mm
Front turning radius	1292 mm	1307 mm	1307 mm	1292 mm
