Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Compactor > Factory Supply HS600 Road Roller With 4 Stroke Diesel Engine

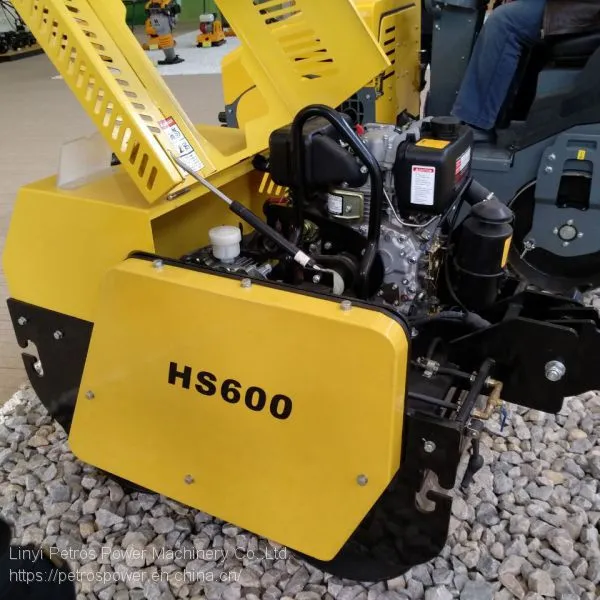

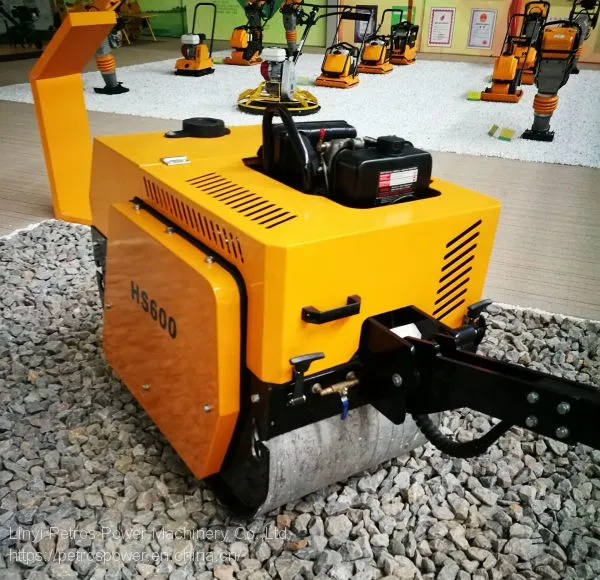

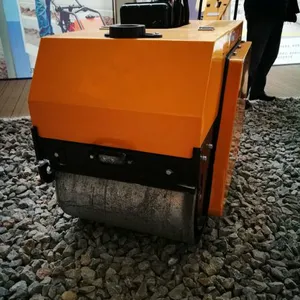

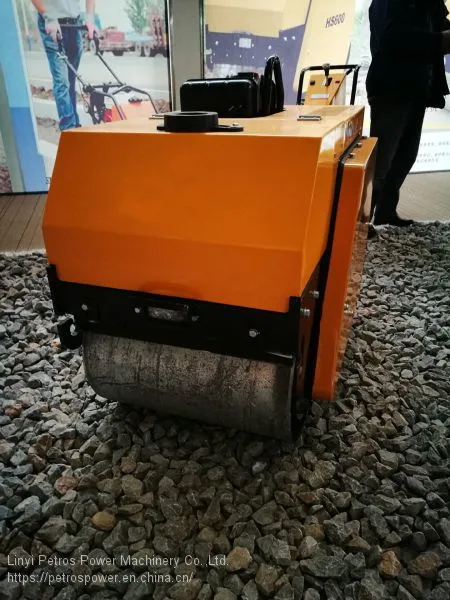

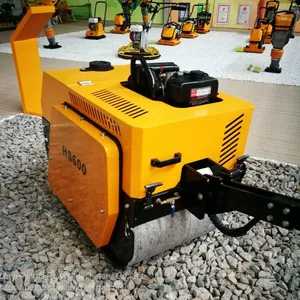

Factory Supply HS600 Road Roller With 4 Stroke Diesel Engine
US$ 4000 - 4100
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Type:
Double Drum Roller
Certification:
Spare parts support
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
30 days
Related Products
-
Factory Supply HCR70A Gasoline Tamping Rammer With Honda GX100 EngineUS$ 1100 - 1200MOQ: 1 Set -
Factory Supply JL300 Small Skid Steer LoaderUS$ 10000 - 11000MOQ: 1 Set
-
Factory Supply Atlas Copco Type ND40 II Portable 2 Stroke Gas Engine Railway Ballast Tamper for Railway MaintenancNegotiableMOQ: 2 Sets
-
Factory Supply Wacker Type ND40 Portable 2 Stroke Gas Engine Railway Ballast Tamper for Railway MaintenancNegotiableMOQ: 2 Sets
-
Factory Supply Atlas Copco Type ND40 II Portable 2 Stroke Gas Engine Impact Tamper for Railway MaintenancNegotiableMOQ: 2 Sets
Place of Origin
China
Type
Double Drum Roller
Certification
Spare parts support
After-sales Service Provided
Engineers available to service machinery overseas
Weight
600kg
Dimension(L*W*H)
See details
Condition
New
Power(W)
4500
Grade Ability
See details
Travel Speed
0-3km/hour
Static Linear Pressure
45/50N/cm
Model |
HS600 |
Matching power |
KIPOR 178F |
Type |
Diesel engine, air-cooled 4 stroke, vertical, single cylinder |
Power |
6hp(4.5kw)/3600rpm |
Walking speed |
0-3km/hour |
Fule tank volume |
3.5L |
Theoretical climbing ability |
25% |
Lubricating oil |
1.1L |
Fuel consumption |
1L/hour |
Static line load |
45/50 N/cm |
Nominal amplitude |
0.6mm |
Width of steel wheel |
600mm |
Vibration frequency |
70Hz |
Diameter of steel wheel |
450mm |
Excitation force |
15Kn |
Arm of wheel |
600mm |
Water Tank |
50L |
Length |
2460mm |
The total width |
700mm |
Drive |
Hydraulic & mechanical drive |
Vibration |
SAUER DANFOSS Hydraulic, electromagnetic clutch |
Total height (keep handrail upright) |
1800mm |
Packing box size |
1460x810x1230mm |
