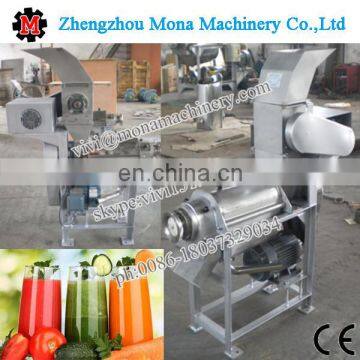

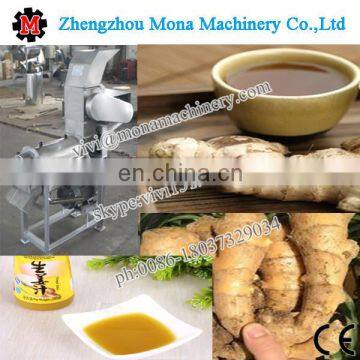

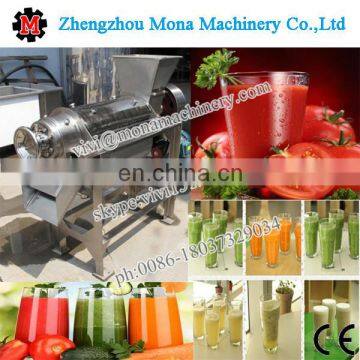

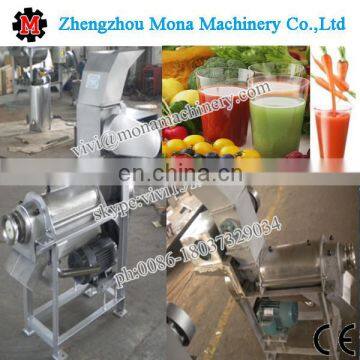

Industrial juicer /juicer maker machine/juicer extractor commercial
Industrial juicer /juicer maker machine/juicer extractor commercial
1.introduction
this fruit juicer is used to produce any fruits such as apples, pears, carrots, aloes, cactus, ect.
The machine combined the function of breaking fruit and screw juicer .the machine can remove the residues itself.
1> Proper for all kinds of fruits and vegetables. For example, mangoes, pineapple, tomatoes, apple, oranges and so on.
2> Use the screw to remove;
3> All parts which close to material are stainless steel;
4> Divide the dregs and juice automatically;
5>Output the dregs lockless, juice rate is up to more than 80%.
2.Application of fruit vegetable juicer
The machine is suitable for pressing tomato, pineapple, apple and orangeetc fruit and vegetable juice.
3.Structure of fruit vegetable juicer
The machine is made of front pedestal, feeding hopper, screw, filtrating screen, juice storing device, rear support, slag notch and other parts. Screw spindle support in the rolling bearing and right-hand side supports in hand wheel bearings. The electric motor drive the spiral working through a pair of v-belt pulley.
4.Working principle of fruit vegetable juicer
The main component of this equipment is that spiral bottom diameter increase and spiral pitch gradually reduce along the direction of material residuesoutlet, when the spiral boost the materials, due to the spiral cavity volume reduce so it can squeeze the material. Viewed from the screw spindledirection of rotation to the direction of feed hopper & slag notch. The raw materials are added into the feed hopper is clockwise direction, it pressed by the spiral propel, and the squeezed juice will flow into the juice container through the filter screen, and the waste materials will be discharged through the annular space which formed between the spiral and the pressure adjusting taper part. The interspace size adjustable when the pressure regulating part move towards the axial direction.
When we look from the equipment’s slag notch to feed hopper, turn the hand wheel bearing pedestal,regulating part to the left, the interspace willnarrowing, conversely it will bigger. It’s for clockwise change the size of the interspace, that is to say changing the resistance ofslagging, so it can change the slag yield. But if the gap is too small, because of the strong pressure, part of the residue particlesand juice willsqueeze out through filtrating screen, although the juice increased, but the quality of juice will decline. The interspace size should be depending on the user's specific technical requirements.
5.Technical parameter:
Type |
MN-0.5 |
MN-1.5 |
MN-2.5 |
Feed throughput |
500Kg/h |
1500Kg/h |
2500Kg/h |
Screw diameter |
Φ87.5mm |
Φ175mm |
Φ250mm |
Filter screen pore size |
0.6mm |
0.6mm |
0.6-1mm |
Motor Power |
1.5Kw |
4Kw |
11Kw |
Spindle speed |
400rpm |
400rpm |
400rpm |
Weight |
100Kg |
240Kg |
480Kg |
Dimension |
1100*265*920mm |
1560*450*1340mm |
1980*680*1620mm |
