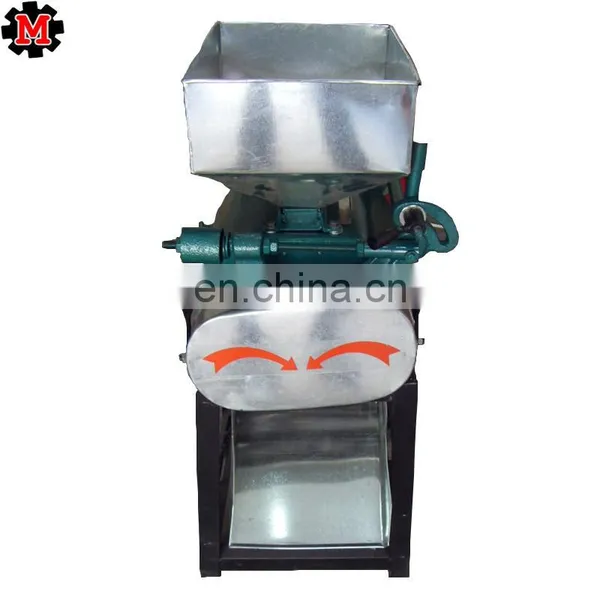

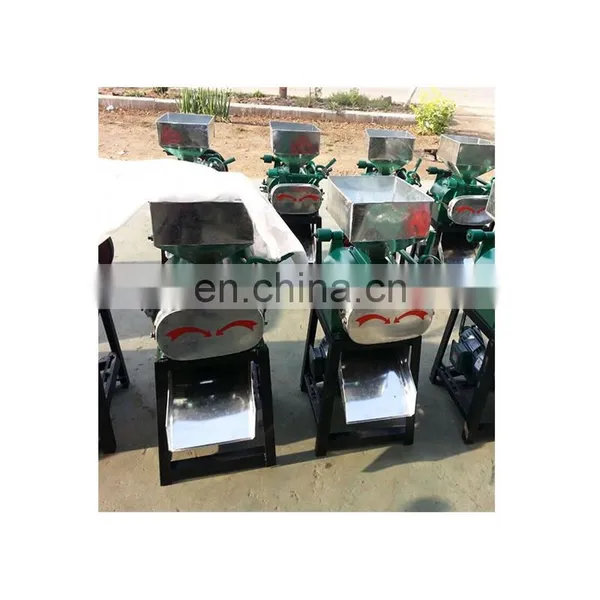

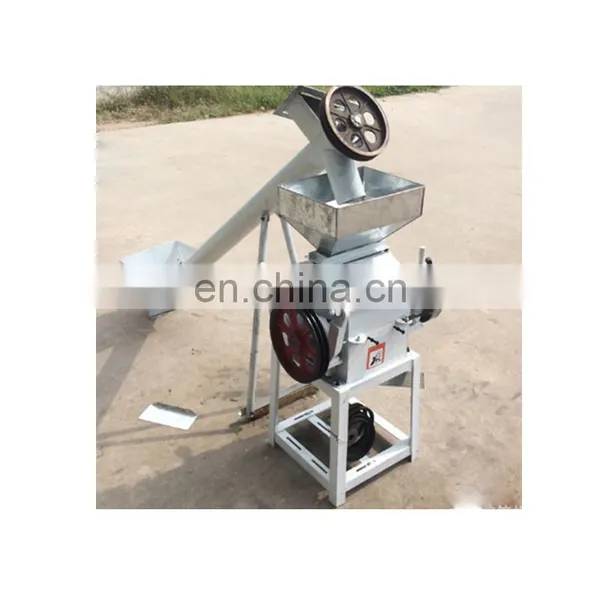

oat flakes flaker maker machine
oat flakes flaker maker machine
Mob/whatsapp/wechat:008618037126904
Skype:monamachinery
Introduction of wheat/beans/cereals corn press flattening machine:
This machine is mainly used for beans or grains.To press the beans and grains into slices. It will be easy for the food to be cooked. Also the finished product of this machine will be easy for digesting.
Application:
Raw material: soya beans, wheat, rice, oat,corn, etc grains.
Put the raw materials into the top feeding hopper, the rollers squeeze each other become flake shape, and then discharge from a base . The thickness canbe adjustable by front big screw handlebar.
Features of wheat/beans/cereals corn press flattening machine:
This bean and wheat flattening milling machine ,can press the wheat,barley ,bean and coffee bean into slice or milling them into graunal.the machine is widely used in catering industry to make the food of porridge and the wine-making industry.
Application of wheat/beans/cereals corn press flattening machine:
Raw material: soya beans, wheat, rice, oat,corn, etc grains.
Put the raw materials into the top feeding hopper, the rollers squeeze each other become flake shape, and then discharge from a base . The thickness canbe adjustable by front big screw handlebar.
Technical parameters of wheat/beans/cereals corn press flattening machine:
| Type | MN-20 | MN-35 | MN-50 |
| Output(kg/h) | 2.2kw: 100-200 | 5.5kw: 700-900 | 11kw: 1500-1700 |
| 3kw: 200-300 | 7.5kw: 900-1050 | 15-22kw:1800-2000 | |
| Speed(r/m) | fast roller 800 | fast roller 770 | fast roller 770 |
| Speed ratio of fast and slow roller | 1.78:1 | 2.5:1 | 2.5:1 |
| Specification of roller | φ180×200mm | φ220×350mm | φ220×500mm |
| Packing dimension(mm) | 760*630*960 | 910*670*830 | 1120*670*850 |
| Box:1160*640*785 | Box:1300*670*785 | ||
| N.W./G.W.(kg) | 135/150 | 490/560 | 550/630 |
Any questions and inquiry you are warmly welcome :
