fruit juice and milk pasteurization machine/ milk sterilizer
Introduction

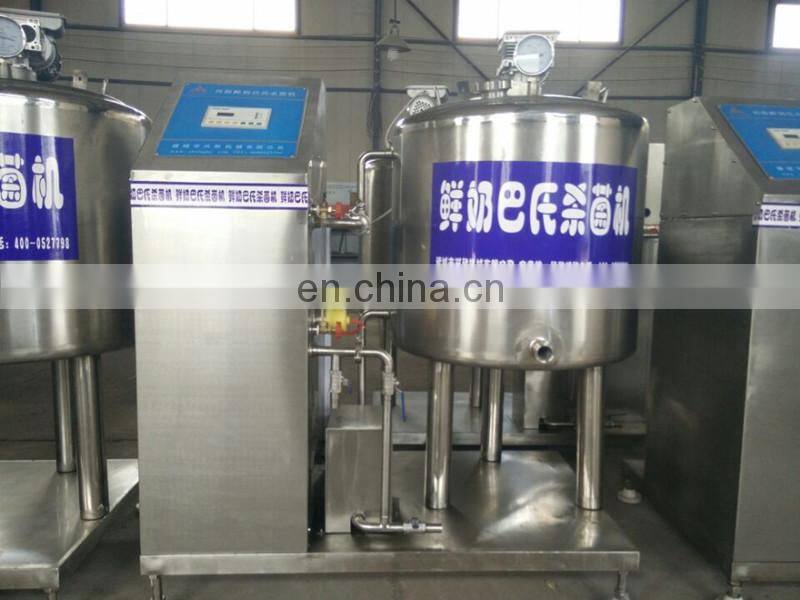

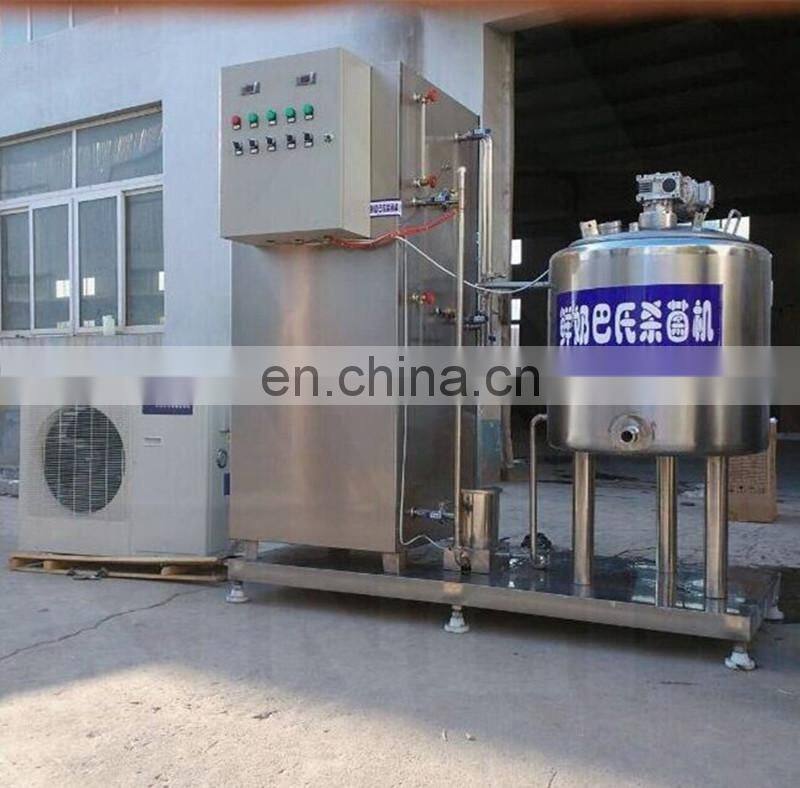

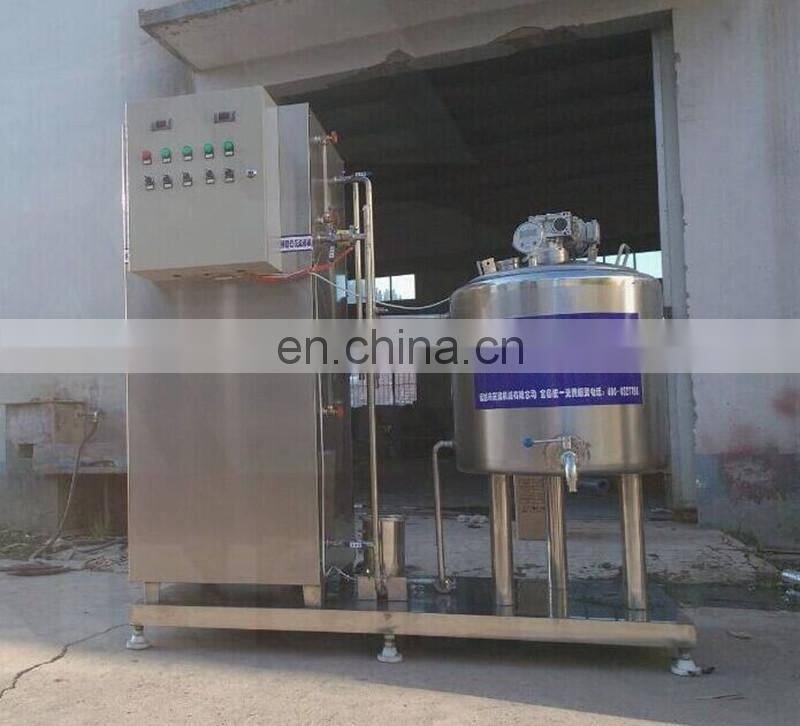

Milk pasteurization machine is composed of base, water tanks, milk pot, circulating pump, circulation of water,Which is divided into two layers of the upper to the lower heat water tank for the cold water tank, water tank at the back of the liquid level meter, circulation of water, milk cans have milk pot body, put the milk mouth, roof, the support frame of four parts, including the top by the speed reducer, mixer, thermometer, endoscopic, vent hole of five parts.
Economic type:
Packing:
Water type:
Ice type
Introduction
1. Commercial milk pasteurizer for sale is made of high quality SUS304 stainless steel production, sterilization temperature, speed can be set according to the technical requirement.
2. Commercial milk pasteurizer for sale consist of water tank and milk tank. Water cycle consists of two layer, the cold water and lower hot water. Through the refrigeration compressor precooling, the water cycle through the circulating pump inlet and outlet water.
3. Milk tank is divided into three layers, the most outer layer is the thermal insulation layer, and the middle is hot water sterilization layer, the layer is milk.
Compressor type:
Paramter
Model |
MSD100 |
Barrel body diameter |
630mm |
Milk barrel inner height (high/low) |
420mm/405mm |
production capacity |
10-100kg per time |
raw material |
Sus304 |
thinckness |
2mm |
machine height |
1150mm |
sterilizing time |
10-30min(can be ajusted) |
Sterilizing temperature |
60-95 centigrade (can be ajusted) |
Heating cycle |
25—35 minute |
voltage&power |
380v9kw /220v 6kw |
machine size |
1150*1000*1000mm |
weight |
130kg |
