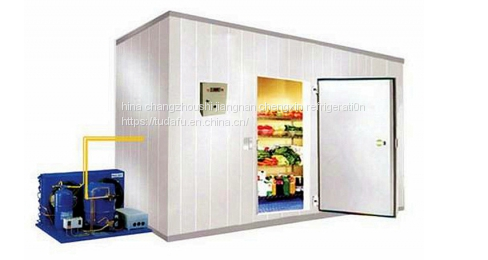

The tea cold storage/cold storage facility/air cooler/refrigerating unit

Fresh-keeping Technology of leguminous vegetables in Cold Storage

     Bean vegetables mainly include kidney beans, cowpeas (beans), sweet peas and Dutch beans. Legumes are rich in nutrients, rich in protein, carbohydrates, vitamins and mineral elements, high economic value. Legumes are stored and transported under high temperature, the respiratory rate is very high, the seeds in the pods grow rapidly, the degree of pods fibrosis is increasing and aging, the quality of legumes is reduced, and the serious ones lose their edible value, so beans are very difficult to keep fresh. Low-temperature storage is usually only suitable for 2-3 weeks, while those without cold storage can only be stored for less than 1 week.

All the legumes should be harvested before the seeds were fully developed. When the seeds in the pods were fully developed, the pods were fibrotic and tenacious and could not be used for storage. Pod damage should be minimized during harvesting and shipping, especially at the tip of the pod. Do not damage inflorescences and young pods when you harvest cowpea.

Second, the pods harvested by pre-cooling and packing should be removed from the field heat as soon as possible, and the respiration should be reduced as soon as possible. After harvest, the pods should be put into the pre-cooling or cold storage immediately, so as to reduce the bean temperature to about 10 ℃, and select, classify and load baskets (bags) in the pre-cooling storage. Kidney beans, beans can be packed in plastic baskets or corrugated paper boxes, each basket (box) to the capacity of 3 to 4, the top of the basket covered with a layer of Kraft paper, and then moved into the storage freezer palletizing, covered with plastic film account; Sweet peas, Dutch beans in foam cream packaging or polyethylene film bags in small packaging for spontaneous atmosphere storage.

Thirdly, the storage temperature of leguminous vegetables is 7 ~ 10 ℃, the relative humidity is 85% ~ 90%, and the storage requirement of bean is not easy to wilt under high humidity (90% ~ 95%), but it can not be too high, otherwise it will cause serious rot. It is necessary to avoid excessive temperature fluctuation in storage and transportation, cowpea and kidney bean are prone to cold injury when stored and transported below 6 ℃, and pods above 14 ℃ are rapidly fibrotic. When transporting legumes, it is best to keep the temperature at about 10 ℃ by using refrigerated trucks or putting crushed ice on the top of the truck and around the box to keep the temperature at about 10 ℃ as far as possible. During controlled atmosphere storage, the concentration of carbon dioxide is 1% ~ 2%, the concentration of oxygen is 6% ~ 10%.

cold store door

Stainless steel manual shift gate

Stainless steel electric aliding door

Stainless steel door witha small window collision

Stainless steel slectric double sliding door

All buried gate

Sliding

Manual door

Right door

Double door

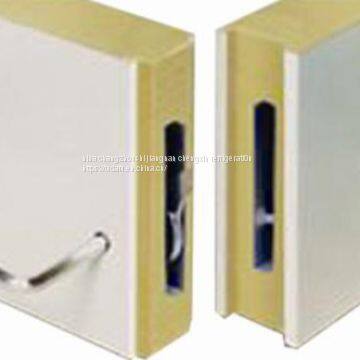

Features of polyurethane panel

The light polyurethane is the core material of panel.lts.advantage is good heat insulation.the exterior of panel is composed of color steel sheet and stainless steel sheet,to avoid temperature

Spread due to rela-tively large temperature difference between interior and exterior,so that more energy is saved and working efficiency is improved.

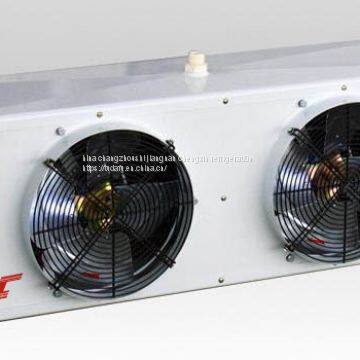

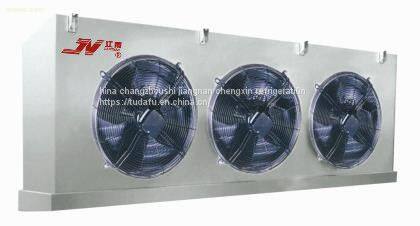

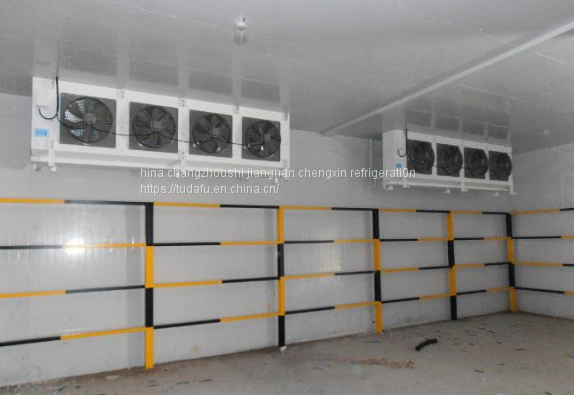

D seres of air cooler

Features

The D series of air cooler is a kindoor cooling equipment matching with Freon cndensing unit for all kinds of cold room,As per different temperature,has DL,DD,DJ 3 sub series of production for different range tenperature needed.DL air cooler for around 0℃,mainly use for fresh-keep cold storage;DD for around-18℃,mainly use for cold storage;Dj for temperature below-25℃～-30℃,specially use for blast freezer room.

1. 1.Cdbinet of steel plate with plastic spray,corrosion proof and pleasant looking.

2.Mechanecally expanded pipes with AL fins with good transfer performance.

3.Lnside are evenly arranged with defrosting heater.

4.The bottom has double water receivers,effective for anti-freezung.

5.Long distance air throw is optional.

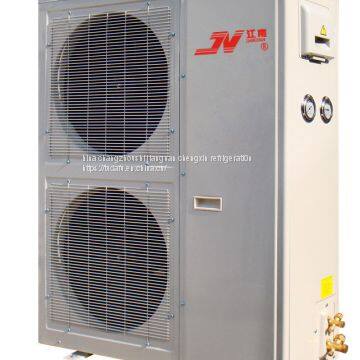

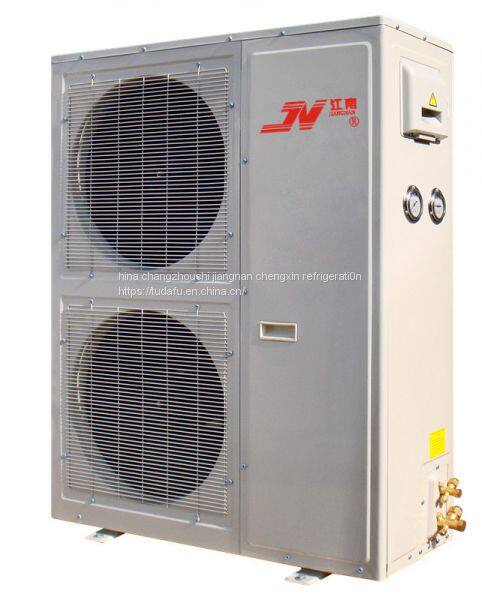

XJQSeries Box Type CondensingUnits

product description

According to demands of market,we design this new series XJQ-Eon basis of XJQ series.This new series products featurs box type structure with hermetic compressor and control box,which is compact and pleasant looking,applicable to cold display cases cold storage rooms,ice producers etc.the applicable temperature ranges are：-5℃～15℃,-5℃～5℃ and-15～25℃.they can be widely used in hotels restaurants,medicines,agricultural,chemicals industries all other place where cold storage is needed.

Features ofthese series products：

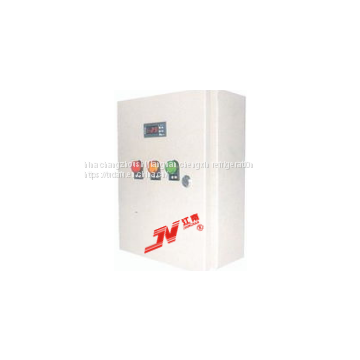

◆Electric components were added on the basis of old XJQ series,inclding condensing unit,main control board,cold room temp control board and operation board.Cold room temp control board and operation board are optional.

◆Main control board can strt/stop comperessor by system low voltage,be suitable for super market,milk container,water chiller etc.lf all optional included,system can control compressor by temp.,with function of temp.and defrosting adjustment.The complete set of control system can be used for cold room directly,no extra controller required.

◆With multi protections including phase protection,phase lack,over current,too constant start of Compressor,discharge temp and system high/low temp.

◆With fan speetd regulator,to adjust condensing fan according to condensing temp.

◆With operation data display function,to check operation current of compressor,discharge temp.and condensing temp.

◆With system alarm function.When fault effects,the system will make alarm beep sound to remind user.

◆The operation board can show temp.setting,defrosting control,operation system data checking and cold room temp.alarm functions.lt can be installed apart from condensing units for remote control.
