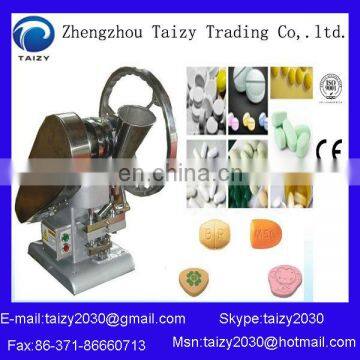

Description of pill press die
This machine is a small desktop type electric tablet press, and it also can be hand-Operated, easy be operated and maintained.This machine can press round or irregular tablets from various granular materials. It Is applicable to trial manufacture or batch produce in small scale in lab, hospital and Science research institutes etc.
Application of pill press die
The machine is suitable for the industries of Chemical, Foodstuff,Electronic and etc.It is used of pressing medicinal tablets,catalysts,sugar tablets,Calcium tablets,Coffee tablets,Powder Metallurgical,Electronic elements and various tablets of pesticide and fertilizer.etc.in such small-batch production,laboratory and hospital fields.Meanwhile,that machine also can press various abnormity and normal tablet,and press the tablets in two sides with printing as well.
Features of pill press die
1. Glossy finished stainless steel belt cover, as clean as a whistle, no pollution, meets the GMP standard.
2. Only a pair of punch and die can be erected on this machine both filling depth of materials and thickness of tablet are adjustable.
3. Press both round and irregular tablets.
4. Power supply: AC, 220V/50HZ or 110V/60HZ 1 phase
5. High precision of filling, lower consumption of materials.
6. Small volume, light weight, works smoothly and low noise.
Parameters of pill press die
ITEM |
TZS-3 |
TZS-5 |
TZS-6 |
Max. Pressure (kn) |
30 |
50 |
60Kn |
|
Max. Dia of Tablet (mm) |
14 |
18mm for round tablet 22mm for irregular tablet |
20mm for round tablet 25mm for irregular tablet |
|
Max. Depth of Filling (mm) |
11 |
13mm |
15mm |
|
Max. Thickness of Tablet(mm |
6 |
7mm |
7.5mm |
|
Production Capacity (pcs/h) |
3600 |
3600 |
3600 |
Power(w) |
550 |
1100 |
1100 |
Overall Size(LxWxH) |
600x450x680 |
600×500×700 |
650×600×700 |
Net Weight(kg) |
90 |
140kg |
150kg |
Zhengzhou Taizy machinery Co. Ltd. is a professional company in design and research, manufactory, sales and service on agricultural machine, food machine and other related machines. Taizy company are widely used in various fields of China and have exported to South Asia, Europe, Africa, South America and Middle East countries and areas.
