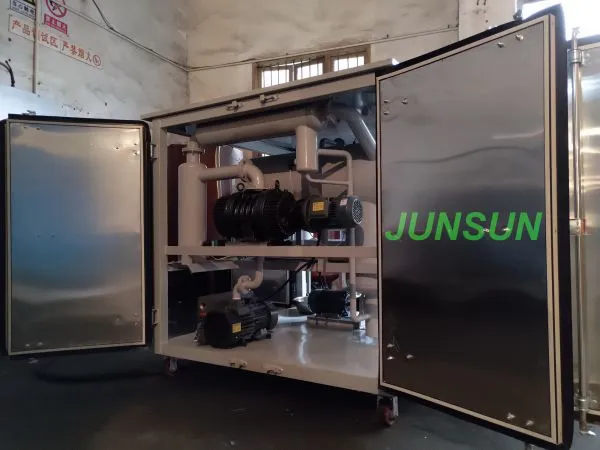

JUNSUN 3000 Liter Per Hour Insulation Oil Filtration/ Double Stage high vacuum transformer oil purifier
- 100 Set / Sets per Month
- Shanghai
- T/T L/C
- 15 days
- High Quality Fully Automatic Insulating Oil Breakdown Voltage Tester, Dielectric Oil Dielectric Strength Tester
- JUNSUN Low Price High Quality Transformer Oil Dehydration Plant, Insulating Oil Filtration System, Dielectric Oil Purification Machine
- Compact Design High Efficiency Low Voltage Transformer Oil Purifier/ Purification Plant
- Dielectric Oil BDV Tester, Three Cups Dielectric Rigidity Breakdown Voltage Testing Kit for Transformer Oil
- Fully Automatic IEC 60156 Insulating Liquids Breakdown Voltage/ BDV/ Dielectric Strength Rigidity Tester
- Ultra-High Quality Transformer Oil/ Insulating Liquid/ Dielectric Fluids Treatment Plant
Product Details
Brand Name: | LONGSUN | Place of Origin: | China | Model Number: | ZYD |
Certification: | CE, ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas | Weight: | 1000KG |
Dimension(L*W*H): | 1350*1150*1850MM | Voltage: | 220 - 480V | Usage: | Transformer Oil |
Condition: | New | Power(W): | 60KW | Working Pressure: | 0.3MPa |
Flow: | 1800 - 18000LPH |
Product Description
Why choose us?
1. We are one of the largest manufacturers & exporters of oil purifier in China
2. We have more than 10 years export experience
3. We offer our customers high quality products at competitive price
4. We offer our customers excellent after-sales service
5. We are not satisfied until our customers are satisfied!
What can this machine do for you?
1. Removes water, trace water from oil
2. Reduces combustible gases and oxygen
3. Improves oil dielectric values
4. Improves transformer power factor
5. Extends oil service life
6. Extends transformer service life and reliability
Full Automatic Energized Transformer Oil Filtration Equipment with Siemens PLC is mainly used for purifying the insulating oil in all kinds of large power equipments that are above 110KV especially for the area, where height is over 500 meters.
Feature:
1. High vacuum: High point-Vacuum
2. High absorption speed: Absorption speed power>=333L/Sr.
3. Duplex 3D stereo-evaporation, eliminating the liquid water quickly
4. UK G technology by which the trace water that is show chain, such as dissolved water, can be removed effectively.
5. Distinctive remove impurities system filtering through double FH trapezoidal network and absorbing by high polymer without the mechanical power.
6. Especially applied to vacuum oiling and drying for power transmission equipments that are over 110KV
7. Can be operated both on-load and off-load.
Advantage
Comparing with the single-stage vacuum oil purifier, ZYD Transformer Oil Filtration Equipment degases and removes the impurities more quickly, more completely, and makes the oils limiting voltage-withstand value much higher. As the bridge-type vacuum linking system, it is used for filtrating system as well as an independent vacuum power supply to vacuum oiling of power equipment.
Parameters | Unit | ZYD-30 | ZYD-50 | ZYD-100 | ZYD-150 | ZYD-200 | ZYD-250 | ZYD-300 | |
Flow Rate | L/H | 1800 | 3000 | 6000 | 9000 | 12000 | 15000 | 18000 | |
Working Vacuum | MPa | -0.08 ~ -0.099 | |||||||
Working Pressure | MPa | ≤ 0.3 | |||||||
Temp Range | ℃ | 20 ~ 80 | |||||||
Power Supply | 380V/ 50Hz/ 3Phase( As per your requirement) | ||||||||
Working Noise | Db | 60 - 85 (Depended on the configurations) | |||||||
Heating Power | KW | 30 | 30 | 48 | 72 | 72 | 90 | 120 | |
Total Power | KW | 33 | 35 | 55 | 80 | 82 | 102 | 135 | |
Inlet/Outlet Diam | MM | 25 | 32 | 42 | 50 | 50 | 60 | 60 | |
Weight | KG | 450 | 550 | 750 | 950 | 1200 | 1850 | 2000 | |
Size | Length | MM | 1450 | 1450 | 1750 | 1850 | 1950 | 2050 | 2150 |
Width | MM | 950 | 1000 | 1250 | 1300 | 1350 | 1400 | 1450 | |
Height | MM | 1700 | 1750 | 1950 | 2000 | 2050 | 2100 | 2150 | |
AFTER TREATMENT | |||||||||
Dielectric Strength | KV | ≥ 70 | |||||||
Water Content | PPM | ≤ 5 | |||||||
Gas Content | % | ≤ 0.1 | |||||||
Particle Size | μ | ≤ 3 |
