Help CenterPlanta de Tratamiento de Aceite de Transformador, Equipo de Filtración Para Aceite de Transformador
Related Products
-
Dielectric Fluids/ Transformer Oil/ Insulating Liquids Filtration and Degasification EquipmentUS$ 5000 - 30000MOQ: 1 Set -
Junsun Exporter Transformer Oil Treatment Vacuum Filtration Dielectric Oil Reconditioning PurifierUS$ 5000 - 30000MOQ: 1 Set
-
JUNSUN ZYD-50 PLC&HMI Controlled 3000 L/HR Transformer Oil Treatment and Filtration PlantUS$ 5000 - 30000MOQ: 1 Set
-
6000 Liters/Hour Dielectric Oil Water Dehrdration Multi-stage Vacuum Used Transformer Oil Filtering MachineUS$ 5000 - 30000MOQ: 1 Set
-
Factory Price 3000 Liter/hour Transformer Oil Purifier Dielectric Fluid Filtration System With Regeneration DeviceUS$ 5000 - 30000MOQ: 1 Set
Why choose us?
1. We are one of the largest manufacturers & exporters of oil purifier in China
2. We have more than 10 years export experience
3. We offer our customers high quality products at competitive price
4. We offer our customers excellent after-sales service
5. We are not satisfied until our customers are satisfied!
What can this machine do for you?
1. Removes water, trace water from oil
2. Reduces combustible gases and oxygen
3. Improves oil dielectric values
4. Improves transformer power factor
5. Extends oil service life
6. Extends transformer service life and reliability

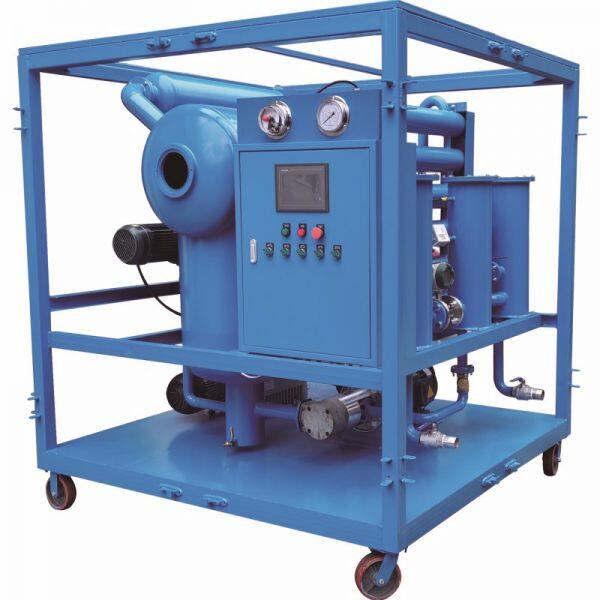

JS-ZYD Series is mainly used for purifying the insulating oil in all kinds of large power equipments that are above 110KV especially for the area, where height is over 500 meters.
Feature:
1. Advanced double-stage large capacity dehydration and degassing system which adopts large area three-dimensional flash evaporation technique to remove harmful composition in the oil such as water, air, gas and hydrocarbon etc.
2. It can be widely used for transformers on-site installation or maintenance to fill oil into transformers and circuit breakers under vacuum condition or conduct transformers evacuation operation.
3. Precise filtration system, high-quality filtering elements and multi-stage filtration with gradual precision can help to remove mechanical impurities from the oil effectively. While the filters are with self-inspection function for the pollutant-containing conditions.
4. Equipped with automatic temperature control system, liquid-level control system, defoaming control system, pressure protection system and high quality main components to ensure operation of the equipment with high reliability and perfect performance.
5. The machine supports on-line operation without supervision with indicators to show operation status.
6. The machine adopts humanization design with low noise, easy operation, long free-maintenance time and energy saving to lower the operation cost.
7. With electrical control inter-lock design. Vacuum system, oil pump system and heating system are interlocked in control.
8. Equipped with indication for changing filters and automatic stop device for overloaded filters.
9. Equipped with emergency stop for electric leakage and power overload to protect the motor.
10. With phase-sequence, phase lose protection function and safety control for sudden shut-down.
11. Equipped with vacuuming interface for transformer evacuation operation.
12. The outlet can inlet can be interchanged.
Parameters |
Unit |
ZYD-30 |
ZYD-50 |
ZYD-100 |
ZYD-150 |
ZYD-200 |
ZYD-250 |
ZYD-300 |
|
Flow Rate |
L/H |
1800 |
3000 |
6000 |
9000 |
12000 |
15000 |
18000 |
|
Working Vacuum |
MPa |
-0.08 ～ -0.099 |
|||||||
Working Pressure |
MPa |
≤ 0.3 |
|||||||
Temp Range |
℃ |
20 ～ 80 |
|||||||
Power Supply |
380V/ 50Hz/ 3Phase( As per your requirement) |
||||||||
Working Noise |
Db |
60 - 85 (Depended on the configurations) |
|||||||
Heating Power |
KW |
30 |
30 |
48 |
72 |
72 |
90 |
120 |
|
Total Power |
KW |
33 |
35 |
55 |
80 |
82 |
102 |
135 |
|
Inlet/Outlet Diam |
MM |
25 |
32 |
42 |
50 |
50 |
60 |
60 |
|
Weight |
KG |
450 |
550 |
750 |
950 |
1200 |
1850 |
2000 |
|
Size |
Length |
MM |
1450 |
1450 |
1750 |
1850 |
1950 |
2050 |
2150 |
Width |
MM |
950 |
1000 |
1250 |
1300 |
1350 |
1400 |
1450 |
|
Height |
MM |
1700 |
1750 |
1950 |
2000 |
2050 |
2100 |
2150 |
|
AFTER TREATMENT | |||||||||
Dielectric Strength |
KV |
≥ 70 |
|||||||
Water Content |
PPM |
≤ 5 |
|||||||
Gas Content |
% |
≤ 0.1 |
|||||||
Particle Size |
μ |
≤ 3 |
|||||||
