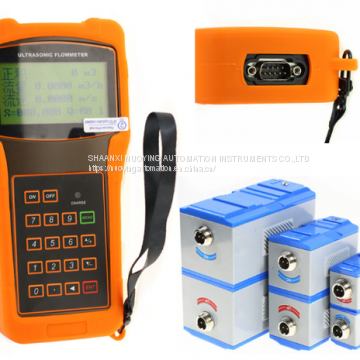

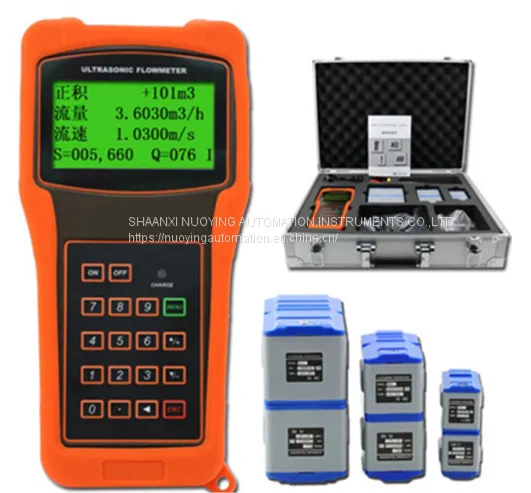

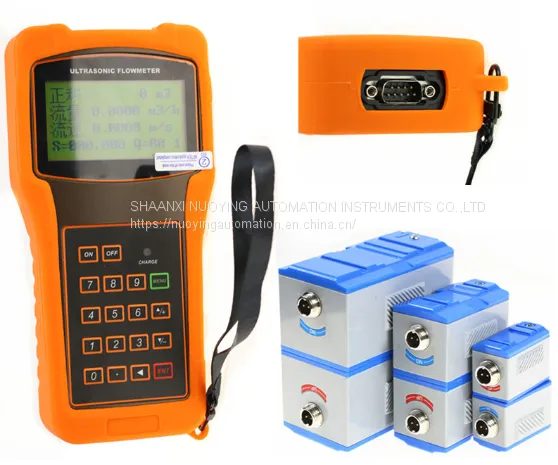

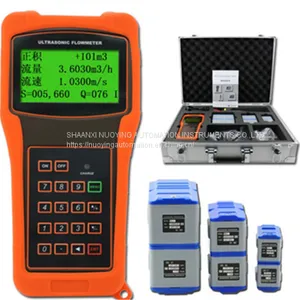

Portable rs232 signal ultransonic flow meter
Product Description:
TUC-2000H ultrasonic flow meter is designed to measure the fluid velocity of liquid in a full/closed pipe. It is a hand held measurement system which is both easy to install and use. It operates according to the difference in the transit time of flight measured, and determines the flow velocity by measuring the travel time of a pulse from one transducer to the next.
Flow in the same direction takes less time to travel to the second transducer than does flow in the opposite direction. Electroacoustic transducers receive and emit brief ultrasonic pulses through the liquid of the pipe. Transducers are vertically placed at both sides of the measured pipe. Sensors are placed on the pipe and fastened by means of a clamp. The display will quickly show the flow velocity. It can be used for metallic, plastic and rubber tubes.
Features:
Better than 1% accuracy.
0.2% of repeatability.
Positive / negative / net flow totaliser
4 line LCD display.
Operate with clamp-on transducers.
RS-232/OCT output
Ni-MH Battery life for up to 12 hours continuous operation.
Parameters:
Repeatability Better than 0.2%
Accuracy ±1% of reading at rates>0.2 mps
Response Time 0-999 seconds, user-configurable
Velocity ±32 m/s
Totalizer 7-digit totals for net, positive and negative flow respectively
Liquid Types Virtually all liquids
Security Setup values Modification Lockout. Access code needs unlocking
Display 4x8 Chinese characters or 4x16 English letters, display instant flow,
velocity, total flow,signal status
Signal output Non-isolation RS232(FUJI extension protocol), one channel isolation OCT output
Transducers Clamp on type transducers
Transducer Cord Length Standard 2x10 meters, optional 2x 500 meters
Power Supply 3 AAA Ni-H built-in batteries. When fully recharged it will last over 12 hours of operation.
100V-240VAC for the charger
Data Logger Built-in data logger can store over 2000 lines of data Housing Material ABS
Case Size 100x66x20mm
Handset Weight 514g (1.2 lbs) with batteries
