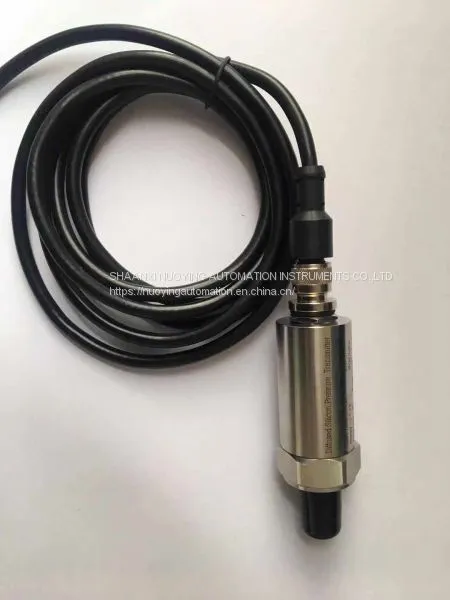

Liquid 0-10v pressure sensor transducer

Liquid 0-10v pressure sensor transducer

Description:

Pressure transmitter is a series pressure transmitter of our standard transmitter.Imported chip assembly, reflecting a world-class pressure transmitter technology.Compact, rugged. Light weight, easy to install. Easy to use. Maintenance-free. Zero outside the range can be continuously adjusted, a wide range of migration. Suitable for a variety of occasions in harsh environments and corrosive media.

Features:

1.DigitalASIC, accuracy and stability

2.Drift affect small

3.Excellent long-term stability

4.Excellent anti-jamming capability

5.Overvoltage overcurrent protection, reverse polarity protection

6.Excellent selection of imported sensors core

Parameters:

1.Measuring media: oil, water, gas and compatible with 316L stainless steel

2.Sensor:Ceramic type:0.02-40Mpa

Diffused silicon type: -0.1MPa ~ 0 ~ 100MPa

3.Pressure: 2 times (10MPa or less); 1.5 times (10MPa or more)

 4.Accuracy: ± 0.1% FS ± 0.2% FS ± 0.25% FS ± 0.4% FS

5. Nonlinear: <± 0.2% FS

6. Hysteresis and repeatability: ≤ ± 0.1% FS 7.Long-term stability: ≤ ± 0.1% FS / year 8.Zero drift: ≤ ± 0.02% FS / ℃

9.Response time: ≤500ms (standard)
