UT Flaw Detector , Ultrasonic Flaw Test Meter
Product Application

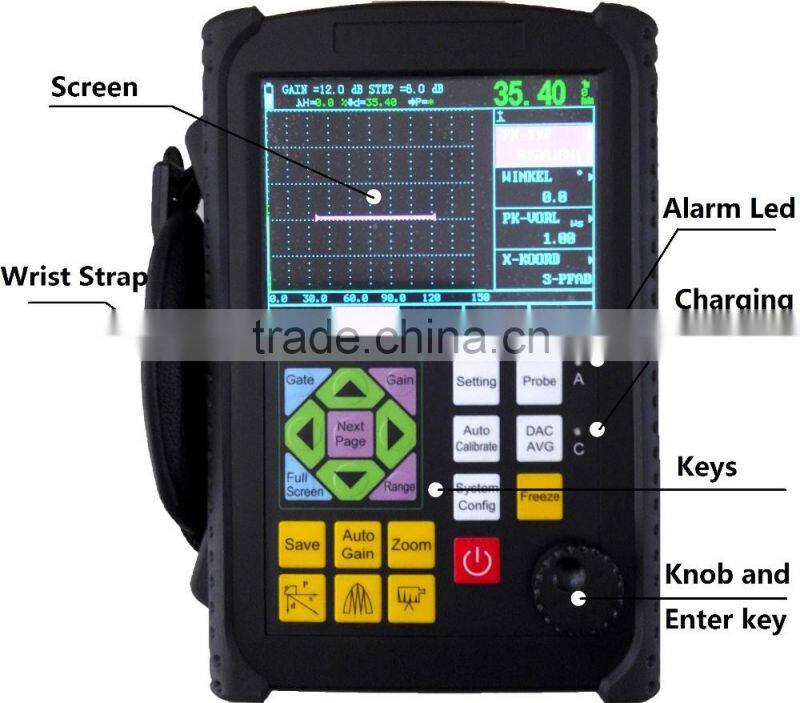

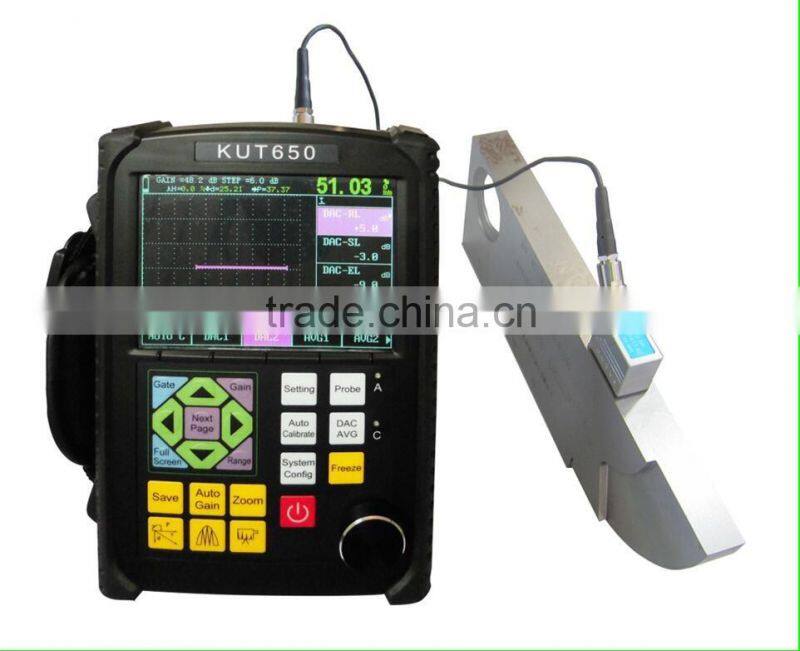

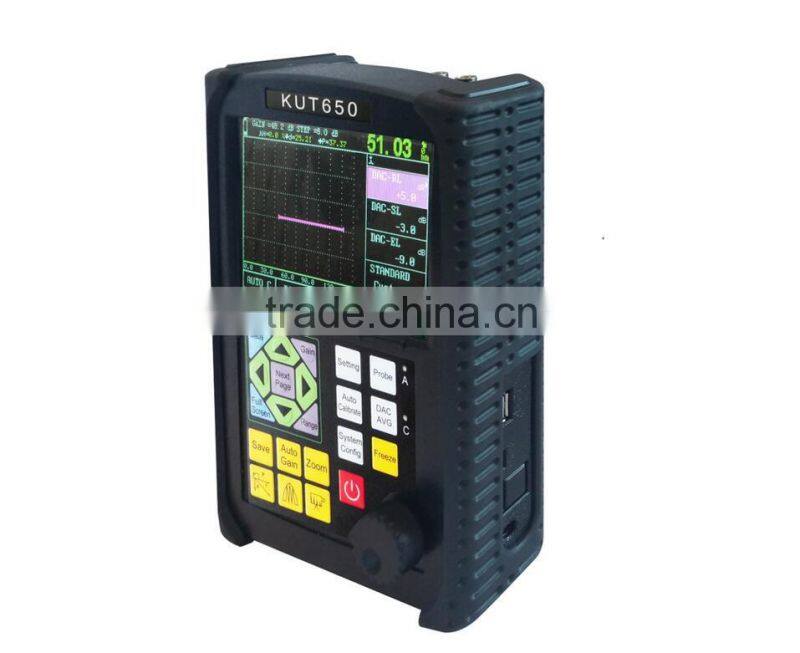

KUT-650 is a portable industrial non-destructive flaw detector, which can rapidly, easily and accurately inspect, locate, evaluate and diagnose various defects (crack, inclusion and pinhole, etc.) in a workpiece without destruction. It can be used both in a lab and field.
Main Features
*Automated display precise flaw location(Depth d, level p,distance s,amplitude,sz dB,ф);
*Unlimited of video time
*Automated to switch three staff gauge ((Depth d,level p,distance s);
*Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity ;
*Convenient to make and use DACTCG and AVG to evaluate the echo, the curve can be modified and compensated;
*6dB DAC functions;
*Standards of test for DAC is saved.
*500 independence setup, any criterion can be input freely, we can work in the scene without test block;
*Big memory of 1000 A graph
*Automated gain and gain scan;
*Peak Hold and Peak Memory;
*B scan;
*AWS D1.1
*Automated make video of test process and play; use USB flash disk，the length of video is unlimited.
*Powerful pc software and reports can be export to excel;
*Li battery, continue working time up to 10 hours;
*The embeded software can be online updated；
*Display freeze;
*Automated echo degree;
*Angles and K-value;
*Lock and unlock function of system parameters;
*Electronic clock calendar ;
*Two gates setting and alarm indication;
*Gate and DAC alarm;
Gain:0-120dB
D-Delay:D-Delay -20µs～+3400µs
Resolution:0.1mm(2.5mm~100mm) 1mm(>100)
P-Delay:0µs～99.99µs
Sound speed:1000 m/s～15000m/s
Temperature:10℃~50℃
Humidity:20%～90%RH
Power:Li-battery
Working time: >10 hours
Display: LED true color
Size: 238mm*155mm*46mm
Weight:1kg
Items will be shipped out within 3 to 6 days upon verification payment.
Items will be shipped out via:
air shippment
International Express: DHL/UPS/FEDEX/TNT .it will take around 3 to 6 days to get your door given considering everything goes well.
