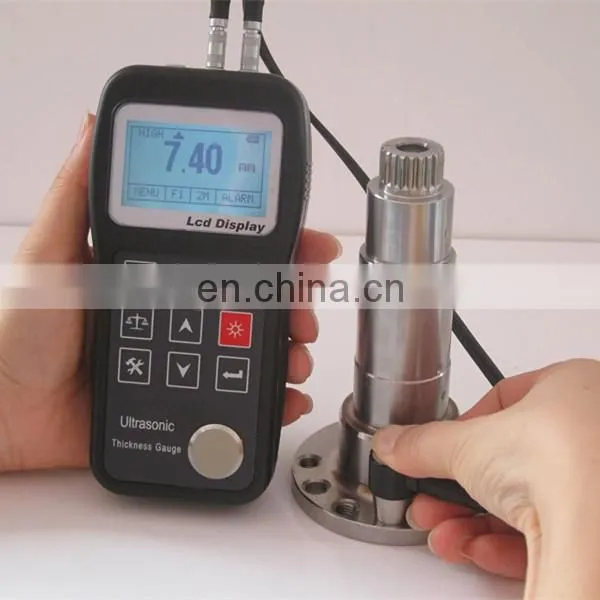

Color Screen Ultrasonic Thickness Gauge Meter
Product Application
for measuring the thickness of hull,oil and gas pipeline,high pressure vessel,boiler.the testing objects would be metal materials,or plastic,nylon.,etc non metallic materials.
Main Features
*Suitable for measuring metal (such as steel, cast iron, aluminum, copper, etc.), plastic, ceramic, glass, glass fiber and other any good conductors of ultrasonic thickness.
*Can be equipped with a variety of different frequency, chip size, double crystal probe use.
*Have probe zero calibration, a two-point calibration function, can be automatically on system error correction.
*Thickness can be known the sound velocity measurement, in order to improve the accuracy of measurement.
*With functions of coupling status alerts.
*With LED backlight, convenient to use in dark environment.
*The battery indicator function, can real-time display the battery remaining power.
*With automatic power saving function dormancy, automatic shutdown, etc.
*Small, portable, high accuracy, suitable for bad operating environment, vibration, impact resistance and electromagnetic interference.
Measuring range:0.75~300mm (0.03~11.8inch) depends on probe
Temperature available: -10℃~60℃
PC connecting and software :Yes
Sound velocity range:1000~9999m/s (0.039~0.394in/us)
Display resolution:0.01mm or 0.1mm(lower than 100.0mm) 0.1mm(more than 99.99mm)
Accuracy: ±(0.5%Thickness+0.04)mm,depends on Materials and conditions
Data Memory:5 files(up to 100 values for each file)of stored values 5 Sound Velocity of stored values
Power:2pcs 1.5V AA size,batteries. 100 hours typical operating time(LED back light off)
Continuous working time:250 hours (with backlight off)
