Changsha Suny Electronic Technology Co.,Limited is a Professional manufacturer of the PCB production field. We have the factory in changsha of hunan, we can provide the:
1:PCB making machines
2:PCB etching machine
3:PCB through hole mahine
4:Completely PCB production line
5:Set up Small PCB factory
6:PCB prototyping laboratory
SUNY with more than 10 years experienced engineer team,we can povide the professional technical support as well as the overseas installation and training.
SUNY can provide all the related consumables and raw materials for the PCB machines and the PCB production line.
SUNY with the professional showing room in china, we provide the free installation and training service in china.

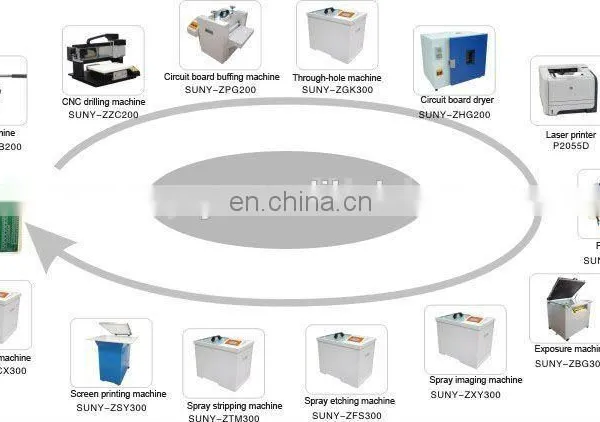

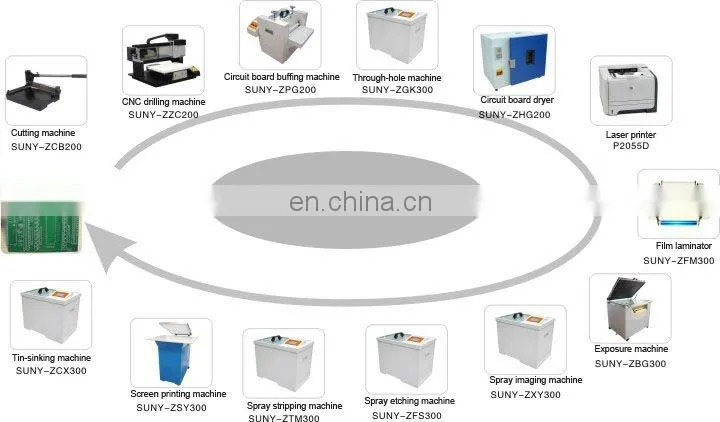

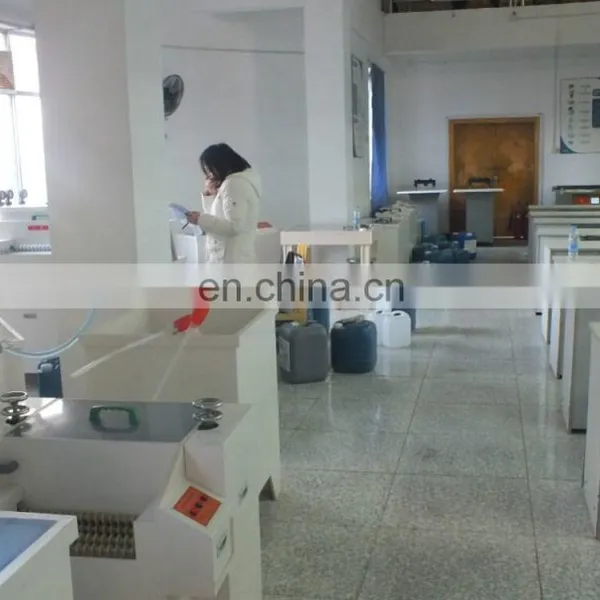

Small PCB production Line Solution B:
This solution B include all the machine to produce the PCB bards. This solution is mainly for produce the 200*300mm Double sided PCB board, This solution is very suitable for the school teaching and the small PCB production co,pany.We also provide the completely liquids,materials and allthe other consumables.You can start to do the PCB boards once you get our machine and all consumables.
Features:
- Maximum PCB size:200*300mm
- Single side PCB capacity: 20 square meter/day
- Double side PCB capacity: 2 square meter/day
- Line width:8Mil
- Line space:8Mil
- Mini aperture:0.4mm
Training:
- Our engineer can do the training in your cuntry.
- You can also come to our factory to fo the training.

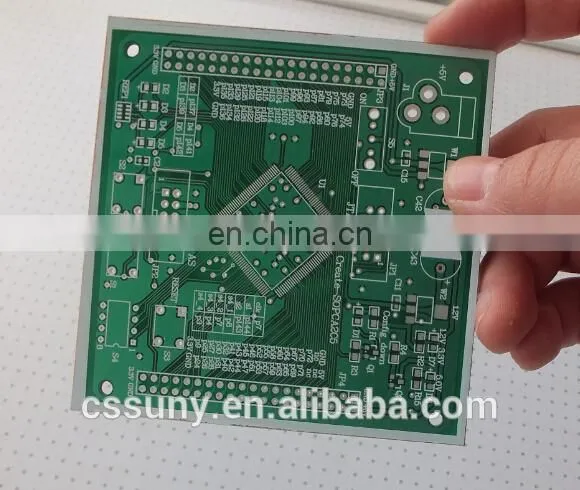

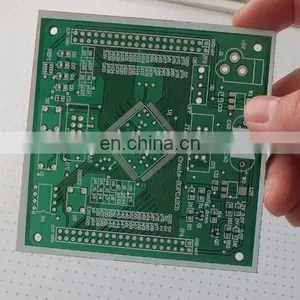

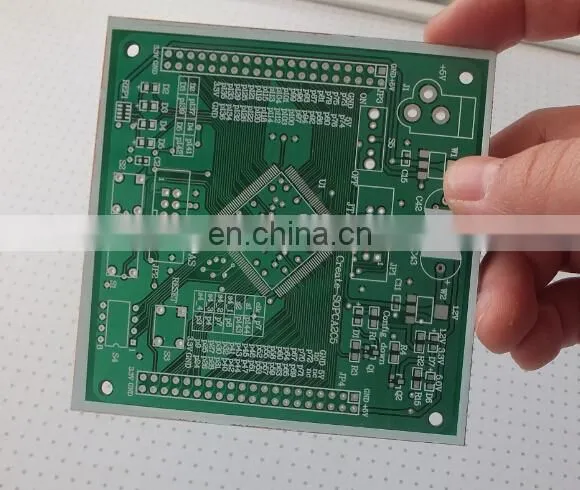

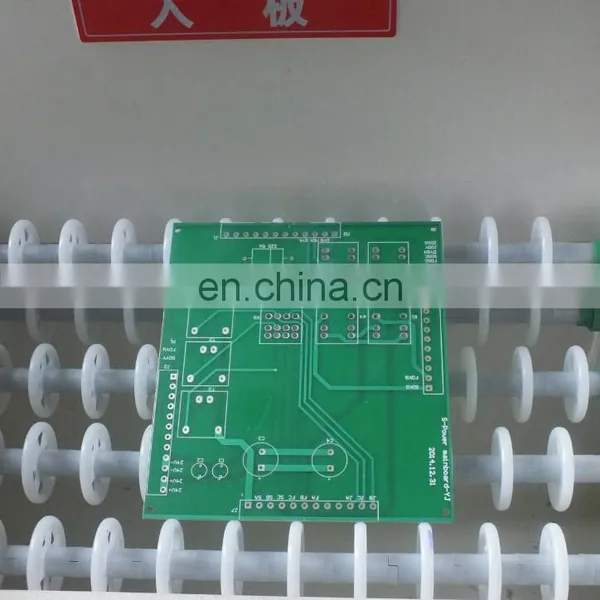

The PCB boards produced by our machines:
Optional software data
No. |
Electronic circuit design optional software data |
Introductions |
01 |
Protel series PCB design edit software |
Professional electronic circuit principle diagram, PCB graph editor output software
|
02 |
CAM350 computer aided manufacturing editing software |
Transformation and input/output edit software of formats such as Gerber, Dxf |
03 |
Nc Drills transformation output software |
Industry standard drilling file format |
04 |
Gerber transformation output control software |
Industrial drawing professional format |
05 |
Electronic circuit design multimedia video demo CD |
Display circuit design basic rules and making process |
06 |
Electronic circuit design teaching materials |
Rules and basic concept of electronic circuit design |
07 |
Electronic circuit design practice instructions |
Write to training project, provide electronic version, convenient for teachers to edit and use |
08 |
Electronic circuit design training package |
Including project, diagram, PCB figure, sealing, design rules, etc |
09 |
Pcb training project group measures and teaching process wall chart |
Develop experimental facilities |
10 |
Supporting the equipment operation process teaching video, reflow soldering process video teaching CD |
For students to observe, study, and make reference
|
11 |
Supporting training project suite, electronic version of instructions and demo courseware |
Provide basic material for this platform |
