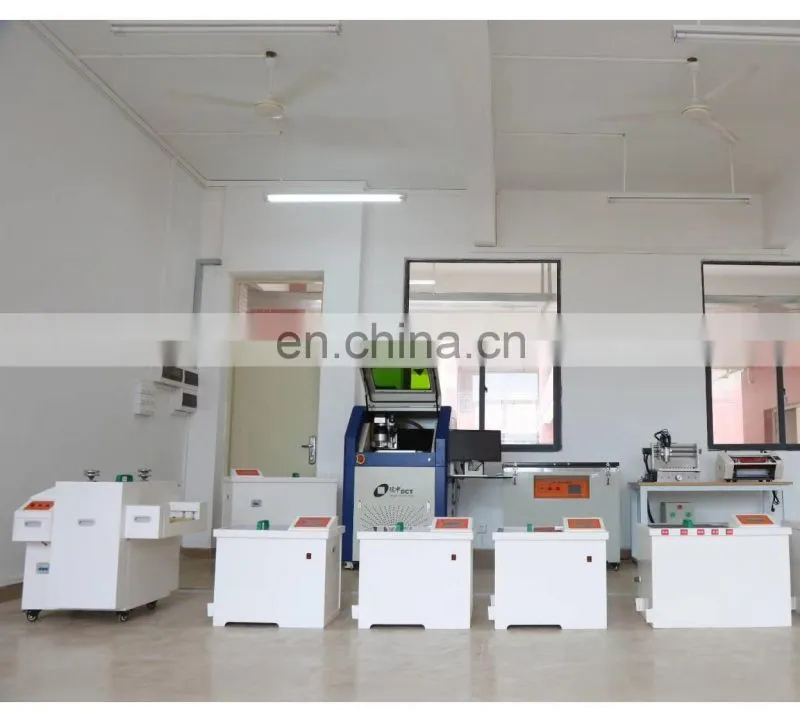

Middle PCB production line solution E:
PCB Production line, PCB laboratory,Small PCB making factory
This solution include all the machine to produce the PCB bards. This solution is mainly for produce the 300*400mm PCB, This solution is suitable for the middle production.It is very good for the small factory.We also provide the completely liquids,materials and allthe other consumables.You can start to do the PCB boards once you get our machine and all consumables.
Features:
- Maximum PCB size:300*400mm
- Single side PCB capacity: 60 square meter/day
- Double side PCB capacity: 16 square meter/day
- Line width:6Mil
- Line space:6Mil
- Mini aperture:0.3mm
Training:
- Our engineer can do the training in your cuntry.
- You can also come to our factory to fo the training.

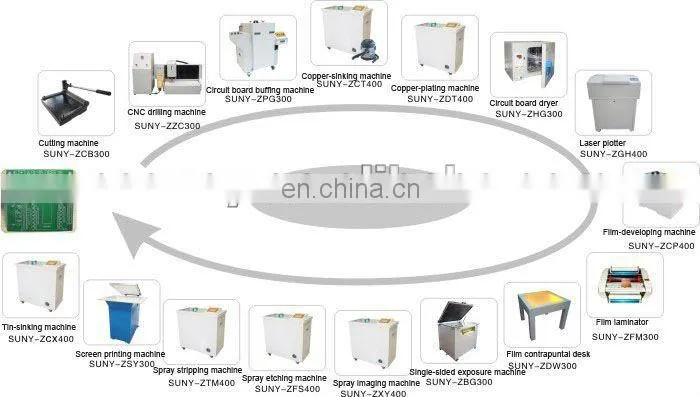

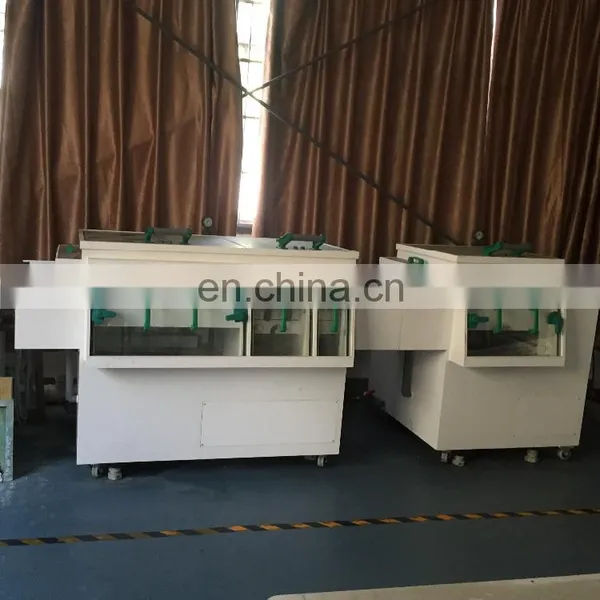

This production line include the following equipment:
No. |
Equipment name |
Model |
Unit |
Qty. |
1 |
Cutting machine |
SUNY-ZCB400 |
pcs |
1 |
2 |
CNC drilling machine |
SUNY-ZZC400 |
pcs |
1 |
3 |
Circuit board buffing machine |
SUNY-ZPG400 |
pcs |
1 |
4 |
Copper-sinking machine |
SUNY-ZCT400 |
pcs |
1 |
5 |
Copper-plating machine |
SUNY-ZDT400 |
pcs |
2 |
6 |
Screen printing machine |
SUNY-ZSY300 |
pcs |
2 |
7 |
Circuit board dryer |
SUNY-ZHG400 |
pcs |
2 |
8 |
Plotter |
SUNY-ZGH400 |
pcs |
1 |
9 |
Exposure machine |
SUNY-ZBG320 |
pcs |
1 |
10 |
Film laminator |
SUNY-ZFM300 |
pcs |
1 |
11 |
Spray imaging machine |
SUNY-ZXY400 |
pcs |
1 |
12 |
Spray etching machine |
SUNY-ZFS400 |
pcs |
1 |
13 |
Spray stripping machine |
SUNY-ZTM400 |
pcs |
1 |
14 |
Tin-sinking machine |
SUNY-ZCX400 |
pcs |
1 |
15 |
Film contrapuntal desk |
SUNY-ZDW300 |
pcs |
1 |
16 |
PVC tank |
SUNY-ZSC300 |
pcs |
1 |
17 |
Laser printer |
P2055D |
pcs |
1 |
18 |
Heat-transfer machine |
SUNY-ZRZ200 |
pcs |
1 |
19 |
Spray screen cleaner |
SUNY-ZXW400 |
pcs |
1 |
20 |
Teaching process wall chart |
page |
14 |
|
21 |
Plate making material |
batch |
1 |
|
22 |
Engineering cost |
time |
1 |
|
| ||||
Optional resources
Optional software data | ||
No. |
Electronic circuit design optional software data (assisting platform operation) |
Introductions |
01 |
Protel series PCB design edit software |
Professional electronic circuit principle diagram, PCB graph editor output software
|
02 |
CAM350 computer aided manufacturing editing software |
Transformation and input/output edit software of formats such as Gerber, Dxf |
03 |
Nc Drills transformation output software |
Industry standard drilling file format |
04 |
Gerber transformation output control software |
Industrial drawing professional format |
05 |
Electronic circuit design multimedia video demo CD |
Display circuit design basic rules and making process, equipment operation method and attentions |
06 |
Electronic circuit design teaching materials |
Rules and basic concept of electronic circuit design |
07 |
Electronic circuit design practice instructions |
Write to training project, provide electronic version, convenient for teachers to edit and use |
08 |
Electronic circuit design training package |
Including project, diagram, PCB figure, sealing, design rules, etc |
09 |
Pcb training project group measures and teaching process wall chart |
Develop experimental facilities, ensure that all students understand, master the technology and be familiar with the process |
10 |
Supporting the equipment operation process teaching video, reflow soldering process video teaching CD |
For students to observe, study, and make reference
|
11 |
Supporting training project suite, electronic version of instructions and demo courseware |
Provide basic material for this platform |
Check the video to see how to make PCB board with our machines:
/watch?v=sQZVaeKhogs

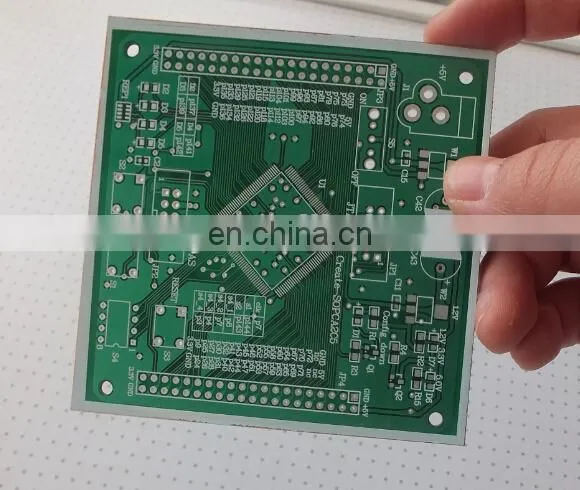

The PCB boards produced by our machines:
Customer trainning :
