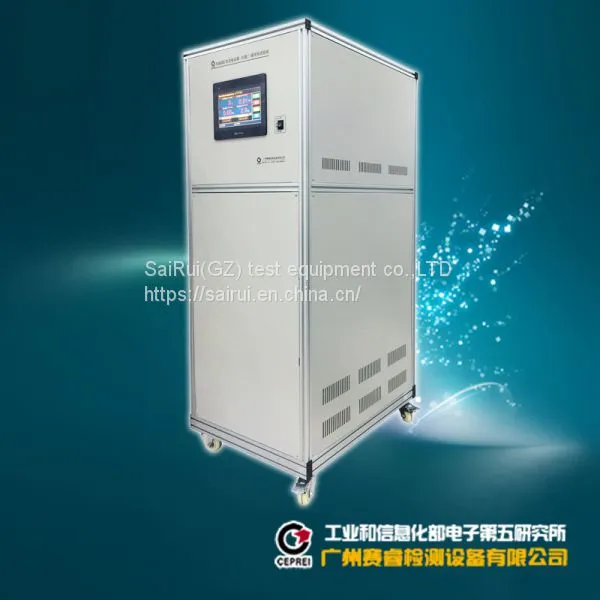

Characteristics of [AC capacitor destructive test rig]
1. It can satisfy the destructive test of capacitor marked S1S2S3.
2. Program control, achieve automatic test process, parameters on the touch screen set and display, parameter power loss memory;
3. AC DC test, AC test type.
4. Automatic pressure regulation, including speed and slow file boost, "slow" file speed of 200V/Min ±10, "fast" file speed of about 1000V / min;
5. Meet DC and AC continuous output (S1S2) and DC and AC output at the same time (S3);
6. Voltage 0V starting , has overvoltage, overcurrent and other safety protection functions;
7. Automatic judgment test results, equipped with explosion proof test box;
8. Can be customized according to customer requirements.
Introduction to [AC capacitor destructive test rig]
53XX series AC capacitor destructive test rig is designed and manufactured according to IEC60252-1 ed 2.0: 2013 standard (S3 capacitor), with AC/DC simultaneous output. Panasonic PLC Programmable Controller (FP-X0 C38AT) was selected to measure the parameters and the working state of the instrument through the PLC self-embedded AP-D conversion module. All the parameters and the working state of the instrument were displayed and set on the 10-inch color touch screen (TK6102iH) of the Taiwan Violenton. Various parameters of power off memory; Humanized interface, easy to operate. The instrument also has automatic voltage regulation Automatic timing and over-current over-voltage protection functions to ensure the safety and reliability of the work of the instrument. The instrument has the advantages of simple operation, good performance and high reliability, and is equipped with a safe and reliable explosion proof test box. This equipment is suitable for the destructive test of AC capacitors (type S 3 capacitors).
Technical parameters [AC capacitor withstand voltage test rig] (non-standard customizable)
parameter :
1. According to the national standard GB/T3667.1-2016 destructive test requirements design;
2. Maximum output DC (DC): test voltage / current 5 000 V / R 60 Ma;
3. Touch screen display test voltage (DC): accuracy ±3% ±3 words;
4. Touch screen display test current (DC): accuracy ±3% ±3 words;
5. Maximum output AC (AC): test voltage / current AC:650V/21A;
6. Touch screen display test voltage (AC): accuracy ±5% ±3 words;
7 . Touch screen display test current (AC): accuracy ±5% ±3 words;
8. Test capacitor capacity range: 1 μ F 100 μ F, maximum rated voltage 500V.
Functions:
1. PLC (FP-X0 L40R) control, motor regulation AC voltage and current;
2. DC boost can be set up "fast" and "slow" two gear. "slow" block boost speed: 200V/ score ±10; "fast" block boost speed about 1000V/;
3. Timing function: DC voltage needs to be maintained 5 minutes; AC voltage needs to maintain 5min or 8 hours; start timing function when time to automatically disconnect voltage;
4. settings and display parameters on 10 inch color touch screen (TK6102iH);
5. Voltage zero voltage switching;
6. Overcurrent, overvoltage protection;
7. Equipped with explosion safety test box;
8. Instrument size: about 730mm (length) × 880mm (depth) × 1500mm (high);
9. Working power supply: AC 220 V ±10% 50% 60 Hz ±2 Hz.
Maintenance and regular maintenance of [AC capacitor withstand voltage test rig]
Maintenance:
In order to prevent electrical shock, please do not lift the lid of the instrument. All parts in this instrument need not be maintained by the user. If the instrument is abnormal, please seek maintenance from our laboratory. The attached circuit and block diagram are for reference only.
Regular maintenance:
The AC power supply, input power cord accessories and so on must be carefully checked and checked at least once a year to protect the safety of the user and the accuracy of the instrument.
..
For more information about products, please contact us and visit the company.
