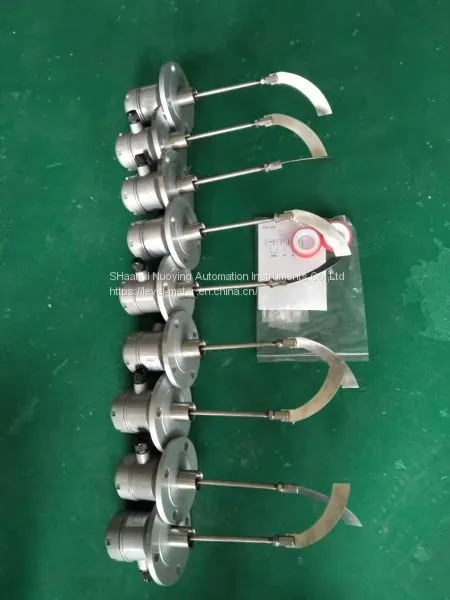

Barrier Level Switch

Barrier Level Switch thumbnail-1
Barrier Level Switch photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Contact Supplier Request Quote Chat Now
Shaanxi Nuoying Automation Instruments Co.,Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
any
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China

1 Design features

Barrier level switch

Unique oil seal design can prevent dust from infiltrating along the axis

The motor performance of imported screw stop switch is reliable. Double sealed bearing can ensure long-term continuous operation.

Simple structure and convenient installation

Stable, reliable and adjustable torsion

Various types of probes can be used in different occasions.

Large Output Contact Capacity

2. Technical parameters

Typical applications: level control of powder and small particles

Probe rod material: 304 (optional)

Detecting rod length: 200mm (customizable according to requirements)

Power supply: 24VDC, 220VAC (optional)

Process temperature: - 40 ~ + 80 (> + 80 (> customizable)

Process pressure: atmospheric pressure

Process connection: thread and flange (optional)

Medium Density: ≥ 0.4g/cm³

Insulation impedance: > 100MΩ(500VDC)

Dielectric strength: 1500V1min

Contact capacity: 250V5A (SPDT single-pole double-throw)

Torque: 10kg. m (1N. m)

Power: 3.0W

Electrical Interface: 3/4NPT

Shell Material: Aluminum (optional)

Protection Level: IP67
