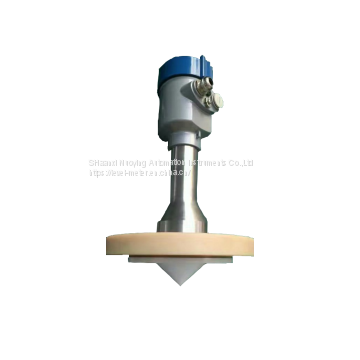

NYRD-PB Radar Level Gauge

Shaanxi Nuoying Automation Instruments Co.,Ltd Verified Business License
NYRD-PB Radar Level Gauge thumbnail-1
NYRD-PB Radar Level Gauge photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
NYRD-PB
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
any
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Model Number NYRD-PB

High Frequency Radar Level Meter

Design features:

Small antenna size, easy to install; non-contact radar, no wear, no pollution

Hardly affected by corrosion or foam; hardly affected by changes in water vapor, temperature and pressure in the atmosphere.

Severe dust environment has little influence on the work of high frequency level gauge.

Shorter wavelength, better reflection on inclined solid surfaces

The beam angle is small and the energy is concentrated, which enhances the echo ability and helps to avoid the interference.

The measurement blind area is smaller, and good results can be obtained for small tank measurement.

High signal-to-noise ratio, even in the case of switching, can achieve better performance

High frequency is the best choice for measuring solid and low dielectric constant medium

2. Technical parameters

Application:Easy to crystallize, dew, corrosive liquid, powder

Antenna material: 316L/PTFE/Flat

Measuring range: 40 meters

Frequency range: 26GHz

Accuracy: ±3mm

Medium temperature: -40 to +260 °C

Process pressure: -0.1～2.0Mpa

Power supply: 24vDC (two-wire, four-wire optional)

Signal output: 4...20mA/HART (two lines/four lines)/ RS485/Mod bus

Process connection:Flange

Protection level: IP67

Explosion-proof grade: Exia IIC T6 Ga



Product Tags: NYRD-SL , radar gauge , level meter
