Guided wave 4..20ma radar level sensor transmitter
Product Description:
The high frequency microwave pulse emitted by guided wave radar propagates along the detection module (steel cable or steel bar) and meets the measured medium. Due to the sudden change of dielectric constant the pulse energy is reflected and part of the pulse energy is reflected back. The time interval between the transmitting pulse and the reflection pulse is proportional to the distance of the medium to be measured.
Features:
Guided wave radar level meter adopts advanced microwave processing technology and unique Echo Discovery echo processing technology. The contact measurement has high accuracy and more accurate measurement. At the same time, guided wave radar anti-adhesion, not affected by the medium temperature, adhesion and other external environment.
The 70X series guided wave radar level meter is suitable for various complicated working conditions and applications. Such as: high temperature, high pressure and small dielectric constant, etc.
Pulse working mode, the product emission power is very low, can be installed in a variety of metal, non-metallic containers, on the human body and ring No harm to the environment.
Parameters:
Applications: liquid, powder, solid particle

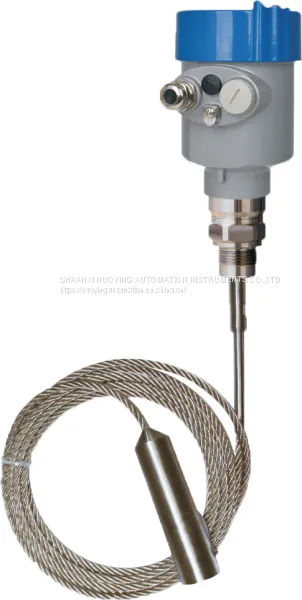

Antenna material: soft cable / 304/PTFE (optional)
Measurement range: 30m
Accuracy: ±1mm
Power supply: 24VDC (two-wire, four-wire)
Dielectric temperature: -40 ~ 130 ℃, -40 ~ 250 ℃
Process pressure:-0.1~4.0MPa

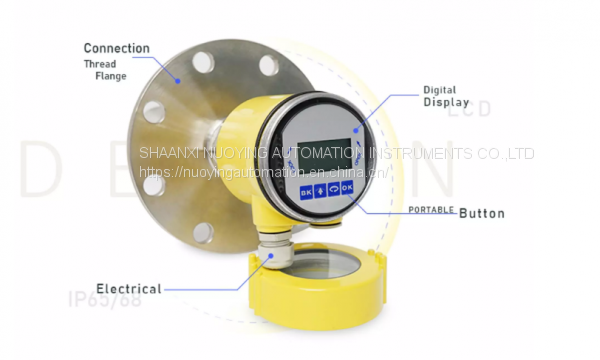

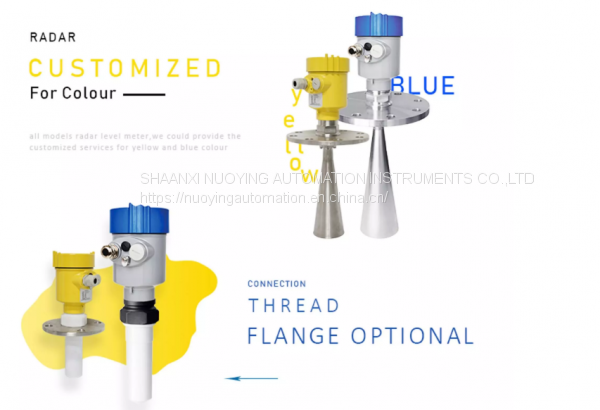

Process connection: thread, flange (optional)
Protection grade: IP67
Explosion-proof grade: Exia Ⅱ CT6 (optional)
Signal output: 4.20mA/HART/RS485/Modbus
