Liquid radar level sensor transmitter
Description:
The radar level meter NYR D80X series sensor is a 26Hz high-frequency radar level measuring instrument with a maximum measurement distance of 80 meters. The antenna is further optimized, and the new fast microprocessor can perform higher rate signal analysis processing so that the instrument can be used for some complex measurement conditions such as reaction kettle, solid storage.
Features:
1. The antenna is small in size and easy to install; non-contact radar, no wear and no pollution.
2. Almost free from corrosion and foam; almost unaffected by changes in water vapor, temperature and pressure in the atmosphere.
3. The severe dust environment has little effect on the work of high frequency level gauges.
4. The shorter wavelengths provide better reflection for sloping solid surfaces.
5. The beam angle is small, the energy is concentrated, and the echo capability is enhanced while avoiding interference.
6. The measurement dead zone is smaller, and good results can also be obtained for small can measurement.
7. High signal-to-noise ratio, even in the case of fluctuations, can achieve better performance.
8. High frequency is the best choice for measuring solid and low dielectric constant media.

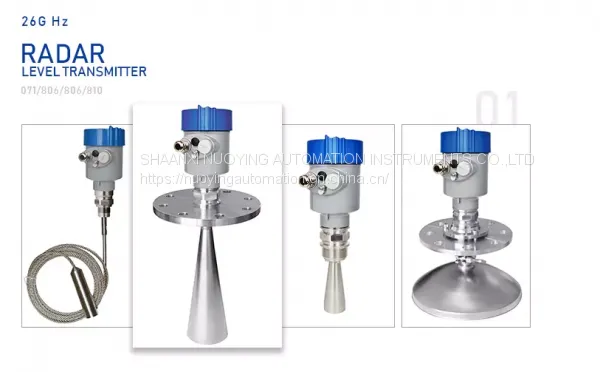

Picture：
Paraments:
Applications: solid, granule, strong dust, etc.
Antenna material: 316L (optional)
Measuring range: 70 meters
Measurement accuracy: ±15mm
Power supply: 24VDC (two lines, four lines)
Medium temperature: -40 ~ +250 ° C
Process pressure: -0.1～4.0MPa
Process connection: flange, bracket (optional)
Protection: IP67
Explosion-proof grade: ExiaIICT6 (optional)
Signal output: 4...20mA/HART/ RS485/Modbus.
