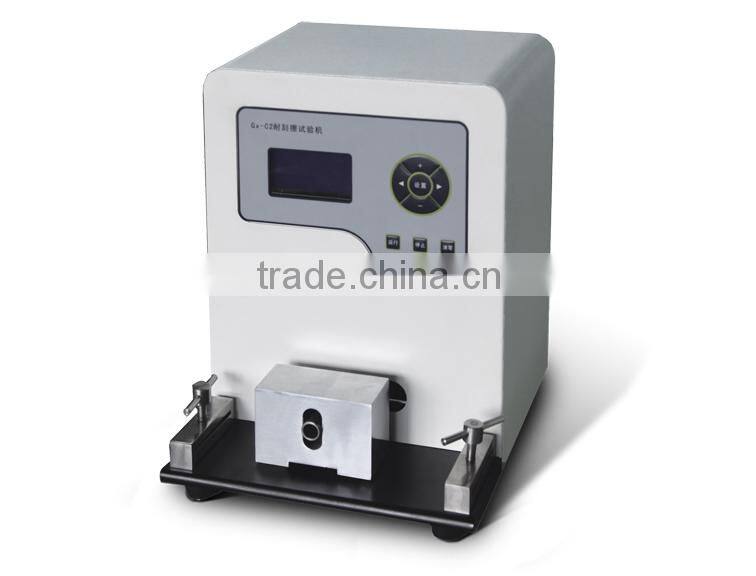

Gx-C1 Scratch Resistance Tester
Scratch Resistance Tester
Function and usage
To test the rub resistance of ink layer of printed (relief printing) material, rub resistance of light sensing layer of PS plate (presensitized plate), and rub resistance of the surface coatings of other products.
Application:
Features:
1 Microcomputer control, LCD display, film micro-control panel;
2. Testing parameters input by key, and having the memory function of power ;
3. An accurate implementation of national standards and is compatible with international standards;
4. Controlling and solving the problems of poor grade of print ink abrasion resistance, low rub resistance, easy to fall off and so on;
5. It is compatible with PS version of light-sensitive layer of abrasion resistance testing, analysis and forecasting PS version of the anti-print forces.
Technical Parameter:
Rub pressure |
20±0. 2N |
Rub speed |
43 times/min |
Rub area |
155×50mm |
Number of times of rub |
0-999 |
Sample size |
230×50mm (can join short samples together) |
Power |
40W |
Instrument size |
260×290×340mm |
Weight |
20KG |
