Film/paper Thickness Testing Equipment(GH-D))
Function and usage

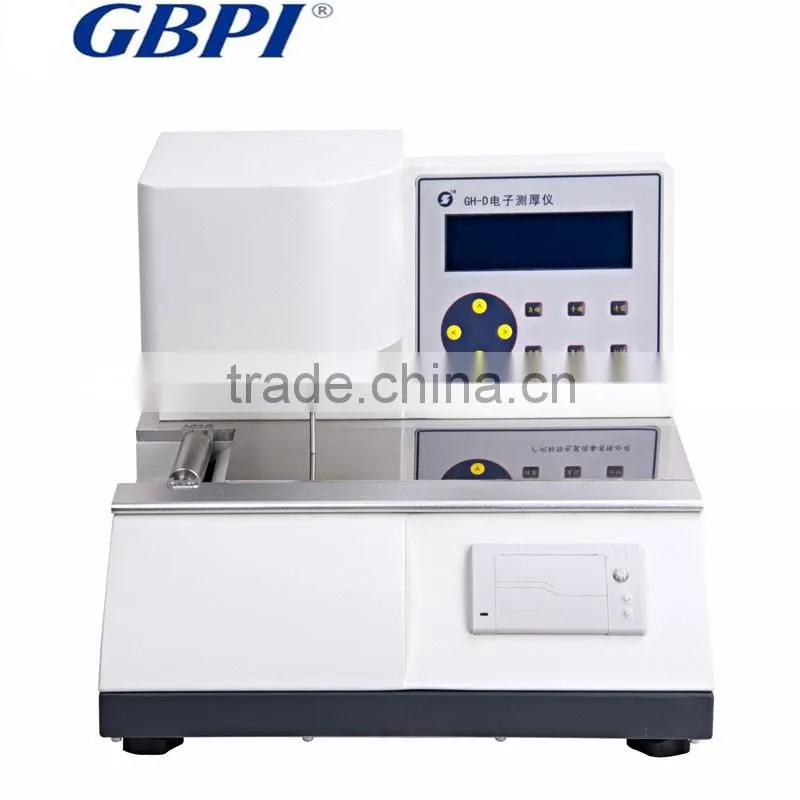

GH-D Digital Thickness Tester is a high accuracy digital thickness tester which is gathered with optics, mechanology, electronics and algorithm, easy operation. digital showing the measurement results, reset setting convenience clear up measurement error. Mainly make the direct or comparing measurement for plastic film, paper and so on.
Film/paper Thickness Testing Equipment(GH-D)
Application:
*Plastic Films
Rigid films, shrik films, stretch films, plastic films, plastic composite films, paper-plastic composite films,aluminized films, aluminum foil, aluminum composite films, high barrier films and many others. Eg. PET, OPP, CPP, LDPE, BOPP
*Meter foils and paper
Standards:
ISO 4593, ISO 534, ISO 3034, GB/T 6672, GB/T 451.3, GB/T 6547, ASTM D645, ASTM F 2251, ASTM D374, ASTM D1777, TAPPI T411, DIN 53105, DIN 53353, JIS K6250, JIS K6328, JIS K6783, JISZ1702, BS 3983, BS 4817
Techinical Parameter:
Measuring range |
0~1.5mm |
Accuracy |
0.1μm |
Sampling space |
0~1000mm |
Number of test points |
0~10 points |
Measuring force |
0.5N |
Sensor stick size |
Φ5mm (can customize) |
Environment temperature |
0~40℃ |
Power supply |
220V 50Hz |
Instrument size |
380x360x720mm |
Features:
1. High precision (0.1μm), digital display, stable, easy to operate.
2. Measuring mode: manual and automatic.
3. Single point and multiple points measurement.
4. Can adjust sampling space and number of test points.
5. LCD display, can print report.
6. Real time display of max, min, average and current values.
7. Can connect to computer, program controlled, automatic, software supported (optional).
After sale Service:
1. One year guarantee and all lifetime techinical support
2. USA, Australia Aisa Local agent for service
3. Speedy reply, 12hrs response to customer questions
4. Software free update
5. Minor maintenance ---parts ship within 24 hrs
6. Major maintenance---Technical will be sent within 15 days
About GBPI
GBPI is a professional manufacturer focused on developing
and producing packaging material test instruments. Founded in 2002, the company has received IOS9001 certification and reco gnized as high-tech enterprise and software enterprise by national authority. We hold numerous technology patents and software certificates from the national authority, and gained awards for technological progress.
