SGW-810 Light Transmittance Rate and Haze Test Instrument
Functions
WGT-S Light Transmittance Rate and Haze Test Instrument applies to test all transparent and semi-transparent parallel plane samples (plastic plates, sheets, etc.) light transmittance, haze test, liquid samples (water, drinks, etc.) and determination of turbidity or clarity. It is suitable for scientific research units, universities, plastic products, packaging films, coatings, printing ink and other related industries.
Standards
GB2410-2008, ASTMD1003-2007, JISK7105-81
Techinical Parameter
Warm-up time: 30min
Accuracy: light transmittance: 1%; haze degree: 0.1% for H ≤ 0.5%, 0.3% for H > 0.5%
Repeatability: light transmittance: 0.5%; haze degree: 0.05% for H ≤ 0.5%, 0.1% for H > 0.5%
Test range: light transmittance 0 ~ 100.0%, haze degree 0 ~ 30.00%
Minimum reading: light transmittance 0.1%, haze degree 0.01%
Instrument size: 740x270x320mm
Features:
l Optical system: collimating light, diffuse vision and integrating sphere receiving mode
l Sample window size: entrance window ø25mm exit window ø21m
l Light source:light source C(6774K), light source A(2856K)
l Receiver:silicon photocell
l Electronic system:LCD touching panel
l Data storage:can store 800 groups of testing data
l USB flash drive store data with USB port

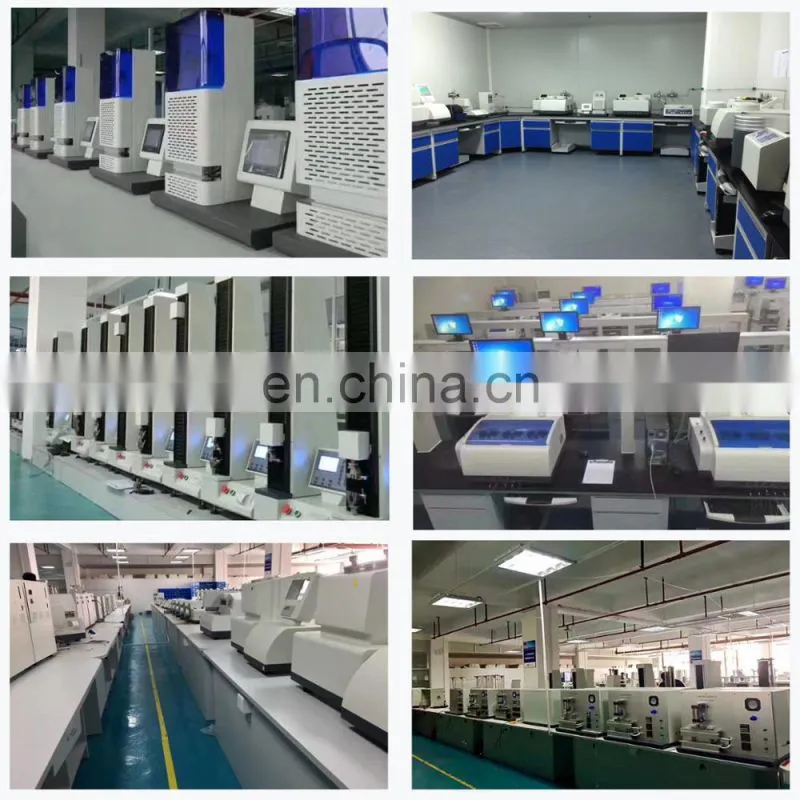

Factory View:
Certifications:
Our Customer:
Our Service:
1. One year guarantee and all lifetime techinical support
2. USA, Australia Aisa Local agent for service
3. Speedy reply, 12hrs response to customer questions
4. Software free update
5. Minor maintenance ---parts ship within 24 hrs
6. Major maintenance---Technical will be sent within 15 days
Our Lab:
Our Team:
Why Choose Us Contact Us?
1.We are the largest packaging test equipment manufacturer in China.
2. We are the only reference materail certificated supplier in the world.
3. Most of the provincial, municipal FDA using our testers in China.
