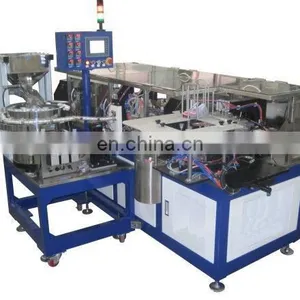

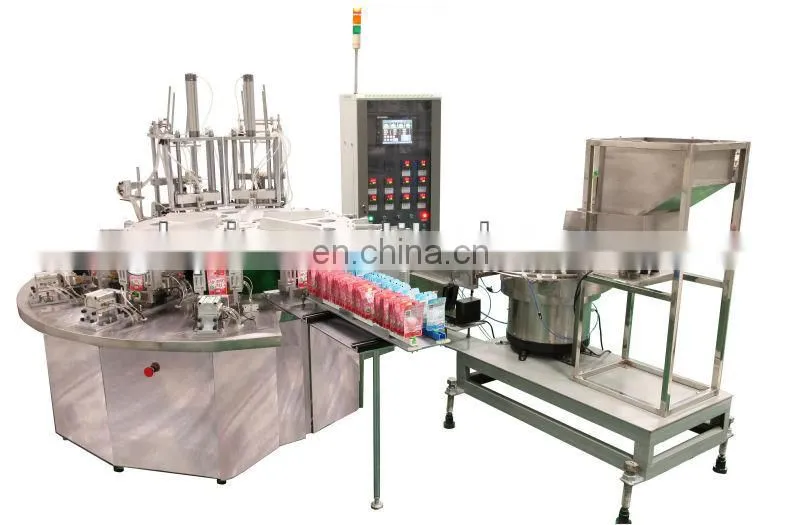

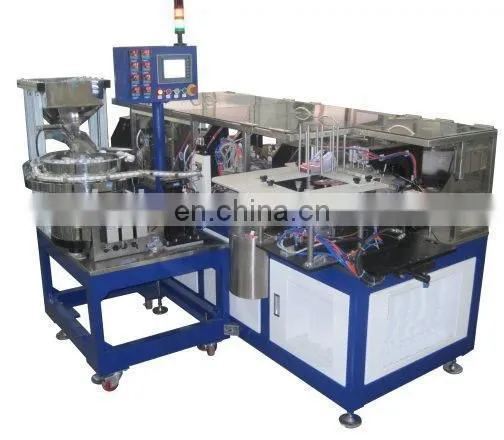

GF1600 Spout sealing machine
Technique features:
Specialist in spout fitting and sealing with self-standing pouches and penguin style pouches.
Adopt PLC controller, auto-transmitting tube and bag,
accurate control, steady run, it can work all day and all night.
Transmitting bag system adopt double work station, double efficient.
Heat sealing system adopt sub-step warming, cooling design.
Sealing knife can change to fit different tube.
Withdraw bag system adopt guide rail design, it is not only withdraw bag by manual but connect with production line by guide rail to meet different requirement.
Disk structure used, less space occupied.
Touch-screen display, easy operation
Error Codes automatic alarm display.
Usage:
The machine is used to weld a plastic spout to a flexible pouch .It is suitable for packaging drinks,jelly ,soy sauce,flavorings and cosmetics (milk,face mask ) etc.
Specifications:
Capacity :20~60pcs/min
Pouch size :L×W (100-320)×(70-120) mm
Power :AC 380V, 50HZ, 3P, 5KW
Cooling Water :5L/min
Dimension :Φ2120(diam.)×1000(mm)
Control Dimension :(L×W×H)600×600×1500(mm)
Weight :1200KG
After sale Service:
l 2 years coverage
l Speedy reply, 12hrs response to customer questions
l Software free update
l Minor maintenance ---parts ship within 24 hrs
l Major maintenance---Technical will be sent within 15 days
l Free inhouse training for customer operator
Certificate:
Our customer:

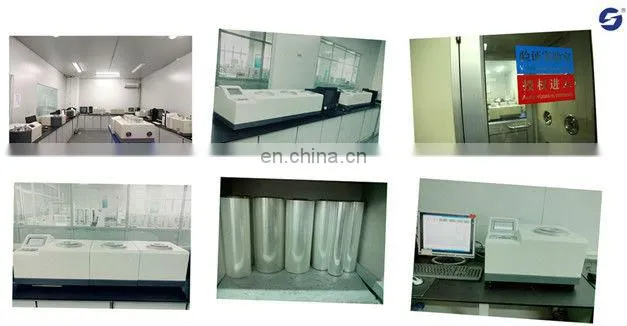

Our Laboratory:
Our team:
