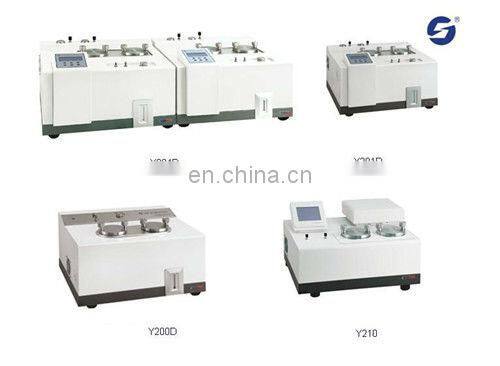

Help CenterFlexible Package Oxygen Permeability Analyser (ASTM D3985-1995)
Related Products
-
Y201D Oxygen Transmission Rate Tester,films Oxygen Permeation Tester, Plastics Oxygen Permeability Tester,US$ 5.00 - 15.00MOQ: 1 Set -
Gas Transmission Rate TesterUS$ 5.00 - 15.00MOQ: 1 Set
-
N500 Gas Transmission Rate AnalyzerUS$ 5.00 - 15.00MOQ: 1 Piece
-
Gas Transmission Rate Tester Air Permeability AnalyzerUS$ 20,000 - 30,000MOQ: 1 Set
-
Gas Permeability AnalyzerUS$ 5.00 - 15.00MOQ: 1 Set
Oxygen Permability rate Tester – Coulometry theory Method
Standards:
ASTM D 3985-1995, ASTM F 1927-1998, ASTM F 1307-1990, YBB00082003, ISO 15105-2:2003, DIN 53380-3-1998, JIS K-7126 ; GB/T 19789-2005,
Function:
To test package oxygen transmission rate.
Application :
* Films
rigid films, shrik films, stretch films, plastic films, plastic composite films, paper-plastic composite films,aluminized films, aluminum foil, aluminum composite films, high barrier films and many others. Eg. PET, OPP, CPP, LDPE, BOPP
* Sheet
engineering plastics, rubber, waterproof building materials, and thermal insulation materials, e.g. PP, PVC, PVDC, and nylon
*Packages
paper, plastics, rubber, paper, paper-plastic composite, glass, and metal packages, eg: bottles, containers,
Techinical Parameter
Item |
Y201D |
Y204D |
Y210 |
Y200D |
Test range |
0.02~16500 CM3/M2/day (with large the test chamber, the max testing range can reach 260000cm3/m2/day, 0.01~82 cm3/pkg/24h( package) |
0.1~8500 CM3/M2/day |
||
Test accuracy |
0.001 cm3/m2/day |
0.01 cm3/m2/day |
0.1 cm3/m2/day |
|
humidity range |
0%RH, 30~90%RH,100%RH |
|
||
humidity accuracy |
±2%RH |
±1%RH |
±1%RH |
|
ntrol range |
20~35°C |
15~45°C |
15~45°C |
23±2°C |
Temp. accuracy |
±0.1°C |
|
||
Test area |
Φ80mm,50.24cm2 |
|||
Specimen quantity |
4pcs |
2pcs
|
||
Specimen thickness |
≤2mm |
|||
Pressure |
0.2-0.3Mpa |
|||
Features:
1, Automatic test, use friendly,
2, High-precision sensors with over-range protection, continuous data collection, accurate and reliable data;
3, Two calibration methods of standard gas calibration and standard film calibration,
4, Versatile functions such as the auto leakage protection function, automatically judges and stops;
5. Double chamber pressure control and pressure automatic balance.
6. Superior components ,multi-level security protection design;.
7. Versatile operation language support.
Service
1: One year guarantee and all lifetime techinical support
2: USA, Australia Aisa Local agent for service
3 Speedy reply, 12hrs response to customer questions
4 Software free update
5. Minor maintenance ---parts ship within 24 hrs
6 Major maintenance---Technical will be sent within 15 days
Certificates:
Our laboratory:
Part of our customer:
Our team:
