MODULAR DESIGN 200W RECESSED MODULAR DESIGN LED CANOPY LIGHT

US$ 1 - 1 MOQ: 1 Set

Key Specifications

Business Type:

Manufacturer

Year Established:

2015

Annual Export Value:

Above US$100 Million

Hangzhou ZGSM Technology Co., Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO or Shanghai

Delivery Detail:

7 days

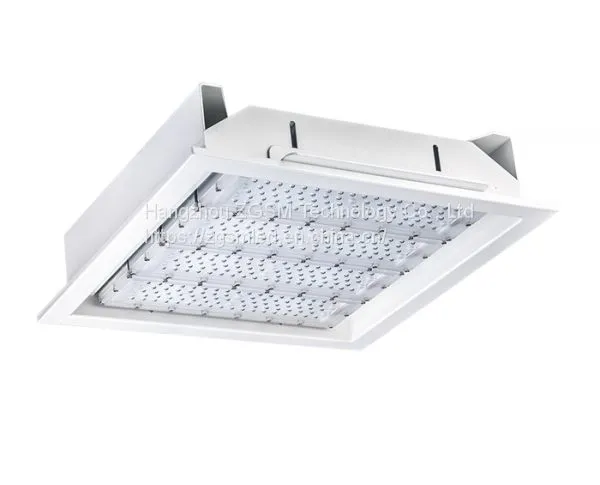

MODULAR DESIGN 200W RECESSED MODULAR DESIGN LED CANOPY LIGHT

Petrol station LED Canopy Light

Series A5 Recessed LED Canopy Light

Model:

ZGSM-QD200A5

Applications：

Gas station | Toll station | Petrol station

1. Wide power range: 40W~200W.

2. Special circuit design, single LED’s damage won't affect others' normal work.

3. Modular design for easy installation, replacement and maintenance.

4. High Lumen output up to 140lm/ w with high quality LED chips.

5. Multiple lighting control options are available, e.g. DALI, 1-10V, motion sensor.

6. Designed to last at least 100,.000 hours at L70.

7. Multiple lighting distributions are available.

8. Multiple lighting distributions are available.

SPECIFICATIONS

Model	ZGSM-QD200A5
LED Brand	Lumileds LUXEON 3030
Driver Brand	Meanwell HLG series
Norminal Wattage	200W
LED Module Quantity	4 modules
Input Voltage	100-240/277/347/480VAC
Power Efficiency	>90%
Power Factor	>0.95
Lamp Rated Luminous Efficiency	135 lm/w
Lamp Rated Lumen output	27000 lm (Lumen tolerance +/- 5%)
Color Rendering Index	70 (80 is optional)
Color Temperature	3000K, 4000K, 5000K or 5700K
Photometric Type	110 degrees
Optimal Operating Temperature	25℃
Storage Temperatures	-40°C~50°C
Working Environment	Between-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion
Lumen Maintenance	> 100,000 hours -L70, @25 ºC (77 ºF)
Body	Stretching Aluminum
Cover	PC lens
Rating	IP65 IK10
Protection	Class I ( Class II optional)
Certification	CE,ROHS,LM80
Dimming Options	1-10V or DALI or PWM or Timer
Control Options	Motion sensor or Smart control
Color Options	White
Warranty	7 years
