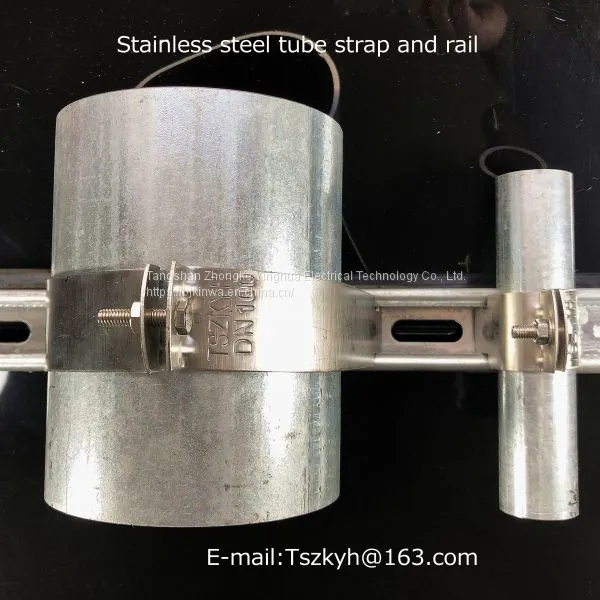

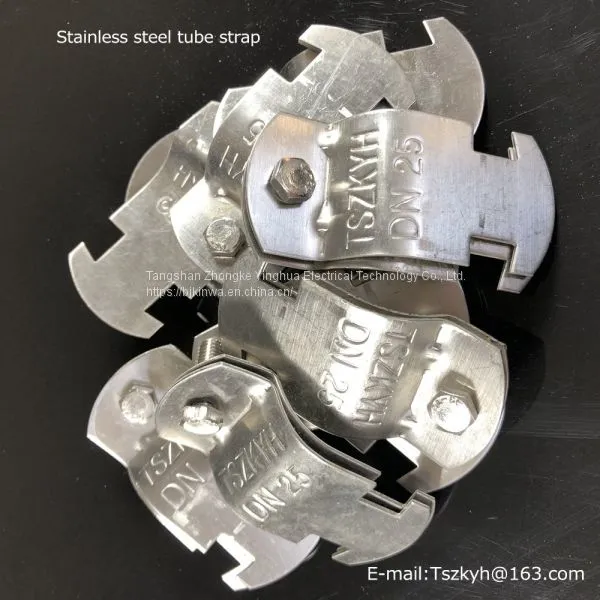

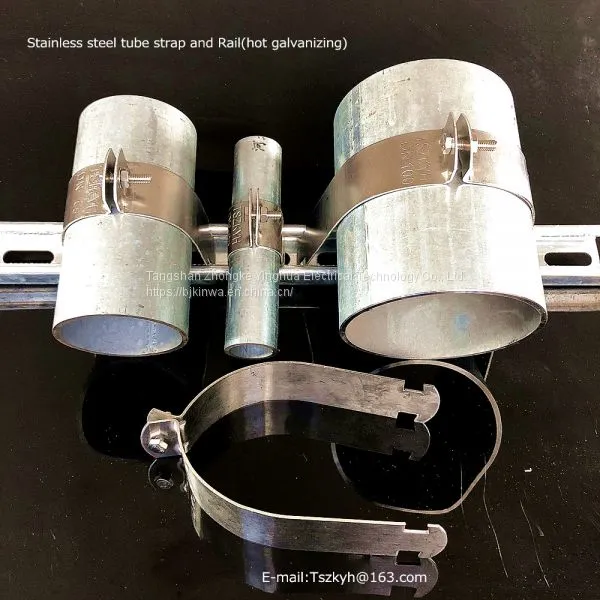

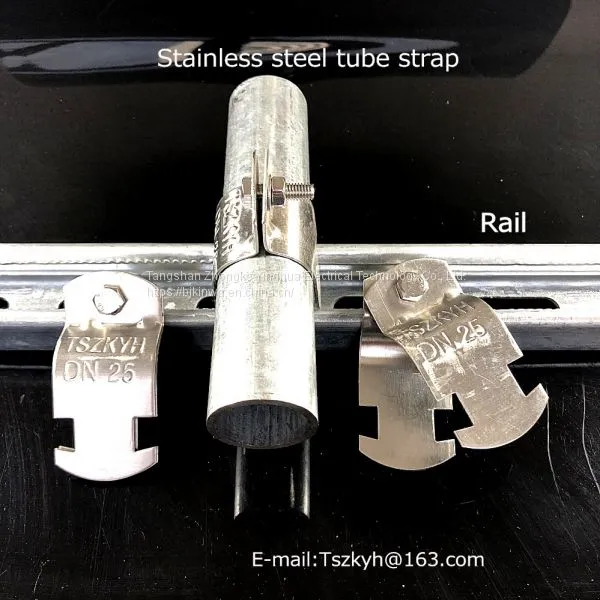

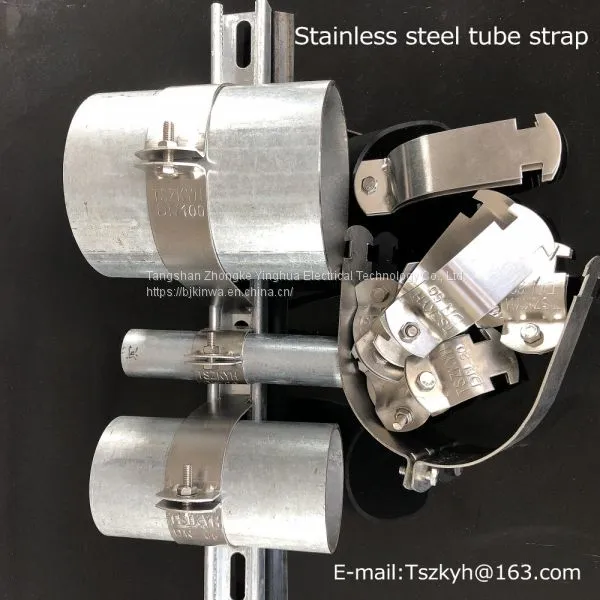

Product name: Stainless steel tube strap, pipe clamp
Product description: fix any duct on a wall with a rail. The rail is fixed on a wall to get support from the wall. Pipe clamp and rail both are anti-slip texture. The bottom of the rail is equipped with0.3 inches diameter hole for installation. expansion bolt. Different diameter duct can be fixed in one rail.
Stainless steel tube strap size:
Stainless steel tube strap diameter size |
Thickness of material |
1/2inch (DN15mm) |
1.2mm |
3/4inch (DN20mm) |
1.2mm |
1inch (DN25mm) |
1.2mm |
1-1/4inch (DN32mm) |
1.2mm |
1-1/2inch (DN40mm) |
1.2mm |
2inch (DN50mm) |
1.5mm |
2-1/2inch (DN65mm) |
1.5mm |
3inch (DN80mm) |
1.5mm |
4inch (DN100mm) |
1.5mm |

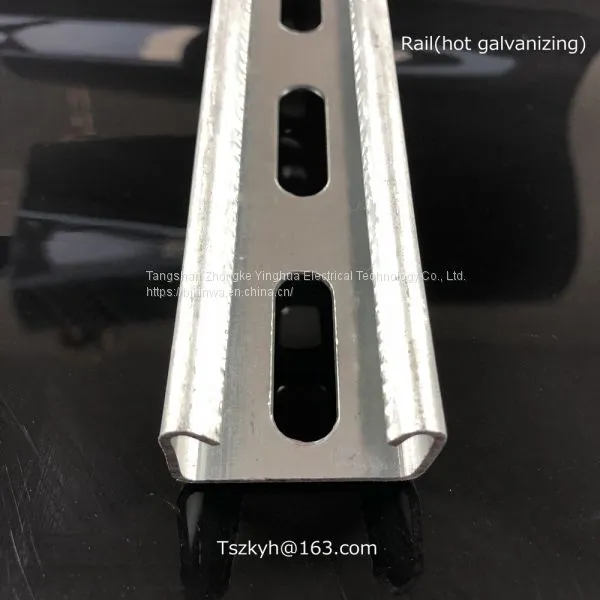

Rail(hot galvanizing) size:
length |
width |
height |
Thickness of material |
200mm |
40mm |
20mm |
2mm |
