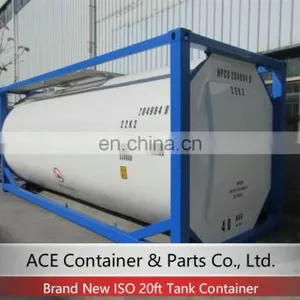

ASME Standard LR certified T11 20ft ISO Tank Container
- 1000 Piece / Pieces per Month
- T/T Credit Card
- ASME Standard 20ft T3 Portable Insulated Bitumen Tank Container
- Heavy Duty Insulated and Fire Heated 20ft Asphalt Bitumen Transportaton Tank Container
- Fire Heating or Electric Heating 20000L Bitumen Transportation Tank Container
- ISO Standard Tank 20ft Bulk Cement Container
- 20ft Bulk Lime Powder ISO Tank Container
- ASME Standard Brand New Food Grade T11 20ft ISO Tank Container
Product Details
Brand Name: | ACE | Place of Origin: | Tianjin, China | Type: | Tank Container |
Product Description
ASME Standard LR certified T11 20ft ISO Tank ContainerProduct Description
1. Product Introduction:
- Approval by BV, LR, CCS.
- Meet requirement of IMO/IMDG, ISO, UN, CSC, TIR, UIC, TC, ADR/RID
- Materials: Main body: Corten-A steel, Vessel: Stainless Steel 316L
- With Cleanliness Certificate
- Testing Pressure: 6 bar
- Working Pressure: 4 bar
- Insulation: Rockwood
- Design Code: ASME and GB standard.

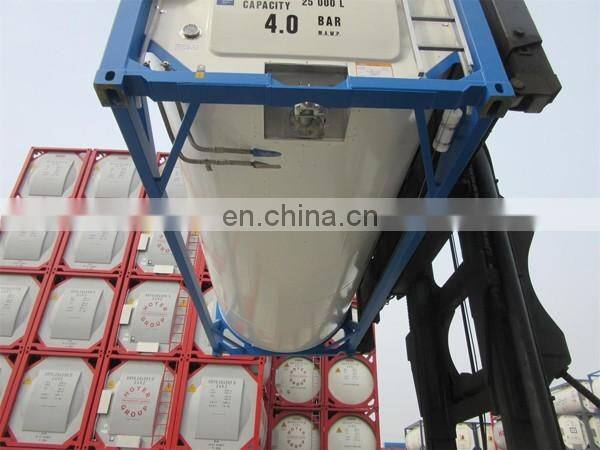

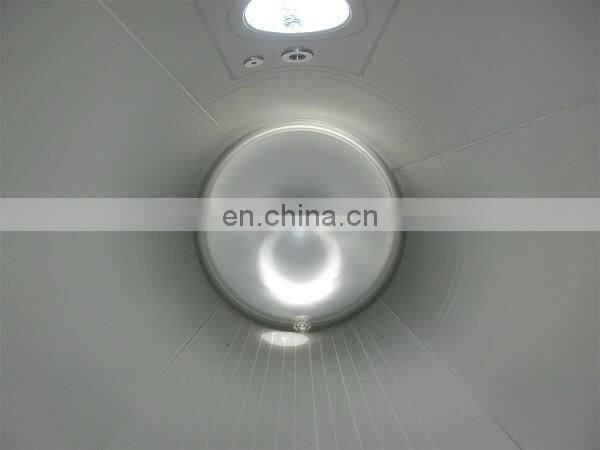

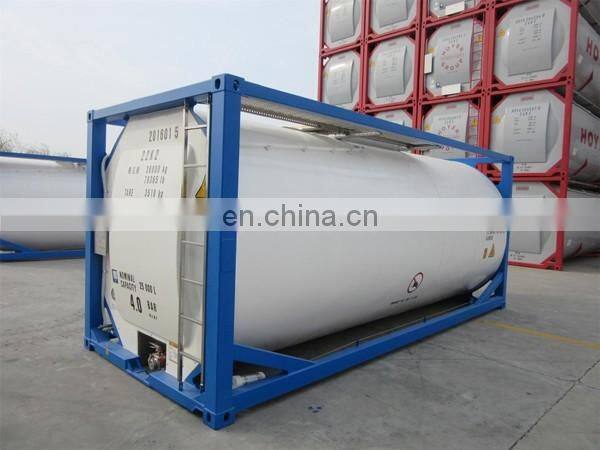

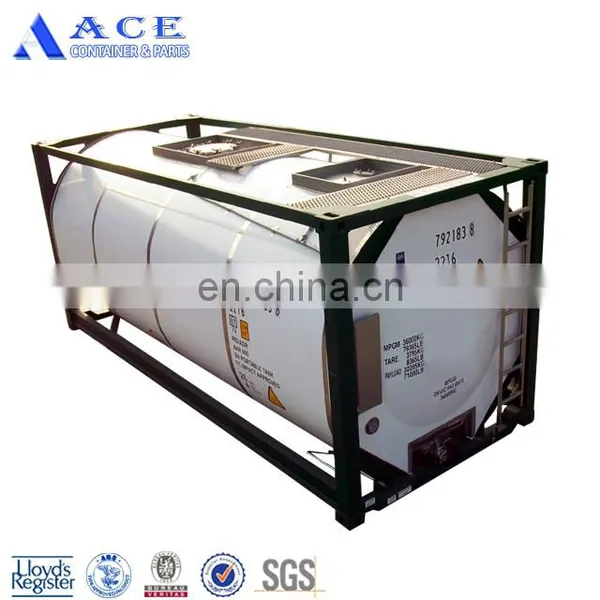

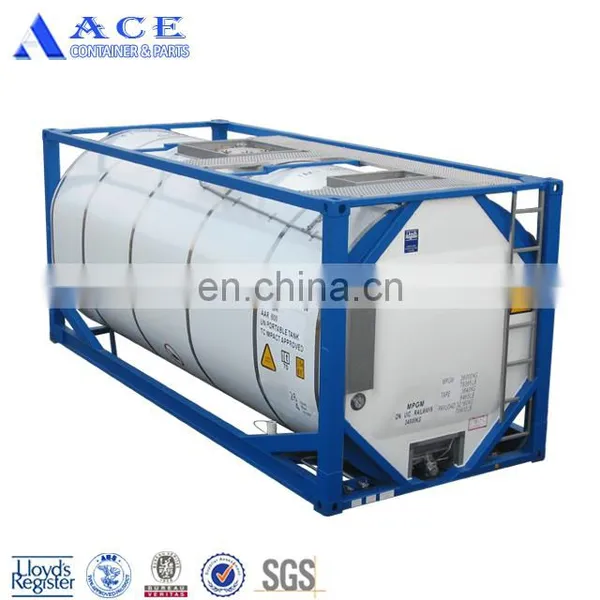

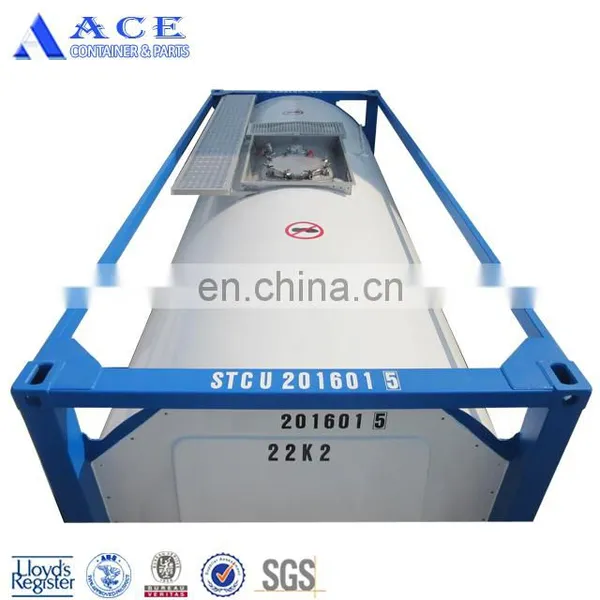

2. Photos Display:
3. Specifications of iso tank container:
Specifications(UNT11 Portable Tank): | |||
Frame Dimensions (L x W x H) | External | 6058 x 2438 x 2591 | MM |
20 x 8 x 8.5 | FT | ||
Max. Capacity (Nominal) | 21,000L 24,000L 25,000L 26,000L 31,000L 33,000L 35,000L | L | |
Max. Gross Mass | 36,000 | KGS | |
Tare Mass (Nominal) | --- | KGS | |
Max. Payload | 32450 | KGS | |
Pressure | Working pressure | 4.0 | Bar |
Test pressure | 6.0 | Bar | |
Design Temperature | Frame | -40 to +130 ℃ | |
Tank | |||
Material | Frame | SPA-H,Q345D or equivalent | |
Tank | 316L/SAN50028-7/WNr 1.4402/1.4404 | ||
Insulation | Shell | Rock wood(50kgs/M3), Max thickness 50mm | |
Ends | Rock wood(16kgs/M3) | ||
Steam Heating | 6 runs, 110mm width stainless steel 304 | ||

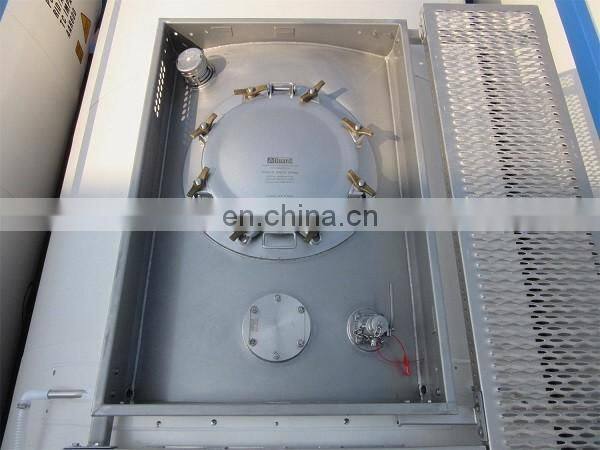

Manhole | 500 low TIR provision, 8 point fixing with super tanktyt Lid seal | ||
Safety Relief | 2½” BSP Supermaxi Highflow relive, without gauze, Pressure only set at +4.4 bar (63.8psi). | ||
Air Inlet Assembly | 1.5 BSP air inlet with 1 1/2BSP connection, | ||
Bottom Discharge | 3 stainless steel foot-valve with butterfly valve and blank flange / 3 BSP cap and chain. | ||
Top Discharge | Provision only | ||
Document holder | A clear plastic document holder ø 110mm is fitted to the rear right hand side beam. | ||
Decals | One set of mandatory decals is fitted. | ||
Data Plates | One set of stainless steel data plates | ||
Calibration | Yes, have it | ||
Stacking | Each container is approved for 9 high stacking. | ||
Approval | Lloyds or BV Construction Certificate, IMDG, CFR49, ADR/RID, AAR 600, CSC, TC, TIR, ISO UIC, US/UK DOT |
4. The Production and Inspection Process:
ACE Container is a professional Container & Parts supplier in China, Gloden Member in Alibaba, Trade Assurance Serive in Alibaba. Also ACE Container has exported products to over 55 countries until to end of 2015.
- Our Main Business Line: All kinds of Dry Cargo Container, Reefer Container, Off shore Container, Dry Container Parts and Container Lashing Equipments.
- Our Main Market: USA, Canada, Southeast Asia, Australia, New Zealand, Middle East, Middle and West Europe.
Exported Countries:

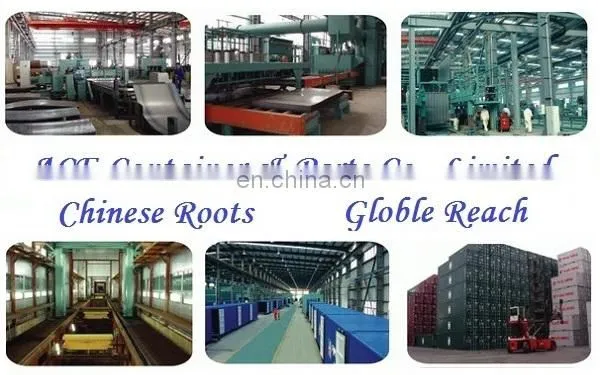

Work Shop:

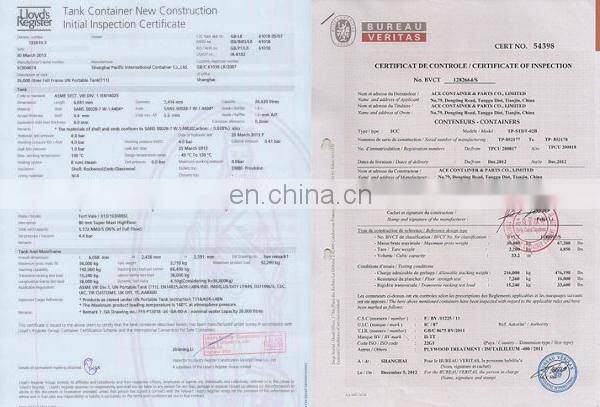

Certificate of iso tank container:
4.1. Are your 20ft iso tank container brand new?
Yes, all the container we provided are brand new. In fact, we will produce new container after order confirmation.
4.2 Does your iso tank containers price meet with international requirement?
Yes, all of our container will be approval by BV or LR or CCS and meet with below requirement for named Tank Container.
ISO 1496/3
UN Transport of Dangerous Goods
UIC International Rail Approval
TIR International Transport Goods under Custom Seal
CSC International Convention for Safe Containers
DOT US Code Federal Regulations CFR49
DOT UK Carriage of Dangerous Goods
CTC Canadian Transport Commission (Rail)
AAR American Association of Railroads
FRA Federal Rail Association USA
BAM G.D.R Domestic Approval
ISO/TC11
4.3 Can you provide Drawings for confirmation?
Yes, we will provide drawing after order confirmed before production
4.4 Do you have Small or Large Volume Tank Container?
Sure, we could do Tank Container form 1000L to 60000L. And could produce offshore Tank as per DNV2.7-1 / EN12079 Standard.
4.5 Do you provide OEM Service?
Yes, we have a first-class team and could design as per your requirement.
