Fire Heating or Electric Heating 20000L Bitumen Transportation Tank Container
- 1000 Piece / Pieces per Month
- T/T Credit Card
Product Details
Brand Name: | ACE | Place of Origin: | Tianjin, China | Type: | Tank Container, UN portable tank T-3 |
Product Description
Fire Heating or Electric Heating 20000L Bitumen Transportation Tank Container
1.1 General introductions:
1.1.1 Approval by BV, LR, CCS.
1.1.2 Meet requirement of IMO/IMDG, ISO, UN, CSC, TIR, UIC, TC, ADR/RID
1.1.3 Materials: Main body: Corten-A steel, Vessel: 16MnDR
1.1.4 Cargo Carrier: Bitumen

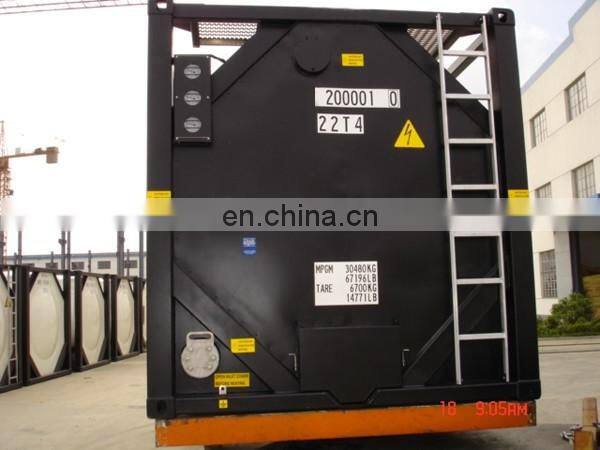

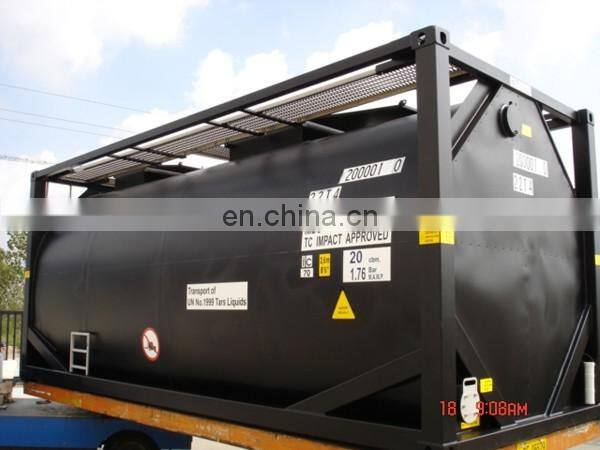

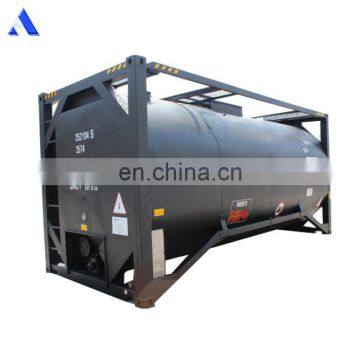

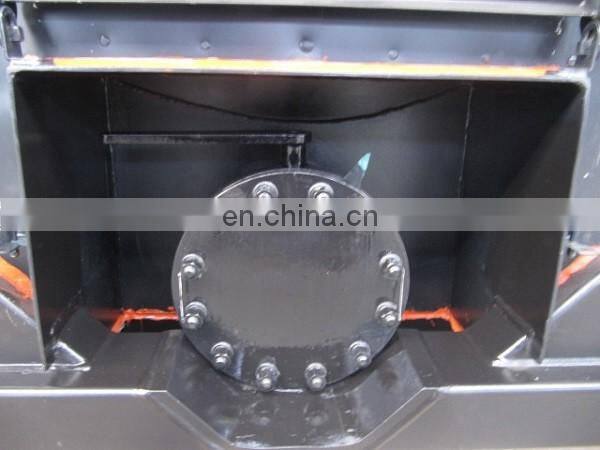

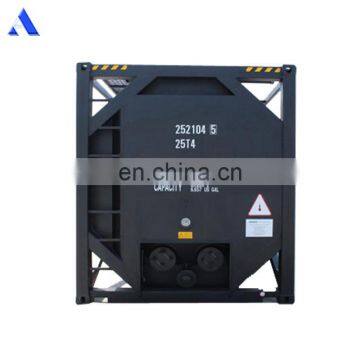

1.2 Picture Display_20ft bitumen tank container:
1.3 Specifications_20ft bitumen tank container:
Specifications(UN T3 Portable Tank): | |||
Frame Dimensions (L x W x H) | External | 6058 x 2438 x 2591 | MM |
20 x 8 x 8.5 | FT | ||
Max. Capacity (Nominal) | 20,000 | L | |
Max. Gross Weight | 30,480 | KGS | |
Tare Weight (Nominal) | 6,700 | KGS | |
Stacking | 192,000 | KGS | |
Pressure | Working pressure | 1.76 | Bar |
Test pressure | 2.65 | Bar | |
Design Temperature | Frame | -20 to +170 ℃ | |
Tank | |||
Material | Frame | SPA-H,Q345D or equivalent | |
Tank | 16MnDR | ||
Thickness | Shell | 6.0mm | |
Ends | 6.0mm after forming | ||
Corner Casting | SCw49, ISO1161, 8pcs | ||
Data Plates | One set of stainless steel data plates | ||
Design Code | ASME VIII Div 1 | ||
Approval | Lloyds or BV Construction Certificate, IMDG, CFR49, ADR/RID, AAR 600, CSC, TC, TIR, ISO UIC, US/UK DOT |

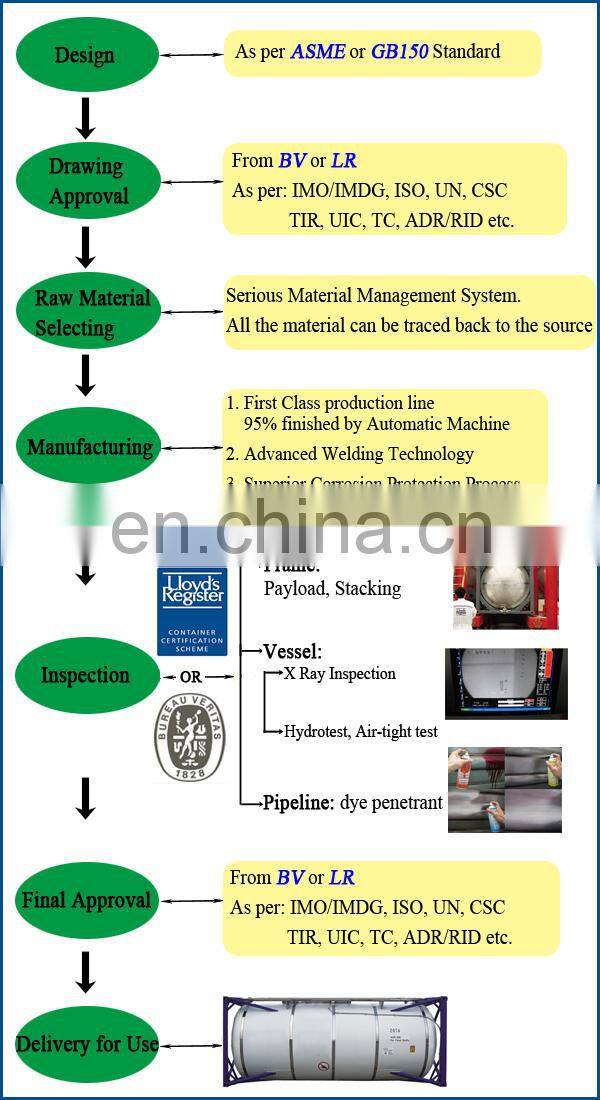

1.4 Production and inspection process_20ft bitumen tank container:
1.5 Click Here and view more products.
1.61. Dry Containers: 10ft, 20ft, 40hc, 45hc, Flat Rack, Side Door, etc.
1.62. Reefer Containers: 8ft, 10ft, 20ft, 40hc, 45hc etc.
1.63. Tank Containers: 10ft, 20ft, 40ft, 45ft, etc
1.64. Offshore Equipment: Container, Basket, Reefer, Workshop, etc.
1.65. Full range of Container Parts
1.66. Lashing Equipment: Twist Lock, Bridge Fitting, Turnbuckle etc.
1.67. Trailer Parts: Twistlock, Gearlock, etc.
ACE Container is a professional Container & Parts supplier in China, which has over 10 years experience in this line, 7 years Golden Member in Alibaba, Trade Assurance Service in Alibaba. Also ACE Container has exported products to over 80 countries. And we have got the approval of SGS.
· Our Main Business Line: All kinds of Dry Cargo Container, Reefer Container, Off shore Container, Dry Container Parts and Container Lashing Equipments.
· Our Main Market: USA, Canada, Southeast Asia, Australia, New Zealand, Middle East, Middle and West Europe.
With development of container line, we are also further extending and improving our service, please check as follows:
- Buyer’s Logo and Color.
- 45 day’s Free stock in our CY
- Clearing Customs for the container for free.
- Supply "Storage Service". We have storage in Tianjin, Shanghai, Ningbo, Guangzhou port.
- Arrange “One Way” service to some mian ports.
- OEM Tank is available
- Accept third party inpection and testing
3.1. Are your 20ft bitumen tank container brand new?
Yes, all the container we provided are brand new. In fact, we will produce new container after order confirmation.
3.2 Does your 20ft bitumen tank container meet with international requirement?
Yes, all of our container will be approval by BV or LR or CCS and meet with below requirement for named Tank Container.
ISO 1496/3
UN Transport of Dangerous Goods
UIC International Rail Approval
TIR International Transport Goods under Custom Seal
CSC International Convention for Safe Containers
DOT US Code Federal Regulations CFR49
DOT UK Carriage of Dangerous Goods
CTC Canadian Transport Commission (Rail)
AAR American Association of Railroads
FRA Federal Rail Association USA
BAM G.D.R Domestic Approval
ISO/TC11
3.3 Can you provide Drawings for confirmation?
Yes, we will provide drawing after order confirmed before production
3.4 Do you have Small or Large Volume Tank Container?
Sure, we could do Tank Container form 1000L to 60000L. And could produce offshore Tank as per DNV2.7-1 / EN12079 Standard.
3.5 Do you provide OEM Service?
Yes, we have a first-class team and could design as per your requirement.
