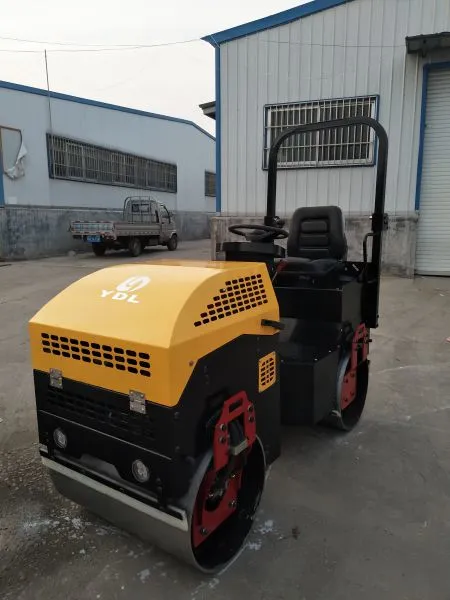

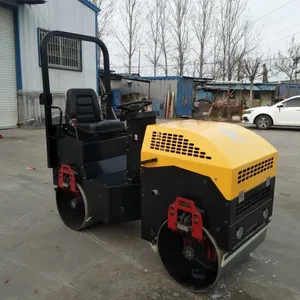

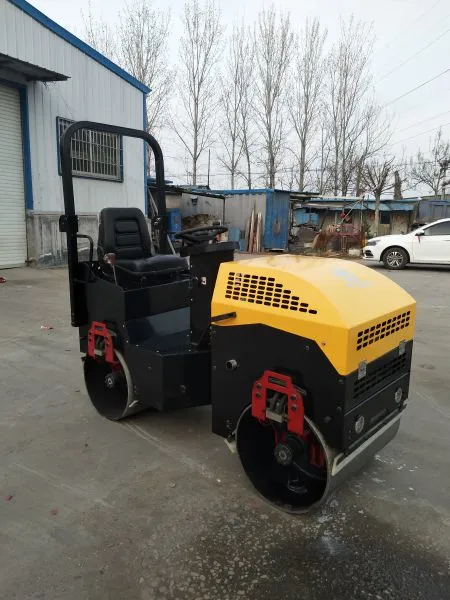

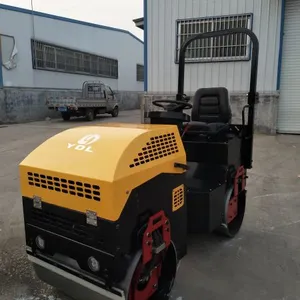

Help CenterVibratory Compactor Vibratory Steel Drum Roller
Related Products
-
Steel Drum Roller Gasoline Engine Hand PushUS$ 1 - 10000MOQ: 1 Piece -
Power Road Roller Double Drum RollerUS$ 1 - 10000MOQ: 1 Piece
-
3 Ton Double Drum Vibratory Double Drum Vibratory RollerUS$ 1 - 10000MOQ: 1 Piece
-
Diesel Vibratory Soil Vibratory Steel Drum RollerUS$ 1 - 10000MOQ: 1 Piece
-
Compaction Equipment 3 Ton Double DrumUS$ 1 - 10000MOQ: 1 Piece
Technical Data
Model |
YDL-2.0 |
YDL-1.0 |
Power |
Gasoline:20HP Diesel:25HP |
Gasoline:13HP Diesel:9HP |
Walking speed |
0-8km/h |
0-5km/h |
Drive way |
Full hydraulic transmission |
Full hydraulic transmission |
Walking way |
Bidirectional |
Bidirectional |
Steel size |
Φ560*900mm(front) Φ560*900mm(Rear) |
Φ560*740mm(front) Φ560*800mm(Rear) |
Vibration force |
30KN |
25KN |
Vibration frequency |
65HZ |
70HZ |
Vibration clutch |
Hydraulic vibration |
Electromagnetic clutch |
Climbing Capacity |
30% |
30% |
Weight |
1900kg |
1100kg |
Main Features
1, Honda gasoline engine or domestic well-known brand gasoline engine, diesel engine, brand name quality assurance, superior performance, easy to start
2, small radius of operation, can work in a narrow area.
3, the transmission mechanism adopts the domestic hydraulic transmission system, infinitely variable speed, easy to change direction and strong service life
4, Adopt well-known brand bearing and triangle belt to ensure machine quality.
5, diesel power electric start, gasoline engine manual start, light and flexible.
Packaging Details
WOODEN PACKAGE
Port
QINGDAO
-
Lead Time :
Quantity(Sets) 1 - 5 >5 Est. Time(day) 5 To be negotiated
