1. Brief Introductions of BXZ-2 backpack core drilling rig
BXZ-2 double person backpack core drill is a revolutionary portable geological core drilling rig that is made in China. If you want to buy a backpack drilling rig with big horse power, please identify "Huaxia Master" backpack drill. This portable rig is specifically for mineral investigation, oil exploration, geological research and exploration. We have ten years experience of producing core drilling rig. Shandong Master Machinery Group Co.,Ltd believes that the backpack drilling rig will give you great satisfactions and get your work done perfectly.
1. Applications of BXZ-2 backpack core drilling rig
l mineral prospecting
l geotechnical engineering
l geoscientific research
l tunnel lining
l inflected arch detection
l highway engineering geological exploration
l hydraulic engineering geological exploratory
l oil exploration
l lode prospect
2. Features
l compact & portable
l simple to operate
l easy to assemble and disassemble
l convenient to move
l ideal choice to work in remote location
3. Configuration list of BXZ-2 drilling rig
Item |
Parameter |
Unit |
Quantity |
Drilling rig engine |
Kohler 7.75HP |
Set |
1 |
Drill pipe |
33*700mm |
pc. |
28 |
Drill pipe joint |
33*100mm |
pc |
28 |
Core barrel |
33*600mm |
pc |
1 |
Reducing nipple |
pc |
1 |
|
Alloy bit |
33mm |
pc |
1 |
Composite bit |
33mm |
pc |
1 |
Diamond bit |
33mm |
pc |
1 |
Manual mud pump |
set |
1 |
|

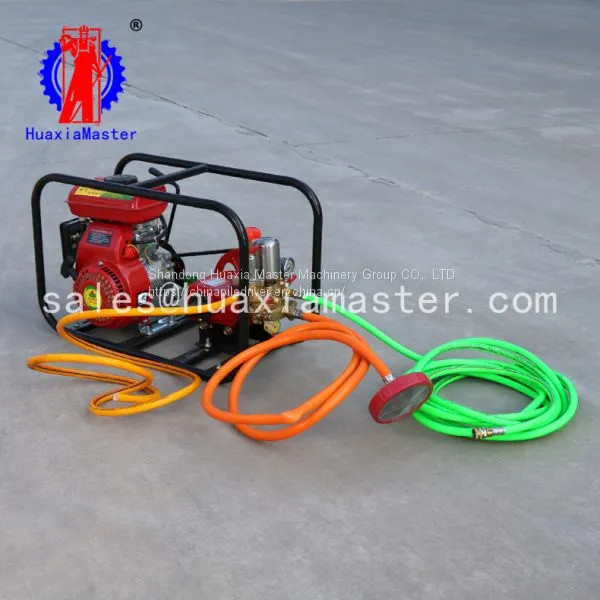

Mud pump ( gasoline engine) |
high pressure |
platform |
1 |
Maintenance kit |
gasoline slurry pump |
set |
1 |
Inlet hose pipe |
set |
1 |
|
Inflow water filter |
pc |
1 |
|
Outlet hose pipe |
set |
1 |
|
Safety plate |
pc |
1 |
|
Safety clamp |
pc |
1 |
|
Pipe wrench |
pc |
1 |
|
Specialized backpack |
pc |
1 |
Shandong Master Machinery Group Co.,Ltd.
Sales Manager：Ruby Chen
Wechat: 18865479510
Whatsapp：0086 18865479510
QQ：3048400352
Sales hotline：400-167-0537
Tel: 0086-18865479510
Website: （英文）
(中文)
BXZ-2L Vertical Backpack Drilling Rig
1. Brief introduction of BXZ-2L backpack drilling rig
BXZ-2L vertical knapsack core drilling rig is a removable core sample drilling rig. The rig is mainly used in mineral exploration, geochemical exploration, shallow sampling, geoscience research, geotechnical engineering, engineering investigation, oil field exploration, water conservancy engineering survey, highway engineering survey and so on.
The main features of BXZ-2L vertical backpack core drilling machine are compact structure, detachable, small volume, light weight, easy to carry; imported kohler brand gasoline engine with large horsepower and guaranteed drilling depth with drilling frame. Field operation is more convenient and safe.
2. Specifications of BXZ-2L drilling rig
BXZ-2L drilling rig | |
Engine brand |
Kohler |
House power |
7.75 HP |
Fuel tank capacity |
1400 ML |
Transmission mode |
gear-driven |
Starting mode |
recoil pull starter |
Clutch mode |
automatic clutch |
Coring mode |
rotary |
Rate of penetration |
540r /min |
Gear ratio |
7:1 |
Transmission mode |
CVT (continuously variable transmission) |
Drill pipe diameter |
32mm |
Drill pipe total length |
30m |
Drill hole diameter |
32-120mm |
Net weight |
52 kg |
Size |
550*450*420mm |
Packing measurement |
1050*600*550mm |
3. Configuration List of BXZ-2L backpack drilling rig
Item |
Parameter |
Unit |
Number |
Drill rig including stand |
BXZ-2L |
Set |
1 |
Drilling pipe including joint |
32 *800 mm |
pc |
38 |
Reducing nipple |
46 mm |
pc |
1 |
Coring barrel |
46 *700 mm |
pc |
1 |
Alloy bit |
46 |
pc |
1 |
Diamond bit |
46 |
pc |
1 |
Reducing nipple |
60 |
pc |
1 |
Coring barrel |
60*700 mm |
pc |
1 |
Alloy bit |
60 |
pc |
1 |
Diamond bit |
60 |
pc |
1 |
Mud pump (gasoline engine) |
set |
1 |
|
Inlet hose pipe |
20*1000 mm |
pc |
1 |
Inflow water filter |
pc |
1 |
|
Outlet hose pipe |
13*1000 mm |
pc |
1 |
Water supply pipe |
13*4500 mm |
pc |
1 |
Safety clamp |
grasp |
1 |
|
Pipe wrench |
grasp |
2 |
|
Safety plate |
pc |
1 |
|
Spark plug |
pc |
1 |
|
Ring gasket |
Set |
1 |
|
Water seal |
Set |
1 |
Shandong Master Machinery Group Co.,Ltd.
Sales Manager：Ruby Chen
Wechat: 18865479510
Whatsapp：0086 18865479510
QQ：3048400352
Sales hotline：400-167-0537
Tel: 0086-18865479510
Website: （英文）
(中文)
