Size: 50-400mm Capacity: 24-2400m3/h Head: 13.5-59m Power: 7.5-315m Max. particle: 60mm Materials: High chrome alloy, Cast iron, SS304, SS316L, Duplex SS etc

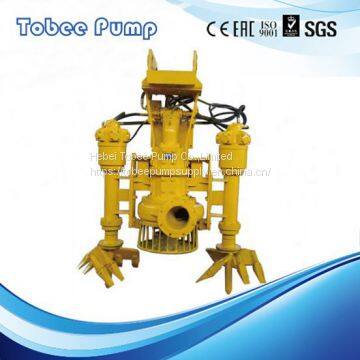

Hydroman™ Submersible Sand Pumps are a world’s standard submersible agitator pump, Capable of transporting up to 70% solids, this pump is born to dredge and has earned itself a ‘solids-handling’ reputation for reliability and durability in the world’s toughest applications, The wear parts are made from high chrome alloy, It is widely used in pumping sand, sludge, ore slurry, coal slurry, sand-stones containing big solid particles etc.
Design Features:
√ The whole machine is dry submersible pump and the motor adopts oil chamber seal mode and is provided with mechanical seal inside, so high pressure water and impurities are effectively prevented from entering inner cavity of the motor.
√ Besides the main impeller,there is the agitation impeller which can agitate the sludge deposited on the water bottom into turbulent flow and pump the sludge out.
√ The overflowing parts such as the impeller and the agitation impeller are made from high-hardness high chromium cast steel, have wear resistance, corrosion resistance, strong drainage capacity and allow big solid particles to pass.
√ Impeller, agitation impeller and other major wet parts using high wear-resistant material manufacturing, wear-resistant , corrosion resistance, non-clogging blowdown ability , can be through larger solid particles effectively.
√ No limitation by suction head , high efficiency suction slag , more thoroughly cleaning
√ No equipped with auxiliary mixing or spraying devices , operation more convenient.
√ Agitation impeller direct contact deposition surface, control concentration through dive depth , therefore concentration control more comfortable
√ The motor is submerged in water and is not limited by suction stroke. It has high sludge suction rate and thorough desilting.
Hydroman™ TSQ Submersible Sand Pumps Structural Drawing:
Hydroman™ TSQ Submersible Sand Pumps Applications:
TSQ Submersible Sand Pump widely used for Dredging, Ocean Sand mining, ponds, Fly ash/ bottom ash, Sand and Gravel excavation, Hazardous waste clean-up, Tank clean up (replacing vacuum trucks), Cleaning out numerous sumps including at: Cement plants, Agricultural wash down pits (carrots, beats etc), Pipeline burial, Coke pits, Mill scale/ slag pits, Barge unloading, Silt removal, Removal of filer media at waste treatment plants, Island building etc.
