ERW 20 tube mill line:

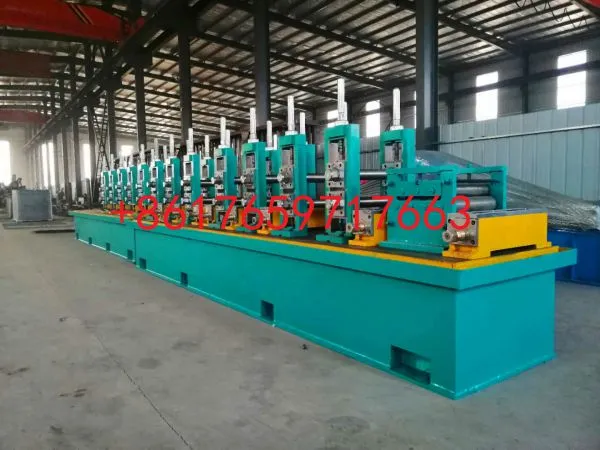

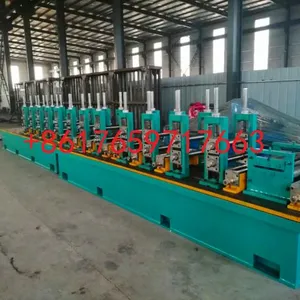

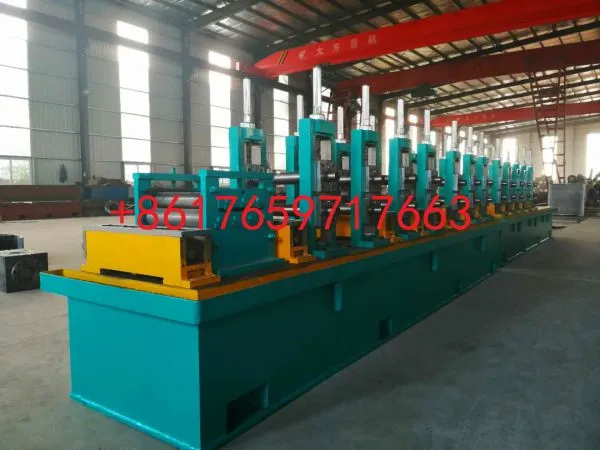

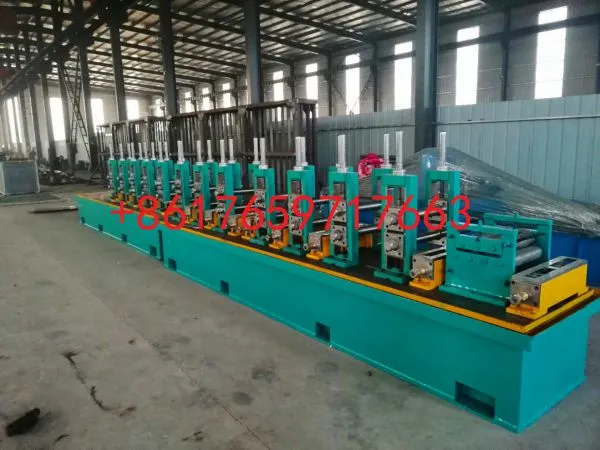

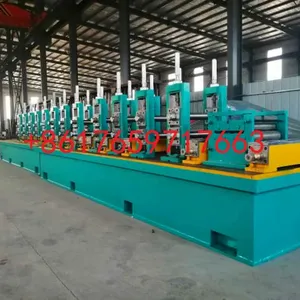

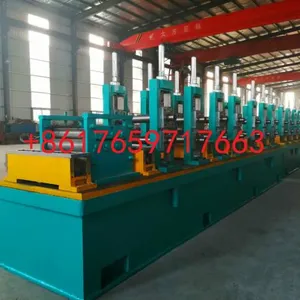

ERW 20 high frequency longitudinal welded pipe production line/pipe making machine/tube mill is designed to produce welded pipes from 8mm-20mm in OD and 0.5-1.5mm in wall thickness,as well as corresponding square and rectangle pipe
Product details:
Basic technical information of welded pipe production line
Product |
Round pipe |
8mm-20mm thickness: 0.5-1.5mm |
Square&rectangle tube |
10mm*10mm-15mm*15mm thickness: 0.5-1.5mm |
|
Length |
6-12m Length tolerance: ±3 |
|
Production speed |
20-120m/min |
|
Production capacity |
10,000 ton/year |
|
Powers |
Mill installed capacity |
50kw |
Line Area |
40m(length)*3.8m(width) |
|
Worker |
6-8 workers |
|
Raw material details |
Carbon steel coil |
GB/T 700:Q235B(ASTM:GR(σs 230)/JIS: SS400) |
Width |
36mm-120mm |
|
Coil ID |
450-520mm |
|
Coil OD |
Max 1200mm |
|
Coil weight |
1.0-1.5T |
Welded pipe making machine consists of the following parts:

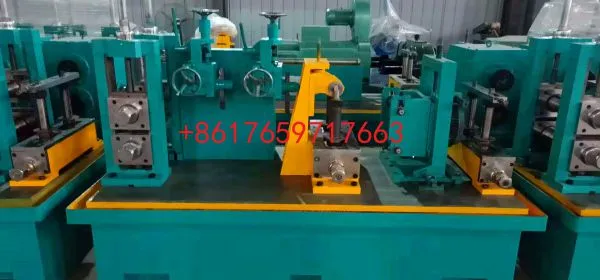

1. Forming parts: Consist of seven frame of horizontal roll rack,four frame of empty curving rack,four frame of vertical roll rack and one frame of feeding rack
2. Welding parts: consists of welding five roller of extruding roll,two frame of scraping scar rack and one frame of polish rack
3. Sharping parts: consists of four frame of four roller rack
4. Electric control part: controlled by multipoint PLC point
ERW pipe making machine technique process:

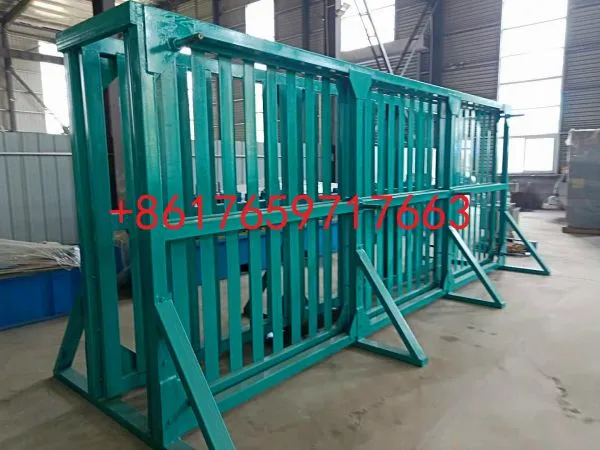

Raw material(steel coil)→Uncoiling→shearing and butt welding→material accumulator→passively leveling→mill forming→high frequency welding→removing butts outside of weld seam→cooling→sizing→roughly straightening→fixed length cutting→runout table
The pipe machine’s main characteristics of the equipment:
1. Roller shaft diameter is big,amount is big,amount is big,and material is 42CrMo
2. Equiped double motors, efficiency is good
3. Tube making efficiency is high,tube straightness is good
4. Reliability is high and error is low
5. Operation is convenient
6. Computer saw used famous brand in domestic,best quality
7. High frequency welder adopts the best brand in china
Company profile:
Botou Boheng Metallurgical Equipment Manufacturing Co.,Ltd was established in 2003, and located in Botou city Hebei province.Boheng is a high and new-technology enterprise specialized in design,development and manufacture of ERW welded pipe equipment,high precision slitting & crossing-cutting equipment,spiral welded pipe equipment,cold forming equipment and rollers.Boheng is the pioneer that had the key processing technology of the international advanced whole set welded pipe mill. Boheng always adhere to the enterprise policy “contribute to the society with excellent techniques, high quality products and perfect service”.
Welcome your inquiry!!!
