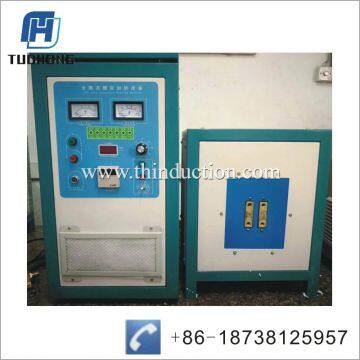

40KW steel rod forging induction heater
Advantages of induction heater
1, high frequency transistors my company adopted than high frequency power saving up to 40-60%, saving 60%, external support facilities to reduce investment by 75%.
2, a unique cooling circulation system, ensure that the equipment 24 hours of continuous work.
3, small size, light weight, easy to move, no million-volt high-voltage danger, safe operation.
4, high reliability, easy to maintain and improve the over voltage, over current, overheating, lack of, water and other self-protection.
5, the use of large scale integrated circuit digital automatic control, with manual, automatic, semi-automatic and fixed time control.
6, automatic frequency tracking, stepless power adjustment, easy to use, 10 minutes to learn.
Applications of induction heating machine

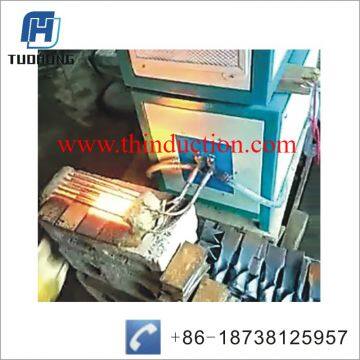

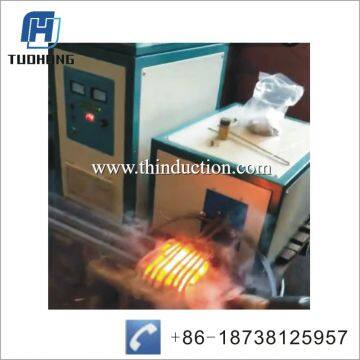

2. diathermy (forging)
(1) Round steel categories:
A. bolts, nuts, drill head hot forge, the car U-bolts, anchor bolt, connecting rod, non-standard parts processing, conductive rod
B. stainless steel tableware, stainless steel bolts and nuts
C. tools: pliers, bolt cutters, pipe clamp, water pump pliers, pliers, wrenches, ratchet wrenches, masonry chisel,
D. Other: sewing gadgets, jack head, boss chair, shackles, hand rings, flowers Lancashire body, feet kidnapper, tricycle axle, briquettes machine Chong-pin, roll gate axis, articulated manifolds, hot-rolled twist drill, Hot-rolled rebar, hot-rolled woodworking drill, bearing
(2) sheet/plate categories:
A. forged stainless steel cutlery, automotive steel plate.
B. sheet folding: folding iron hand jack, metal folding channel, automotive steel, hot rolled construction steel buckle, automotive leaf spring
C. embossed: Iron Works embossing, embossing motorcycle brake pedal heating, sanitary ware.
D. Forming: bending, upsetting head, punching, flatten, step by step tight angle iron molding, from nails, rasp, sanitary ware
(3) pipe deformation: pipe heat distortion, fire extinguishers stretching, stretching cylinders, fans rose shaped brackets bend, pipe up hole, bicycle fork shrinkage, food machinery punching
(4) other categories:
Electric Vehicle wrist, drill rod, drill bits, copper pieces (communication, air conditioning parts), trains pin, watch cases, railway rail pressure ring.
Technical parameters of induction heating forging machine
|
Model TZP-current (A)/power (KW) |
Input voltage |
Input current |
Oscillation frequency |
Cooling water pressure |
TZP-40/20KW |
320-420V |
2-40A |
15-30KHZ |
0.1MPA |
TZP-60/40KW |
320-420V |
3-60A |
15-30KHZ |
0.2MPA |
TZP-90/50KW |
320-420V |
4-90A |
15-30KHZ |
0.3MPA |
TZP-120/70KW |
320-420V |
6-120A |
15-30KHZ |
0.3MPA |
TZP-160/90KW |
320-420V |
6-160A |
15-30KHZ |
0.3MPA |
TZP-200/120KW |
320-420V |
6-200A |
15-30KHZ |
0.3MPA |
TZP-300/160KW |
320-420V |
6-300A |
15-30KHZ |
0.3MPA |
TZP-400/200KW |
320-420V |
6-400A |
8-15KHZ |
0.3MPA |
TZP-500/260KW |
320-420V |
6-500A |
8-15KHZ |
0.3MPA |
