Specifications
induction heater for plastic machine1.Quick installation
2.Temperature limiting
3.Energy saving
4.Clip fixing
SAIP MEANING:
A global quality electric organization
In order to obtain the highest quality all of
Products according to international IECnormative.
SAIP VISION:
To be an enterprise lasting 103 years and beyond
To be an enterprise with a network of 20000 sales personnel and 2000 design engineers
To be the choice brand manager of major worldwide electrical brands
SAIP MISSION:
To create products that deliver happiness to everyone
SAIP BUSINESS PRINCIPLE:
To conduct business in a simple straightforward manner.
SAIP WORKING PRINCIPLE:
To work and live happily
induction heater for plastic machine
1. Pressure clamp connectors
2.Dynamic heating up
3.Wide voltage range
4.Temperature limiting
5.Energy saving
6.Clip fixng
7.Quick installation
These heaters are used in enclosures where damage from condensation must be prevented, or where the temperature may not fall below a minimum value. The aluminium profile heater body design has a chimney effect and distributes the heat evenly. The pressure clamp connectors save time and simplify installation.
Technical Data:
| Operating voltage | 120-240V AC/DC (min.110V,max.265V) | |||||
| Heating element | PTC resistor, self regulation and temperature limiting | |||||
| Heater body | extruded aluminium profile, anodised | |||||
| Connection | 3 pressure clamps for stranded wire 0.5-1.5mm² (with wire end ferrule)and rigid wire 0.5-1.5mm² | |||||
| Connection casing | plastic according to UL94 V-0,black | |||||
| Mounting | clip for 35mm DIN rail, EN 60715 | |||||
| Fitting position | vertical | |||||
| Operating/Storage temperature | -20 to +70°C(-4 to +158°F) | |||||
| Protecting type/Protection class | IP54/I (earthed) | |||||
| Accessories | Screw fixing | |||||
| Art.NO | Heating capacity | Inrush current max. | Length(L) | Weight(approx.) |
| 14000.0-00 | 15W | 1.5A | 65mm | 0.30KG |
| 14001.0-00 | 30W | 3.0A | 65mm | 0.30KG |
| 14003.0-00 | 45W | 3.5A | 65mm | 0.30KG |
| 14005.0-00 | 60W | 2.5A | 140mm | 0.40KG |
| 14006.0-00 | 75W | 4.0A | 140mm | 0.50KG |
| 14007.0-00 | 100W | 4.5A | 140mm | 0.50KG |
| 14008.0-00 | 150W | 9.0A | 220mm | 0.70KG |

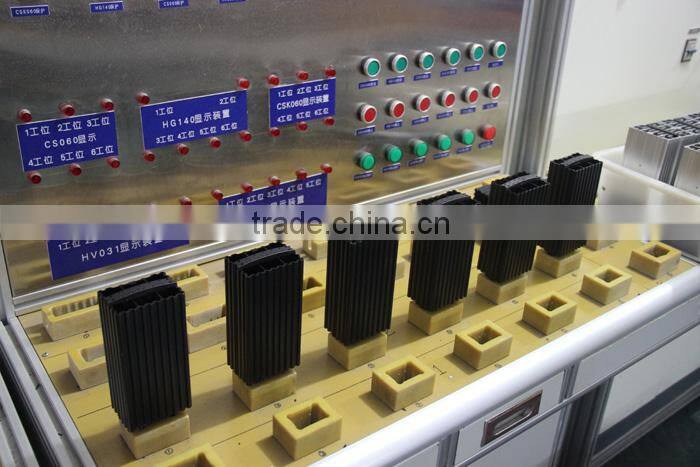

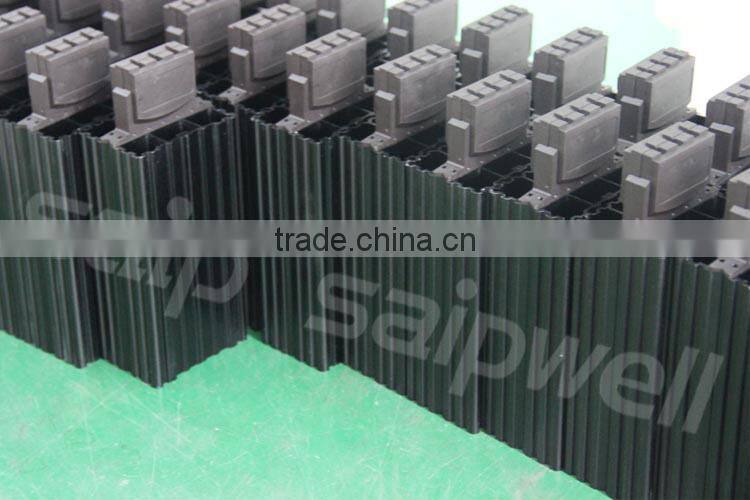

Product show:
Related products:
About us:
Saip Electric Group Co.,Ltd(called"Saip"for short)is an enterprise specialized in design,production and sales of electric equipments. Head office located in the largest manufacturing base of electric equipment of Wenzhou China, which is called"the Electric Equipment Capital of China",next to Shanghai and Ningbo Ports.
Saip has Five specialized branches, over 300 specialized cooperative partners.Saip,an ISO9001 certificated enterprise,owns modern production lines and high quality controlling equipment with scientific administration, professional engineers, highly trained teams technicians and skilled workers.
So

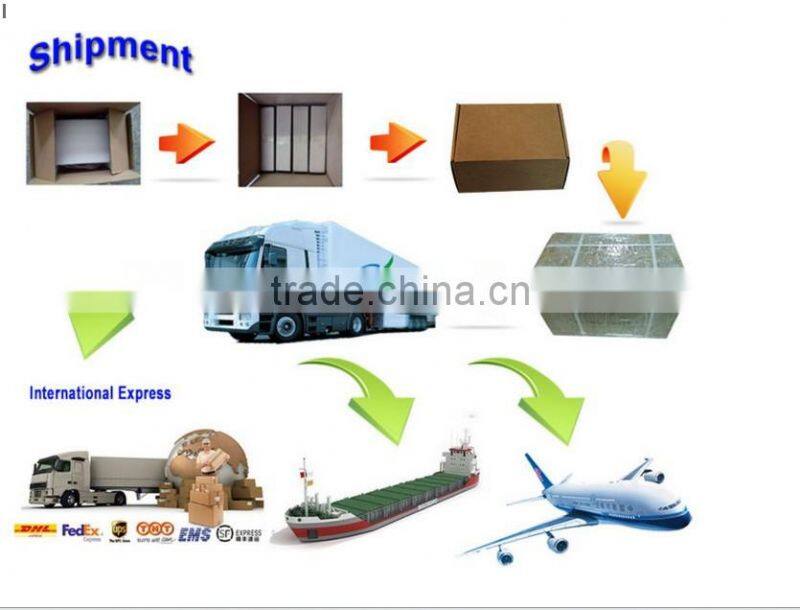

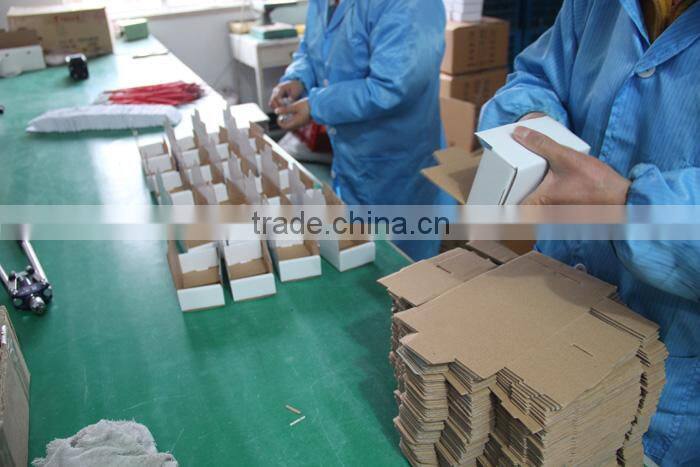

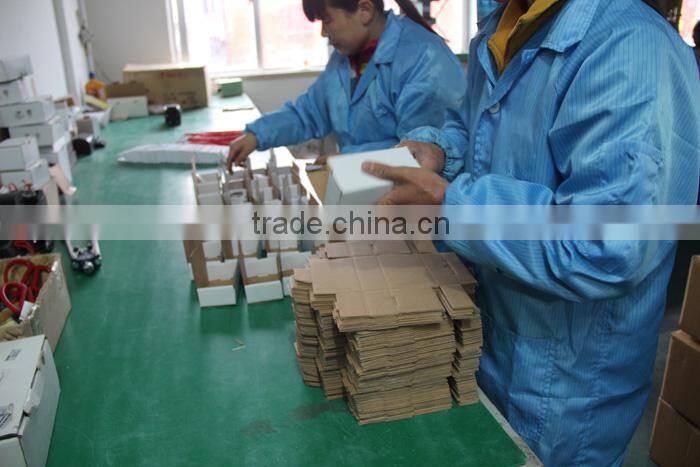

Packaging & Shipping:
Our service:
1.Reply inquiry in 24 hours.
2.Please kindly inform us which items you are interested & the reasonable price will be providedyou upon receipt of your new inquiry ASAP.
3.Answer your question detailed.
4.Solved the problem with you during using our products.
5.Samples will be offered to you for our future cooperation.
6.We can provide you good quality product and best service .
Certifications:
For more details, please contact Ms.Catherine Hu
Saip Electric Group Company Limited
Mob: 0086-18067787969
Direct: 0086-577-61780579
Fax: 0086-577-62760731
Skype: saip321saip
Website: www.saipgroup.com
