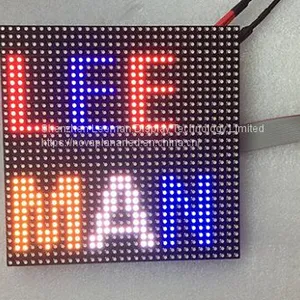

P6 SMD LED Module,P2 Indoor SMD Led Module

Name: P6 SMD LED Module,P2 Indoor SMD Led Module
Brand: LEEMAN
SKU: 159778299
Availability: InStock

US$ 1 - 100 MOQ: 1 Piece

Key Specifications

Brand Name:

LEEMAN

Place of Origin:

China

Shenzhen Leeman Display Technology Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

3 days

Brand Name LEEMAN

Place of Origin China

P6 SMD LED Module,P2 Indoor SMD Led Module,Indoor LED Display Module

P2 Indoor SMD Led Module

Indoor LED Display Module

p6mm smd indoor led display module with high quality of 5 years warranty,p6mm led module signs work with linsn led control card

Size:192mmx192mm, Resolution:32x32dots, including DATA and Power Cable, Epistar LED,2 Years Warranty.

Resolution	32(H)×32(V)
Pitch	6mm
Density	27778pixels/m2
LED Arrangement	1R1G1B
Driver Mode	Dynamic 1/8 Duty constant current
Size	192mm×192mm
Mask	Pure Black mask-high contrast screen

Electricity Parameter
Optical Ratings
Brightness	≥1500cd/m2
View Angle	140 degree ( horizontal) 140degree(vertical)
View Distance	5m-60m
Gray Scale	8bits input, correction with 14bits
Display Color	16.7M
Brightness Adjustment	100 levels
Power Supply
Operation Power	AC100-240V 50-60HZ Switch-able
Maxim Power Consumption	1000 W/m2
Average Power Consumption	580 W/m2
Control System
Correction Scale Level	16bits
Frame Update Frequency	60Hz
Screen Refresh Frequency	480Hz
Gamma Correction	-5.0—5.0
Support Input	Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI
Control Distance	Ethernet cable 100m, optical fiber 5km
Support VGA Mode	800×600,1024×768,1280×1024,1600×1200
Color Temperature	5000-9300 adjustable
Brightness Correction	dot by dot, module by module, cabinet by cabinet
Reliability
Operating Temp.	-20-60 Celsius degree
Operating Humidity	10-95% RH
Operating Life	100,000 hours
MTBF	5000 hours
Continuous Working Time	≥48 hours
Protection Level	IP54
Out of Control Pixel Rate	0.01%
