P5 SMD LED Module,Indoor LED Display Module

Name: P5 SMD LED Module,Indoor LED Display Module
Brand: LEEMAN
SKU: 159778303
Availability: InStock

US$ 1 - 100 MOQ: 1 Piece

Key Specifications

Brand Name:

LEEMAN

Place of Origin:

China

Shenzhen Leeman Display Technology Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

3 days

Brand Name LEEMAN

Place of Origin China

P5 SMD LED Module,Indoor LED Display Module,P2 Indoor SMD Led Module

Indoor LED Display Module

P2 Indoor SMD Led Module

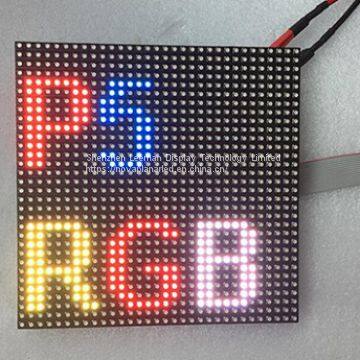

Indoor P5mm SMD3528 LED Module 64x32dots 320mmx160mm led display module

Model					P5-SMD RGB-64X32
1.LED
Color	Package		Intensity		View Angle	Wavelength	Test Cond.
Red	SMD 3528		150mcd		140/140	620nm	25℃,20mA
Green	SMD 3528		400mcd		140/140	520nm	25℃,20mA
Blue	SMD 3528		100mcd		140/140	470nm	25℃,20mA
2.LED Module Module Front View Module Back View
Resolution		64(H)×32(V)
Pitch		5mm
Density		40000 pixels/m2
LED Arrangement		SMD3528
Driver Mode		Dynamic 1/16 Duty constant current
Size		320mm×160mm
Mask		Pure Black mask-high contrast screen
3.Electricity Parameter
Optical Ratings
Brightness				≥2000cd/m2
View Angle				140 degree ( horizontal) 140degree(vertical)
View Distance				5m-50m
Gray Scale				8bits input, correction with 16bits
Display Color				16.7M
Brightness Adjustment				100 levels
Power Supply
Operation Power				AC100-240V 50-60HZ Switch-able
Maxim Power Consumption				700 W/m2
Average Power Consumption				400 W/m2
Control System
Correction Scale Level				16bits
Frame Update Frequency				60Hz
Screen Refresh Frequency				480Hz
Gamma Correction				-5.0—5.0
Support Input				Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI
Control Distance				Ethernet cable 100m, optical fiber 5km
Support VGA Mode				800×600,1024×768,1280×1024,1600×1200
Color Temperature				5000-9300 adjustable
Brightness Correction				dot by dot, module by module, cabinet by cabinet
Reliability
Operating Temp.				-20-60 Celsius degree
Operating Humidity				10-95% RH
Operating Life				100,000 hours
MTBF				5000 hours
Continuous Working Time				≥48 hours
Protection Level				IP54
Out of Control Pixel Rate				0.01%
