Hot sale 2019 Vertical milling machining center machine vmc 850
Tips
Please kindly tell us the workpiece you need to processing, we will recommend the right machine.
The vertical machining center refers to the machining center where the spindle axis is perpendicular to the table.
It is suitable for processing complex parts such as plate, disc, mold and small shell.
Vertical machining centers can make milling, boring, drilling, tapping and thread cutting.

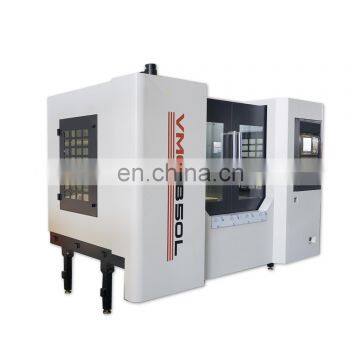

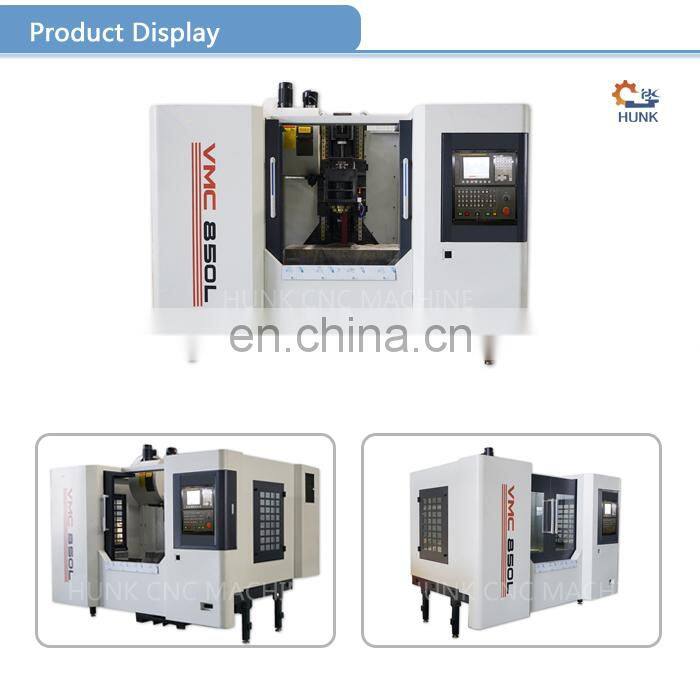

VMC850L Vertical milling machining center

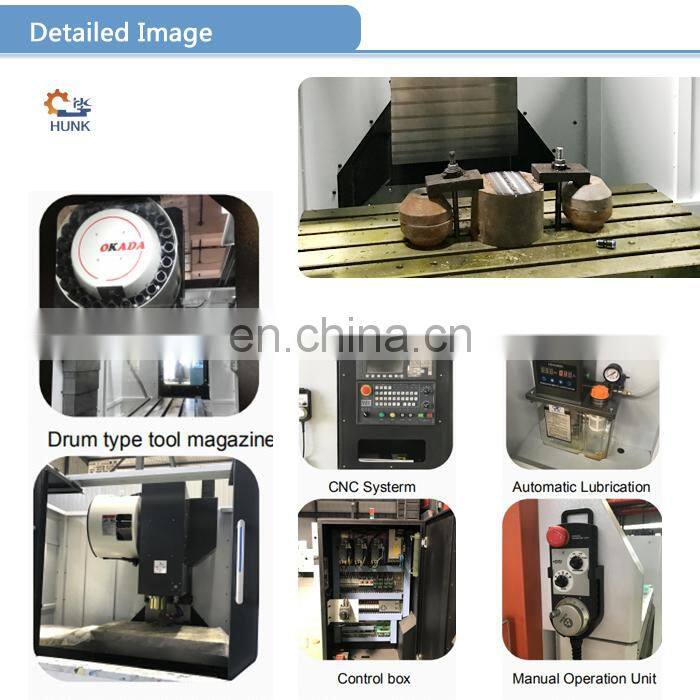

Main Features
1) Robust box-way castings
2) High speed, low noise ball screw and wide linear guideways on three axis
3) High rigid machine frame to fit high accelerations
4) Famous brand tool magazine
5) High volume, high pressure spindle coolant
6)Direct drive spindle with standard speed 8000rpm
7)Rapid feed to reduce Non-machining time
8)High speed for mass production
Specific Parameters
Specification | Unit | VMC850L |
Worktable Size | mm | 1000x500 |
Load Capacity | kg | 400 |
T slot |
| 5-18x90 |
X Axis Travel | mm | 800 |
Y Axis Travel | mm | 500 |
Z Axis Travel | mm | 500 |
Distance from Spindle Nose to Worktable Surface | mm | 150-650 |
Distance from Spindle Center to Column Guideway Surface | mm | 550 |
Tool Shank |
| BT40 |
Spindle Speed | rpm | 8000 |
Spindle Motor | kw | 7.5 |
Max.Diameter of tool | mm | φ80/φ150 |
Max.Length of tool | mm | 250 |
Max.Weight of tool | kg | 8 |
X/Y/Z Axis Rapid Moving | m/min | 48000 |
Feed Rate | mm/min | 1-10000 |
Positioning Accuracy | mm | ±0.008 |
Repeated Positioning Accuracy | mm | ±0.002/300 |
Tool Magazine | pcs | 24 Drum Type |
Machine Size | mm | 2600x2200x2550 |
Machine Weight | kg | 5500 |

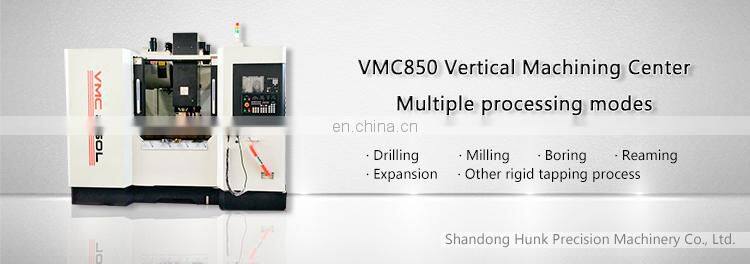

Vertical milling machining center machine vmc 850

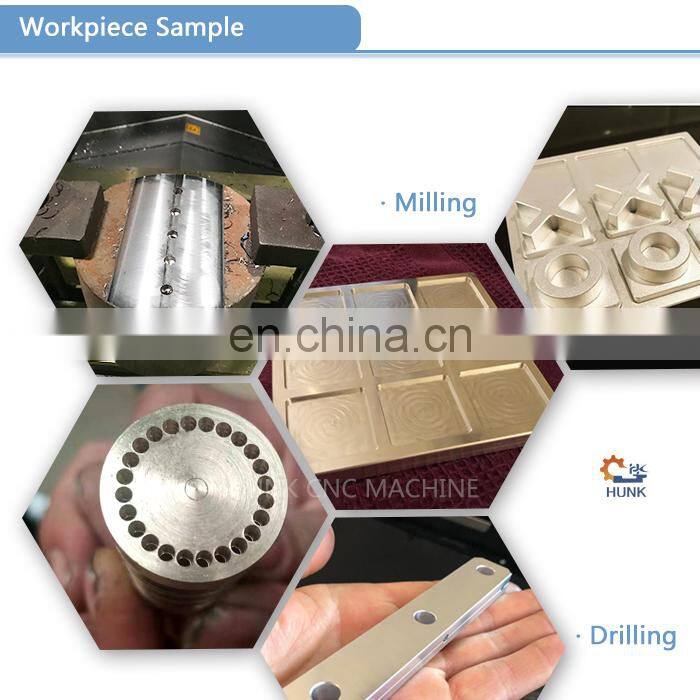

It can finish clamping one-time of various dishes, plates, shell, cam, mold and other complex parts.
It can complete the drilling, milling, boring, reaming, expansion, and other rigid tapping process.
So it is suitable for many varieties, medium and small batch production.
It can finish the processing of complex, high precision parts.

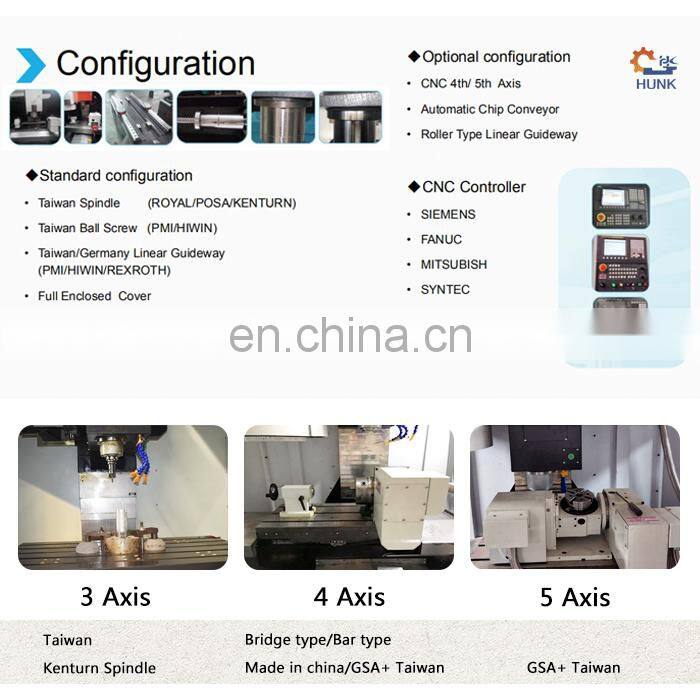

It can be matched the four rotary axis , in order to meet the requirements of special parts.

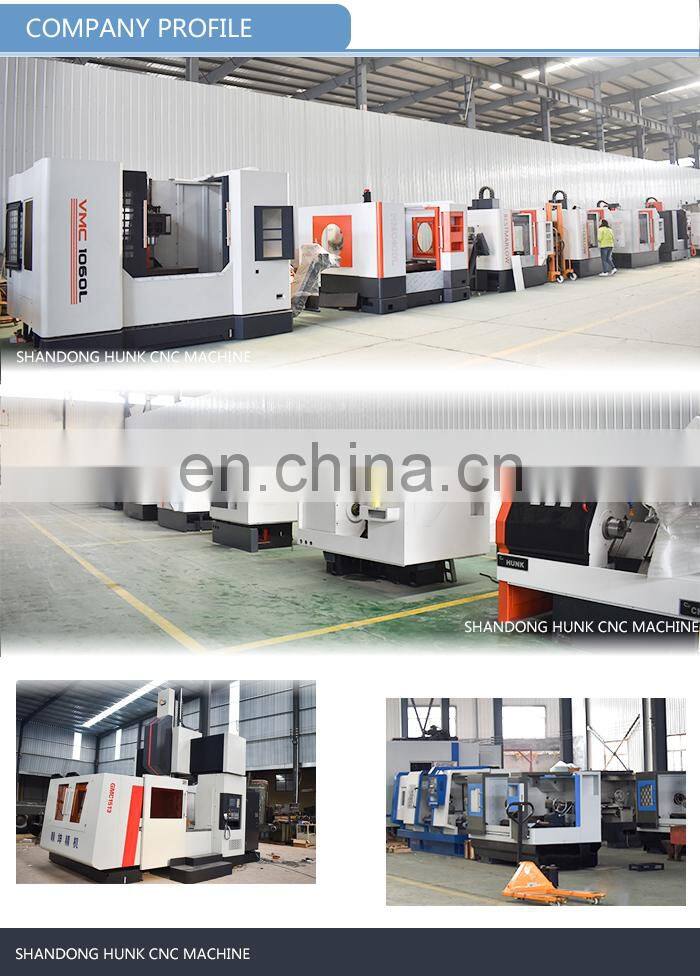

This is ISO9001 professional direct manufacturer of CNC machines, CNC Lathes, Machines centers (vertical, gantry, horizontal) with fixed column or movable column .Engineers are the original Ji'nan first machine tool factory employees, with 20 years of experience . Supply to you product with high configuration and perfect service at competitive price .
Our certification
We are the Vice President of Shandong International Business Union.
Our certification including CE, IQNET, SGS, ISO
About Quality
1.Direct deal from factory
2.Set up by the employees of the original Jinan Machine Co., Ltd.
3.Technicians who have more than 20 years experience
4.ISO/CE/SGS certification
5.Imported parts from Taiwan, Japan, Germany etc.
6.Our products have been sold to America, South East Asia, Russia, Middle East Europe etc.
About after sales support
1.24 hours on Internet and Telephone, free instruction and problem solving.
2. Free training how to use.
3. User-friendly English manual or operating video for machine using and maintaining.
4. on-the-spot training and installation can be met if required.

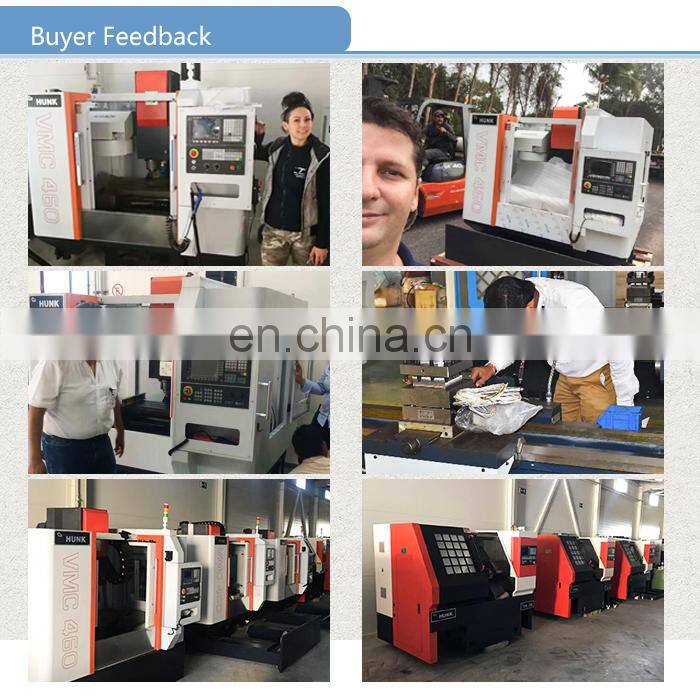

Our cnc machines arrived at the customer warehouse and started working.
Welcome to send us an inquiry
Send Inquiry to This Supplier
