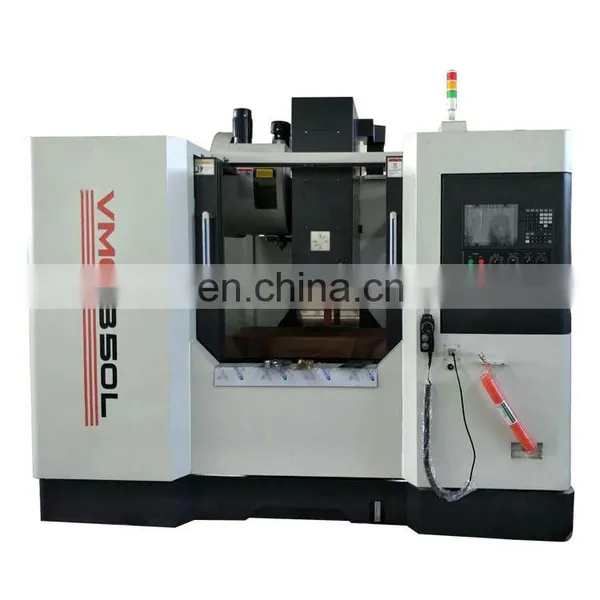

VMC 5 Axis Vertical CNC Machining Center

Name: VMC 5 Axis Vertical CNC Machining Center
Brand: HUNK
Availability: InStock

FOB Price

US$ 19,500 - 35,900 / Set

1 Set(Min. Order)

Port Qingdao Port for VMC 5 axis Vertical CNC Machining Center
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HUNK	Place of Origin	Shandong, China
Type	Vertical	Certification	ISO9001 CE
Warranty	13 Months
Weight	5500kg	Dimension(LWH)	270024002600mm
Voltage	380V/50Hz	Condition	New
Power(W)	7.5kw

Product Description

Application

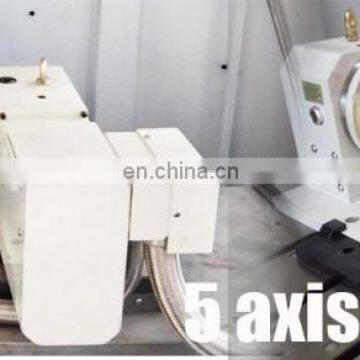

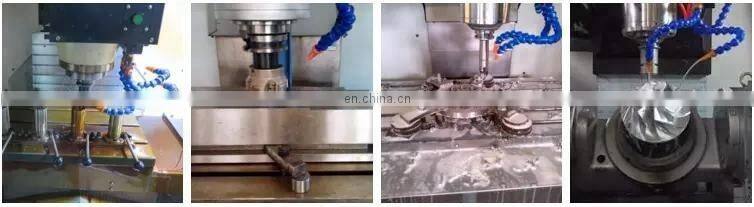

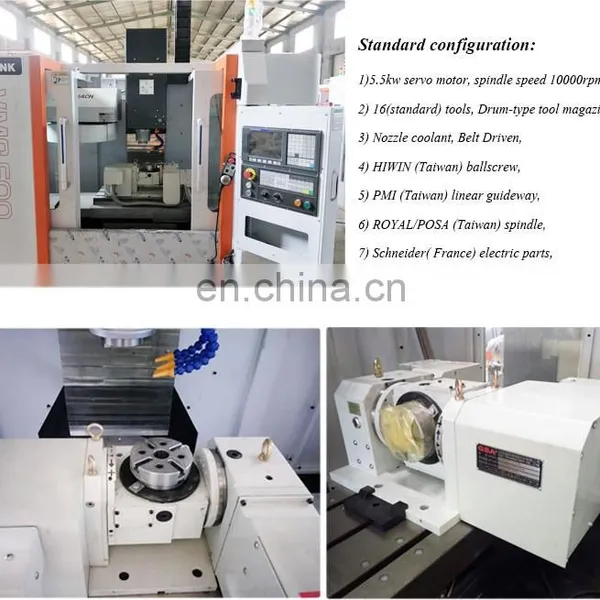

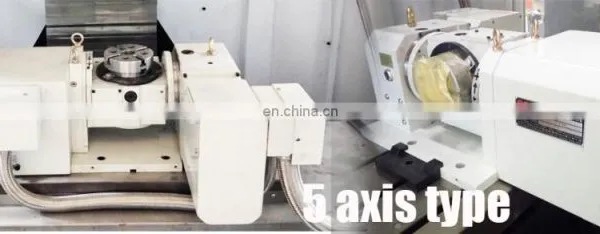

It can finish clamping one-time of various dishes, plates, shell, cam, mold and other complex parts. It can complete the drilling, milling, boring, reaming, expansion, and other rigid tapping process . so it is suitable for many varieties, medium and small batch production. It can finish the processing of complex, high precision parts . It can be matched the four rotary shaft , in order to meet the requirements of special parts.

Product Description

Parameter

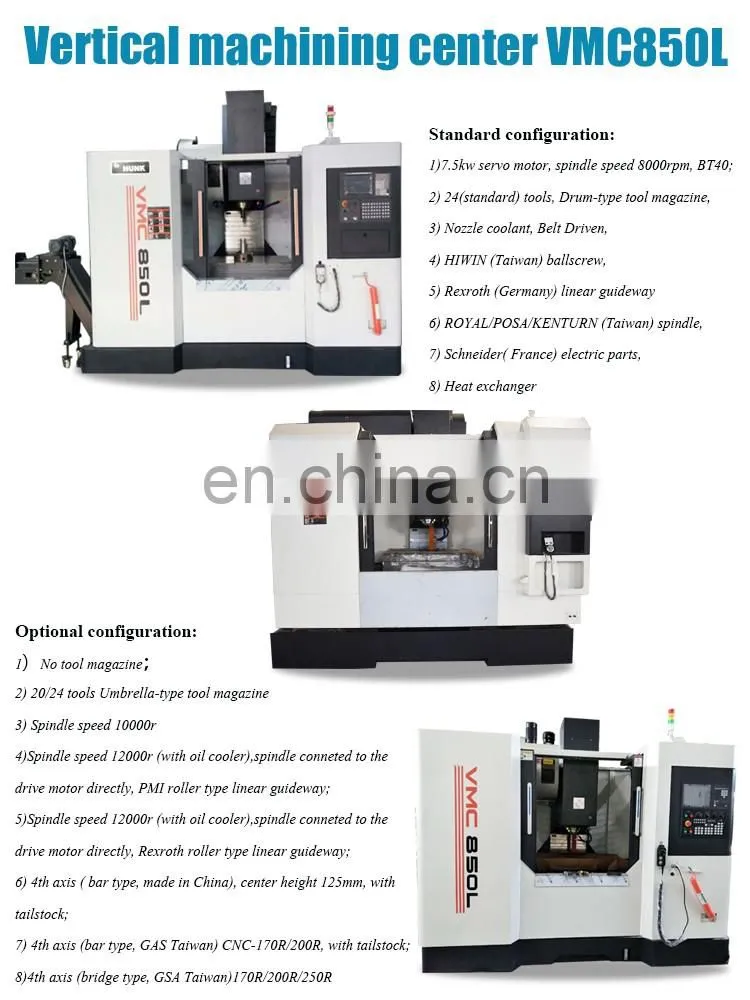

Item	Unit	VMC350	VMC460	VMC600	VMC850
Table size	mm	690*230	800*300	800*360	1000*500
Load capacity	kg	150	200	350	500
T slot		3-16-63	3-14*80	3-14*115	5-18*90
X axis travel	mm	350	460	600	800
Y axis travel	mm	260	320	400	500
Z axis travel	mm	350	460	500	500
Distance from spindle center to table	mm	90-440	90-550	100-600	150-650
Distance from spindle center to column slideway	mm	294	395	430	550
Tool shank		BT30	BT30/BT40	BT40	BT40
Spindle speed	rpm	10000	10000	10000	8000
Spindle motor Power	kw	2.2/3.7	3.7	5.5	7.5
Max Length of tool	mm	120	200	350	250
Max weight of tool	kg	3	6	8	8
X/Y axis rapid moving speed	mm/min	20000	20000	20000	48000
Z axis rapid moving speed	mm/min	20000	20000	20000	48000
Position accuracy	mm	0.02	0.02	0.015	0.008
Reposition accuracy	mm	0.01/300	0.007	0.0075	0.002
Dimension	mm	152013001800	180017502000	220021002200	270024002600
Weight	kg	1200	1900	2600	5500

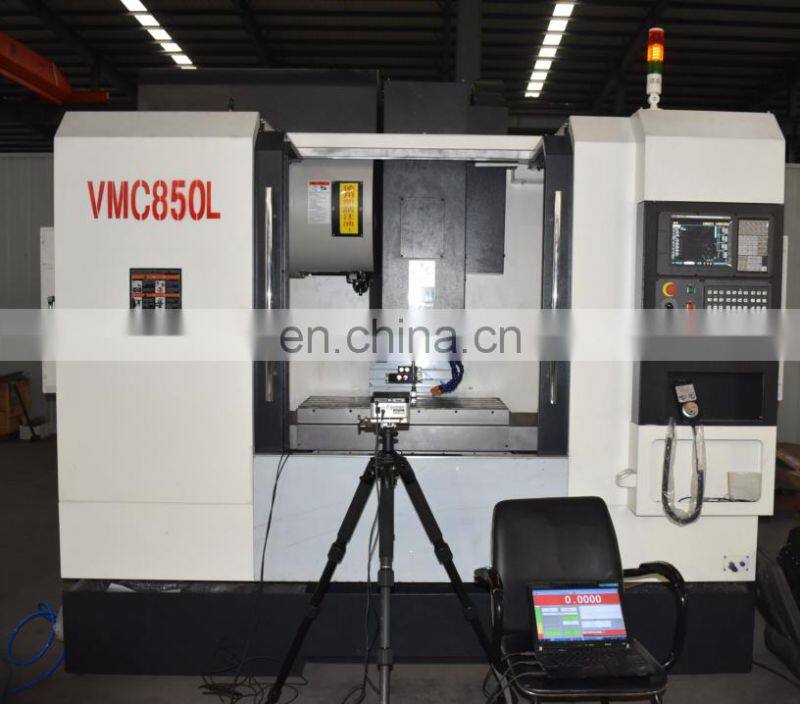

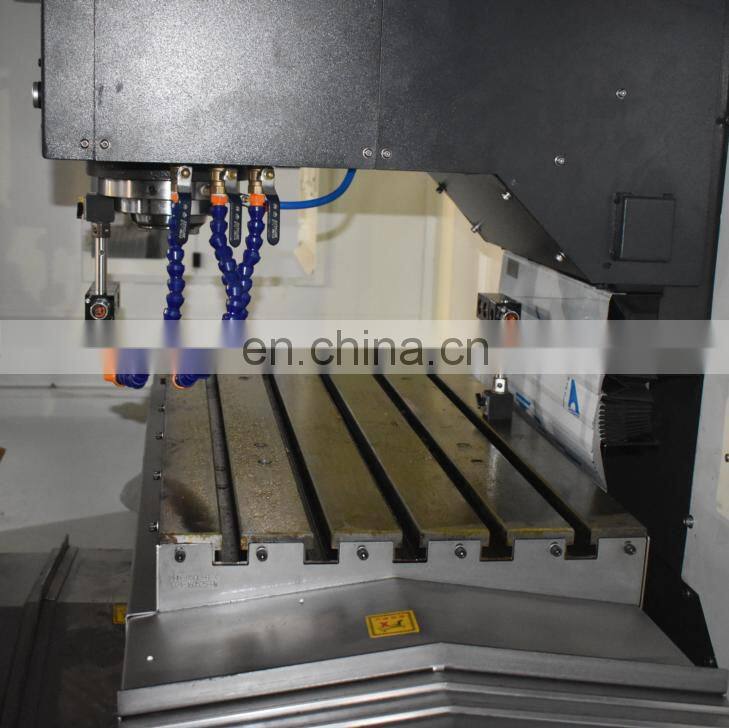

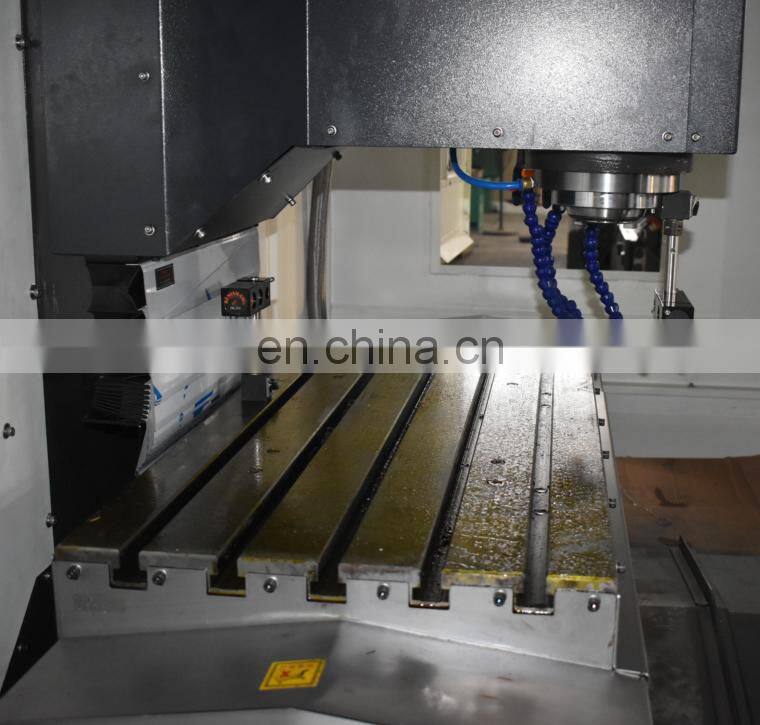

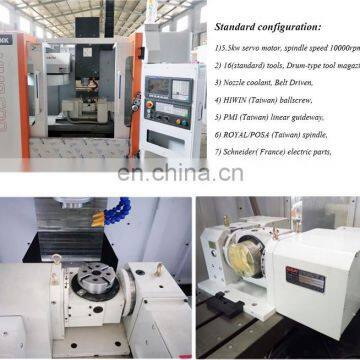

Products pictures

Packing & Delivery

Packing dimension(LxWxH):2950mmX2300mmX2520mm

Our Company

Shandong Hunk Precision Machinery Co.,Ltd

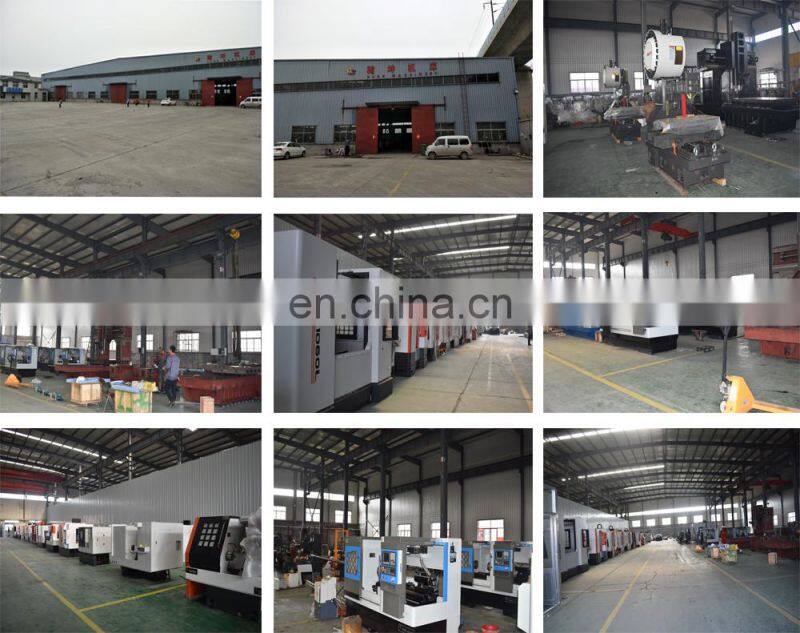

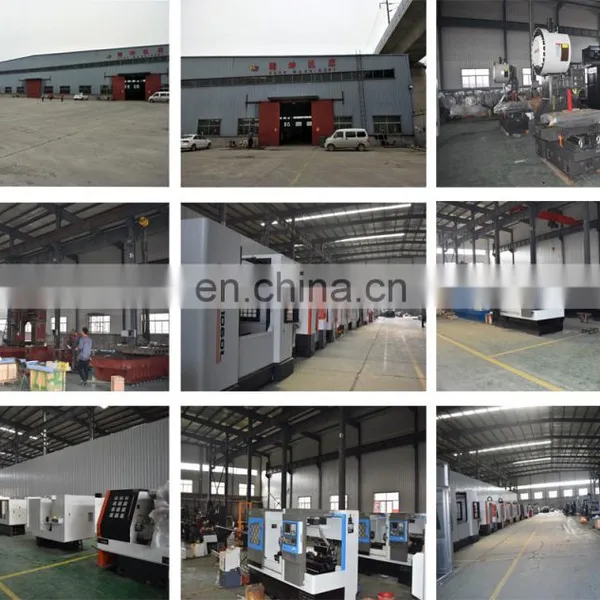

Shandong Hunk Precision Machinery Co.,Ltd, is a CNC machine tools factory, located in the beautiful capital Jinan city, integrated with manufacturing, processing and sales. It was set up by the former Jinan Machine tools factory employees.The plant area is about 10,000 square meters. We have a number of R&D persons and technicians who have more than 20 years experience of machine tool design and assembly. We have mastered the advanced machine tool technology and were dedicating to service customers domestic and abroad and welcomed deeply.

Exibitions

We actively participate exihitions like Beijing, Shanghai, Qingdao, Guangzhou, Jinan and so on.
We also particated the exihitions in Indonisia, happily communicated with our old clients and also met many new clients.

Our certification

We are the Vice President of Shandong International Business Union

Our certification including CE, IQNET, SGS, ISO

Our service:

1.24 hours on Internet and Telephone, free instruction and problem solving.
2. Free training how to use.
3. User-friendly English manual or operating video for machine using and maintaining.
4. on-the-spot training and installation can be met if required.

In this picture, our Mexico client make a farewell party for our technician after he finish traning for the staff. They are very satisfied with our machine and our technician. They orderred again and invite our technician visit them again.

Product catagory

The main products are slant bed cnc lathe/ flat bed cnc lathe/ cnc vertical machining center/ cnc horizontal machining center/cnc gantry machining center.

Contact Me

FAQ

Q:Do you have after sales support?
A: Yes for Sure.
1.24 hours on Internet and Telephone, free instruction and problem solving.
2. Free training how to use.
3. User-friendly English manual or operating video for machine using and maintaining.
4. on-the-spot training and installation can be met if required.

Q: How can I choose the most suitable machines?
A: Please tell me your specifications, we can choose the best model for you, or you can choose the exact model. You can also send us the products drawing, we will choose the most suitable machines for you.

Q: Are you factory?
A: Yes, we are. Supply to you product with high configuration and perfect service at competitive price.
