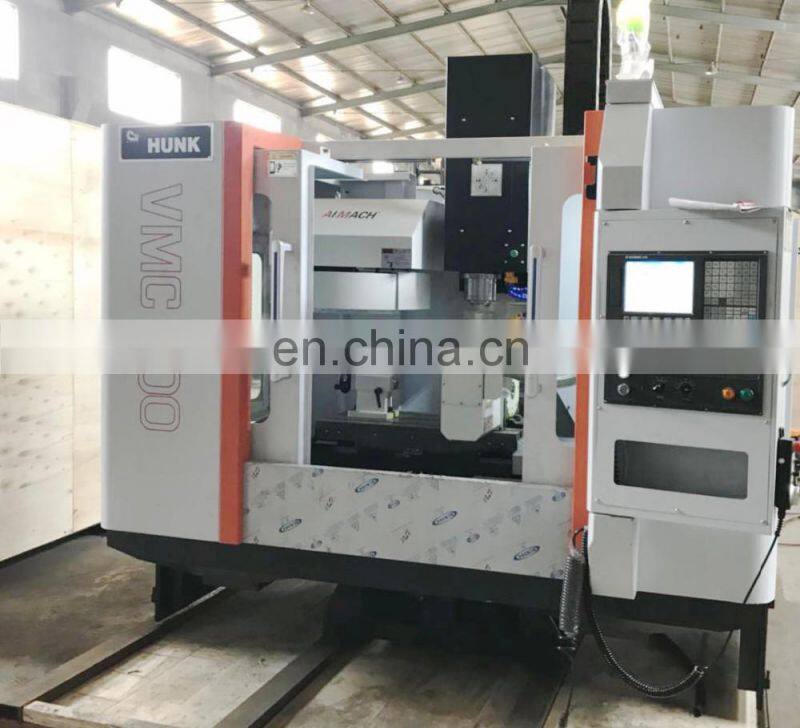

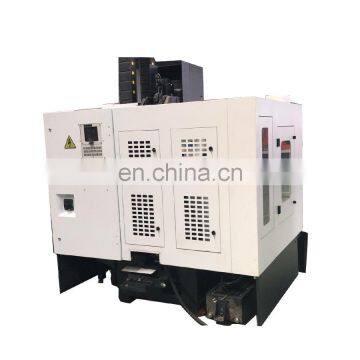

Customized Metal CNC Milling Vertical Machine With Necessary Spare Parts

Name: Customized Metal CNC Milling Vertical Machine With Necessary Spare Parts
Brand: HUNK
Availability: InStock

FOB Price

US$ 26,200 - 38,500 / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HUNK	Place of Origin	Shandong, China

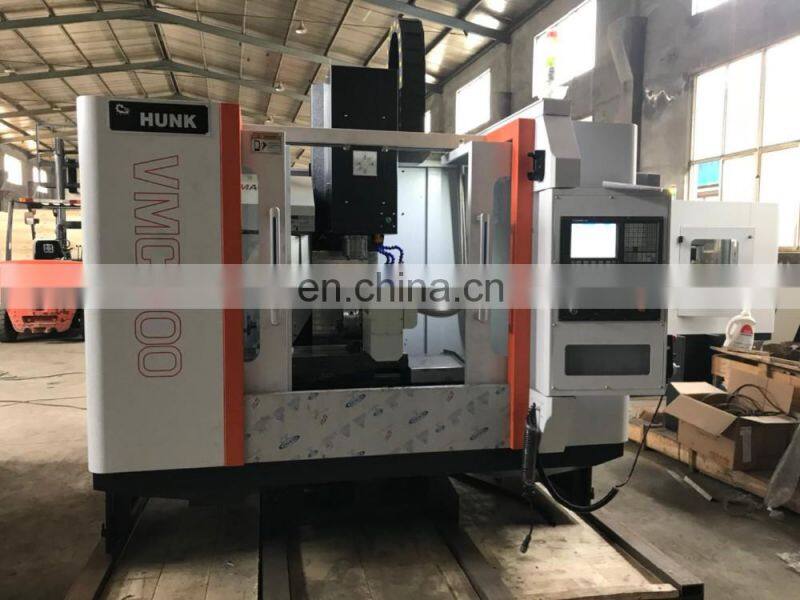

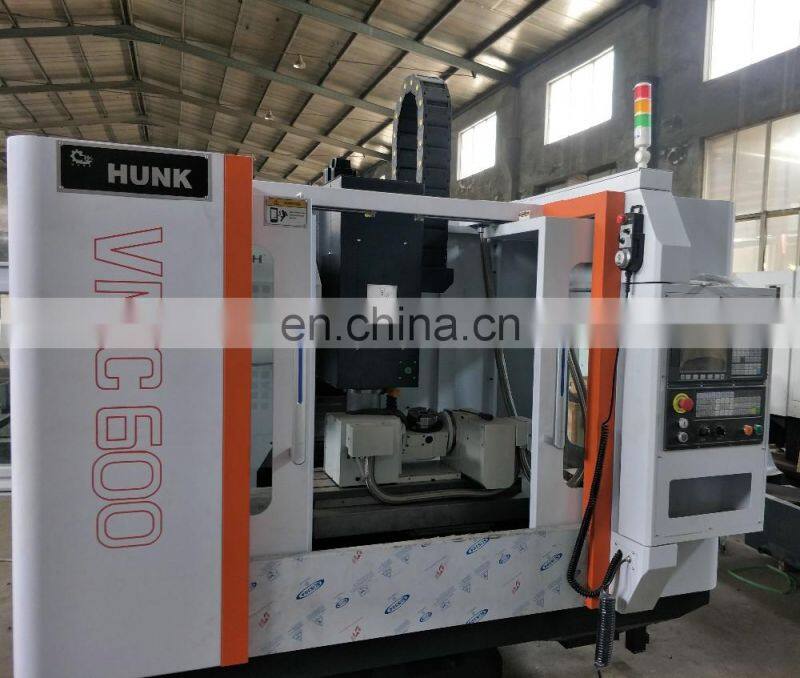

Model Number	VMC600L	Type	Vertical
Certification	ISO9001 CE	After-sales Service Provided	Engineers available to service machinery overseas
Warranty	12 Months	Weight	3000kg
Dimension(LWH)	220021002200mm	Voltage	Customer's Requirement
Condition	New	Power(W)	5.5kw

Product Description

Products Types
CNC LATHE	Slant Bed CNC Lathe
	Flat Bed CNC Lathe
	Vertical CNC Lathe
VMC	Double Column CNC Machining Center
	Vertical CNC Machining Center
	Vertical CNC Milling Machine
HMC	Horizontal CNC Machining Center
	Horizontal CNC Milling Machine
	GSK,SYNTEC,MITSUBISHI,FANUC,SIEMENS,KND FAGOR,etc for option

Main Features

1) Taiwan Linear Guideway/Rail way and ball screw

2) Taiwan Spindle and Booster

3) 24/30 tools for options

4) Lubrication system

5) Chip conveyor for option

6) Servo spindle motor

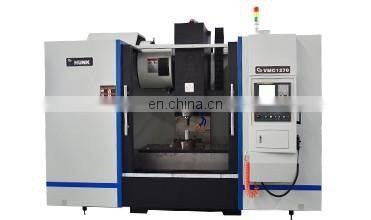

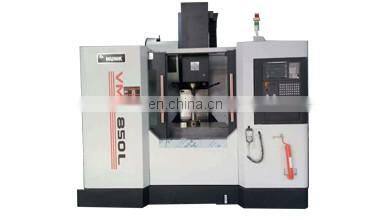

VMC machine

standard configuration:

1)15kw servo motor, spindle speed 8000rpm, BT40

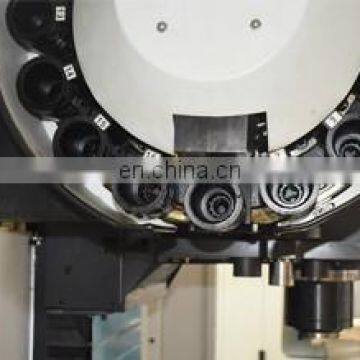

2)24(standard) tools, Drum-type tool magazine,
3) Nozzle coolant, belt driven,
4) HIWIN (Taiwan) ballscrew,
5) Rexroth (Germany) linear guideway,

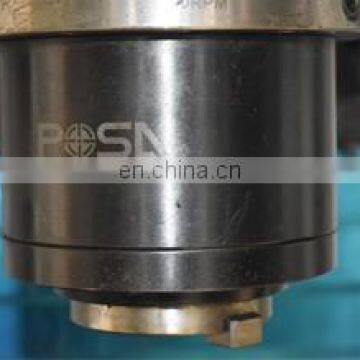

6) ROYAL/ POSA/ KENTURN (Taiwan) spindle,
7) Schneider( France) electric parts,
8) Heat exchanger

Optional configuration:

1)	No tool magazine
2)	24 tools Umbrella-type tool magazine
3)	Spindle speed 10000r
4)	Spindle speed 12000r (with oil cooler),spindle conneted to the drive motor directly, PMI roller type linear guideway
5)	Spindle speed 12000r (with oil cooler),spindle conneted to the drive motor directly, Rexroth roller type linear guideway
6)	4th axis ( bar type, made in China), center height 125mm, with tailstock
7)	4th axis (bar type, GAS Taiwan) CNC-170R/200R/250R, with tailstock
8)	4th axis (bridge type, GSA Taiwan) CNC-170R/200R/250R
9)	5th axis

standard configuration:

1)11kw servo motor, spindle speed 8000rpm, BT40
2)24(standard) tools, Drum-type tool magazine,
3) Nozzle coolant, belt driven,
4) HIWIN (Taiwan) ballscrew,
5) Rexroth (Germany) linear guideway,
6) ROYAL/ POSA/ KENTURN (Taiwan) spindle,
7) Schneider( France) electric parts,
8) Heat exchanger

Optional configuration:Same to VMC1270

standard configuration

Optional configuration Same to VMC1270

standard configuration

1)7.5kw servo motor, spindle speed 8000rpm, BT40
2) 24(standard) tools, Drum-type tool magazine,
3) Nozzle coolant, Belt Driven,
4) HIWIN (Taiwan) ball screw,
5) PMI (Taiwan) linear guideway,
6) ROYAL/POSA (Taiwan) spindle,
7) Schneider( France) electric parts,
8) Heat exchanger

Optional configuration:

1)	No tool magazine
2)	24 tools, Umbrella-type tool magazine
3)	4th axis ( bar type, made in China), center height 125mm, with tailstock
4)	4th axis (bar type, GAS Taiwan) CNC-170R/200R, with tailstock
5)	4th axis (bridge type, GSA Taiwan) CNC-170R/200R/250R
6)	5th axis option

standard configuration

1)5.5kw servo motor, spindle speed 10000rpm, BT40
2) 16(standard) tools, Drum-type tool magazine,
3) Nozzle coolant, Belt Driven,
4) HIWIN (Taiwan) ballscrew,
5) PMI (Taiwan) linear guideway,
6) ROYAL/POSA (Taiwan) spindle,
7) Schneider( France) electric parts,
8) Heat exchanger

Optional configuration:same to VMC850l

standard configuration

1)3.7kw servo motor, spindle speed 8000rpm, BT30
2) 12(standard) tools, Umbrella-type tool magazine,
3) Nozzle coolant, Belt Driven,
4) HIWIN (Taiwan) ballscrew,
5) PMI (Taiwan) linear guideway,
6) ROYAL/POSA (Taiwan) spindle,
7) Schneider( France) electric parts,
8) Heat exchanger

Optional configuration:

1)	No tool magazine
2)	12 tools, Drum -type tool magazine
3)	4th axis ( bar type, made in China), center height 110mm, with tailstock
4)	4th axis (bar type, GAS Taiwan) CNC-125R, with tailstock
5)	4th axis (bridge type, GSA Taiwan) CNC-120R/170R, with tailstock

standard configuration

1) 2.2kw servo motor, spindle speed 8000rpm, BT30
2) 12(standard) tools, Umbrella-type tool magazine,
3) Nozzle coolant, Belt Driven,
4) HIWIN (Taiwan) ballscrew,
5) PMI (Taiwan) linear guide way,
6) ROYAL/POSA (Taiwan) spindle,
7) Schneider( France) electric parts,
8) Heat exchanger

Optional configuration:

1)	No tool magazine
2)	Spindle speed 12000r (with oil cooler)
3)	4th axis ( bar type, made in China), center height 110mm, with tail stock
4)	4th axis ( bar type, made in China), center height 125mm, with tailstock

Parameter

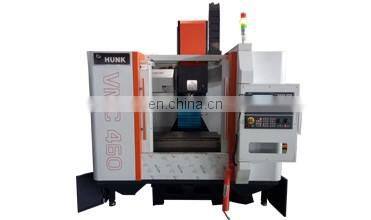

Item	Unit	VMC350L	VMC460L	VMC600L	VMC850L
Table size	mm	690*230	800*300	800*360	1000*500
Load capacity	kg	150	200	350	500
T slot		3-16-63	3-14*80	3-14*115	5-18*90
X axis travel	mm	350	460	600	800
Y axis travel	mm	260	320	400	500
Z axis travel	mm	350	460	500	500
Distance from spindle center to table	mm	90-440	90-550	100-600	150-650
Distance from spindle center to column slideway	mm	294	395	430	550
Tool shank		BT30	BT30/BT40	BT40	BT40
Spindle speed	rpm	10000	10000	10000	8000
Spindle motor Power	kw	2.2	3.7	5.5	7.5
X/Y/Z axis rapid moving speed	mm/min	10000	10000	10000	48000
Reposition accuracy	mm	0.01/300	0.007	0.007	0.002
