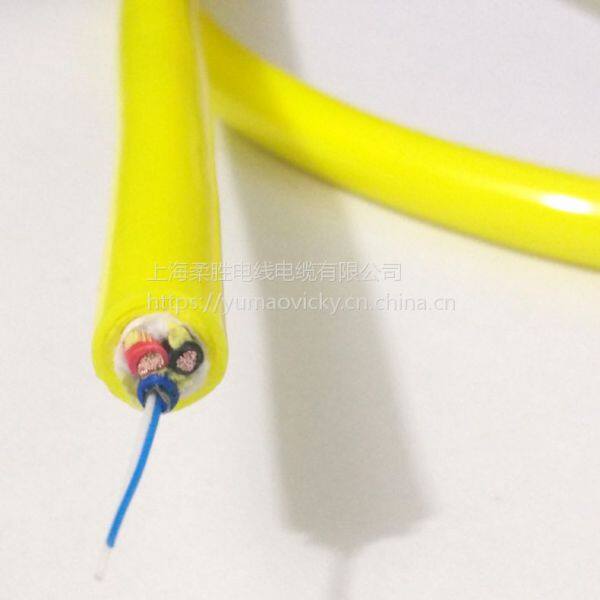

Customs Buoyancy Floating Cable 3 Wire Electrical Cable

Features:

 Floating Cable relies on foam core extrusion capabilities to achieve precise cable buoyancy requirements. It has good bendability, and abrasion-resistant and may be fitted with choice of jackets to achieve resistance to various chemicals including acids, salt water, oil, and gasoline. Cable is suited for powering and controlling robotic cleaning systems in swimming pools and aquarium facilities as well as marine applications and submersible environmental pumping systems

Mechanical:

Braided kevlar strength member (1000 Ibs)

Standard length 500 meters

Sheath material: PVC

Diameter: 0.55” (customization available)

500Ibs(22.7kg) per 500 feet

Electrical:

Conductor: 75 ohm coax, 24awg, 18awg, 22awg

300V rated conductors

Options:

Cable assembly for all cameras and lights

Cable assembly for ROV

Description:

Floating Cable relies on foam core extrusion capabilities to achieve precise cable buoyancy requirements. It is flexible, movable,UV-stable, good bendability, and abrasion-resistant and may be fitted with choice of jackets to achieve resistance to various chemicals including acids, salt water, oil, and gasoline. Cable is suited for powering and controlling robotic cleaning systems in swimming pools and aquarium facilities as well as marine applications and submersible environmental pumping systems

Application:
The flexible shielded robot cable with highly torsion and bending resistance are mainly used in industrious   sites, indoor and outdoor applications, robots, transmission systems and spindle drives. It also can be used in these places (high frequency and continuous motion back and forth, irregular torsion movement
with  bend and irregularly highly speed complex motion). Such as multi-axis articulated robot power
