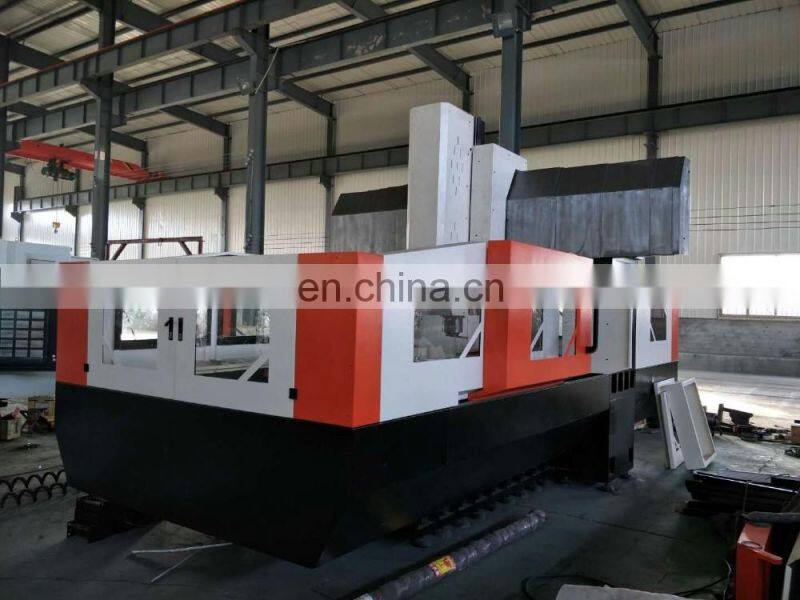

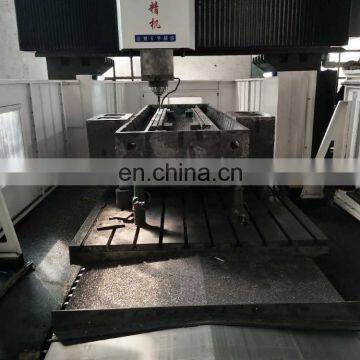

Five Axis CNC Aluminium Machining Center For Sale

Name: Five Axis CNC Aluminium Machining Center For Sale
Brand: HUNK
Availability: InStock

FOB Price

US$ 89,500 - 175,600 / Set

1 Set(Min. Order)

Port Qingdao Port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HUNK	Place of Origin	Shandong, China
Model Number	GMC	Type	Gantry
Certification	ISO9001 CE	After-sales Service Provided	Engineers available to service machinery overseas
Warranty	12 Months	Weight	15-30T
Dimension(LWH)	Models	Voltage	Customer's Requirement
Condition	New	Power(W)	15/18/22KW

Product Description

Shandong Hunk Precision Machinery Co.,Ltd
Our company is specializing in the production of CNC machine tool, and we has passed the ISO9000 certification and the right of import and export. By the August 2014, our company has owned 10 patent technologies, including the appearance, design, the utility model of machine and so on. And our company is a provincial high-tech enterprises.

We are a privately held producer of CNC machine for metal / alloy parts processing and other mold machining . Our company lies in the capital of Shandong province which is located
in North China. We have been engaged in the production for more than 20 years and we are devoted to quality product, reliable service, and providing a comprehensive support system for all our customers. Our equipments have also been certificated by CE, ISO, TUV authorities. So, don't worry anything

Products Types
CNC LATHE	Slant Bed CNC Lathe
	Flat Bed CNC Lathe
	Vertical CNC Lathe
VMC	Double Column CNC Machining Center
	Vertical CNC Machining Center
	Vertical CNC Milling Machine
HMC	Horizontal CNC Machining Center
	Horizontal CNC Milling Machine
	GSK,SYNTEC,MITSUBISHI,FANUC,SIEMENS,KND FAGOR,etc for option

Main Features

The main configuration

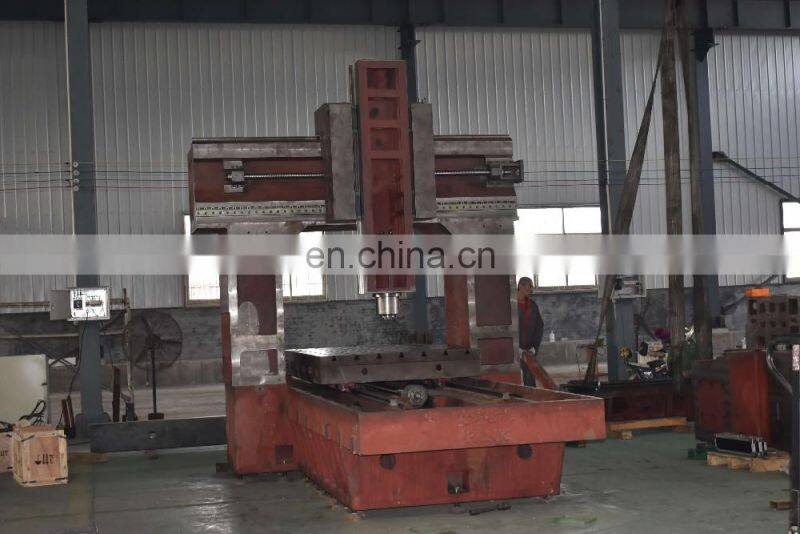

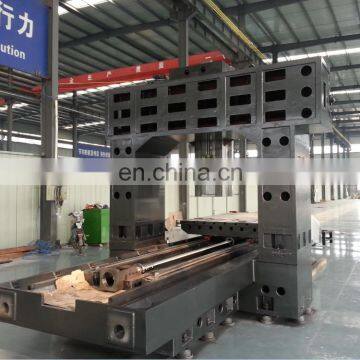

Resin sand casting

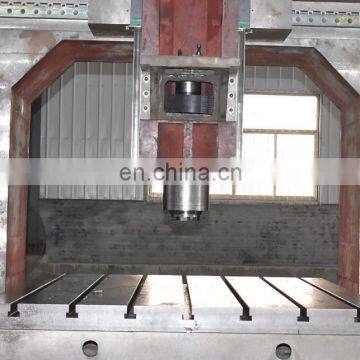

Direct-type spindle (Taiwan)

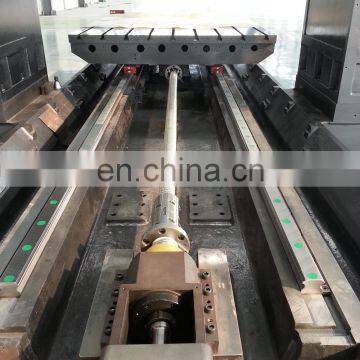

Ball screw and precision nut (Taiwan)
Pressurizing cylinder (Taiwan)

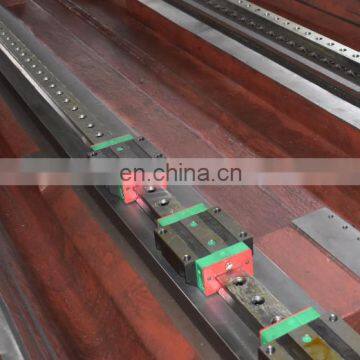

Linear guideway (Taiwan)
Bearing (Japan NSK)
Guide rail shields (Taiwan)
Electric lubrication system
Cooling water system
One set of air cooling pipes
Synchronous belt wheel and belt for spindle
FANUC (Standard), Beijing KND,SIEMENS,MITSUBISHI(optional)
Water coolant through spindle, oil cooler (optional)
Note: The travel of X/Y/Z can be customized

Technical parameter

Item	Unit	GMC1090G	GMC1210	GMC1513	GMC2016	GMC2518	GMC3022

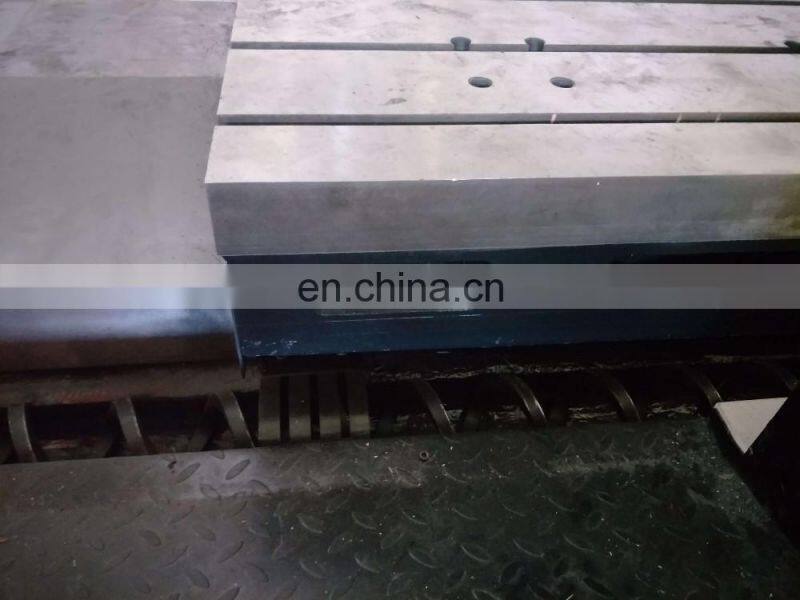

Table size	mm	900*1000	1200*900	1500*1000	2000*1300	2500*1600	3000*2000
T slot		4-22-100	4-22-150	5-22-150	7-22-150	8-22-150	9-22-180
Max. Load	kg	1000	2000	3000	4000	5000	6000
X axis travel	mm	900	1200	1500	2000	2500	3000
Y axis travel	mm	1000	1000	1200	1600	1800	2200
Z axis travel	mm	650	800	800	800	1000	1000
Distance from spindle nose to table	mm	50-650	50-850	50-850	50-970(200/250/300)	250-1250	250-1250
Distance between two column	mm	1100	1100	1300	1650	1800	2200
Spindle speed	r/min	15000	6000	6000	6000	6000	6000
Spindle tapper		Hvct(Electric Spindle),BT30	BT40/BT50	BT50	BT50	BT50	BT50
Spindle motor power	KW	5.5	11	15	18.5	22	22
X/Y-axis rapid travel speed	m/min	30	20	20	20	20	20
Z axis rapid moving speed	m/min	20	15	15	15	15	15
Cutting feed	mm/min	5-15000	5-8000	5-8000	5-8000	5-8000	5-8000
Guide way		X/Y/Z linear guide way
X/Y/Z Positioning accuracy	mm	0.015	0.022	0.022	0.022	0.022	0.022
X/Y/Z Re-positioning accuracy	mm	0.010	0.012	0.012	0.012	0.012	0.012
Tool magazine		16	24	24	24	24	24
Max. diameter/length	mm	φ30/80	φ200/350	φ200/350	φ250/400	φ300/500	φ300/500
Tool max. weight	kg	8	15	15	15	15	15
Machine N.w	t	8	13	16	22	26	30
LWH	mm	250023002500	450026003600	450030003700	5500*3500	6500*4000	7500*4500

Our Service

Pre-sale service

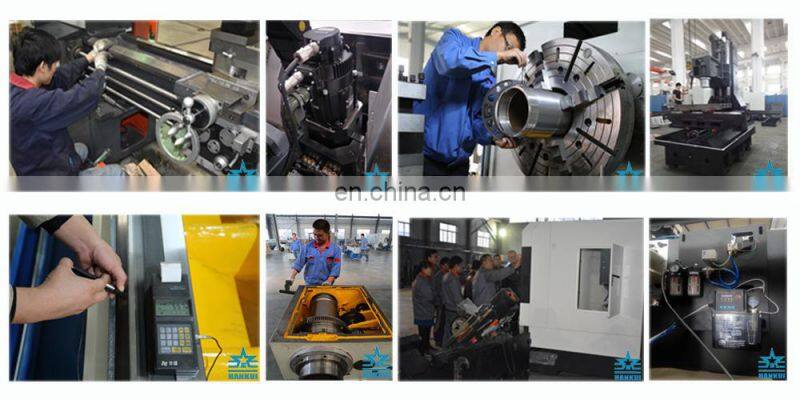

Factory view

Professional suggestions

Free consult

After-sale service

Technology support

Engineer overseas direction

All life service gurrantee

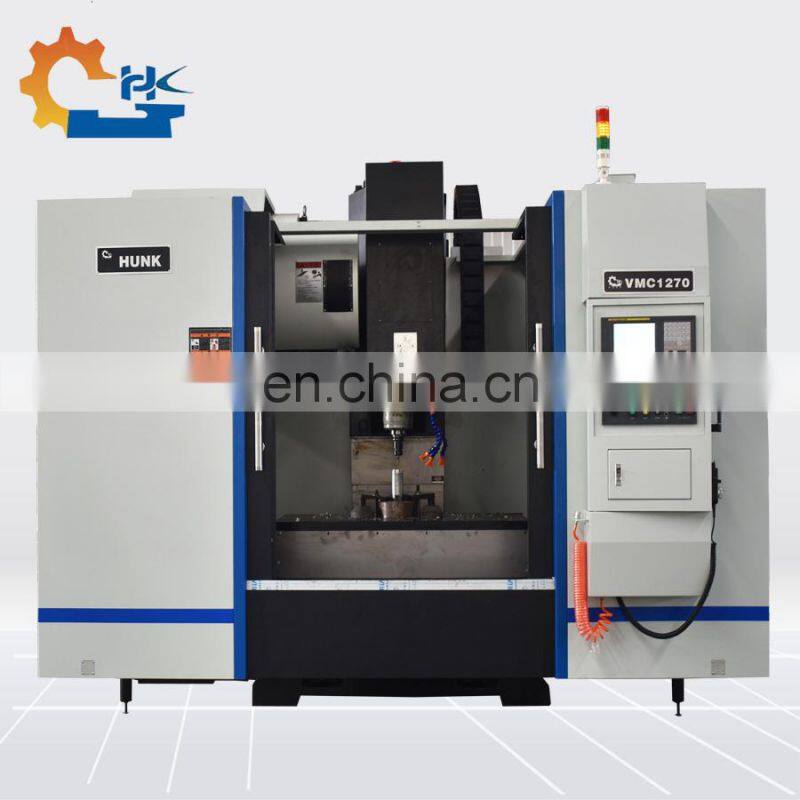

VMC1270L CNC Machining Center/Milling Machine

91.8% Response Rate

Horizontal CNC Lathe Machine

91.8% Response Rate

Double Column Gantry CNC Machining Center

91.8% Response Rate

Our Company

Shandong Hunk Precision Machinery Co.,Ltd
Shandong Hunk Precision Machinery Co.,Ltd, is a CNC machine tools factory, located in the beautiful capital Jinan city, integrated with manufacturing, processing and sales. It was set up by the former Jinan Machine tools factory employees.The plant area is about 10,000 square meters. We have a number of R&D persons and technicians who have more than 20 years experience of machine tool design and assembly. We have mastered the advanced machine tool technology and were dedicating to service customers domestic and abroad and welcomed deeply.
