Ecomoical CNC Type Gantry Mill Machine Price

Name: Ecomoical CNC Type Gantry Mill Machine Price
Brand: HUNK
Availability: InStock

FOB Price

US$ 70000.00 - 75000.00 / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HUNK	Model Number	Gantry
Type	Gantry	Certification	CE ISO9001
After-sales Service Provided	Engineers available to service machinery overseas	Warranty	12 Months
Weight	16	Dimension(LWH)	5.5*3.5m
Voltage	380V/50Hz	Condition	New
Power(W)	18.5kw

Product Description

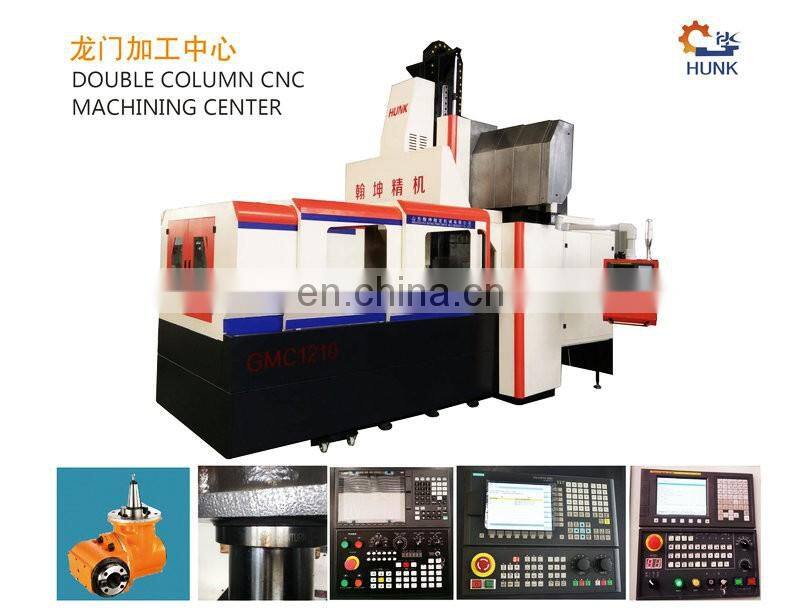

CNC Gantry Machining Center

The gantry machining center is a kind of gantry frame type machining center with fixed beam and removable workbench.

It is of the advanced level among similar lathe, and it is a kind of advanced equipment with high efficiency, high precision and high reliability.

The structure and technology of lathe is maturity, it’s quality is stable, and it can process the milling, drilling, boring, reaming and tapping of parts precisely and efficiently. It can also realize clamping parts all at once, and can finish the parts processing of top, forward, backward, left, and right side, which especially adapt to the processing of parts, mould, and complex surface.

It is widely used in general machinery, aviation, aerospace, automotive, nuclear industry, energy, mould, locomotive, heavy duty machine, engineering machinery, ships, machine tools, electronics, printing, textile and other manufacturing industries.

Products Show

Item	Unit	GMC1090	GMC1210	GMC1513	GMC2016	GMC2518	GMC3022
Table size	mm	900*1000	1200*900	1500*1000	2000*1300	2500*1600	3000*2000
T slot		4-22-100	4-22-150	5-22-150	7-22-150	8-22-150	9-22-180
Max. Load	kg	1000	2000	3000	4000	5000	6000
X axis travel	mm	900	1200	1500	2000	2500	3000
Y axis travel	mm	1000	1000	1200	1600	1800	2200
Z axis travel	mm	650	800	800	800	1000	1000
Distance from spindle nose to table	mm	50-650	50-850	50-850	50-970 (200/250 /300)	250-1250	250-1250
Distance between two column	mm	1100	1100	1300	1650	1800	2200
Spindle speed	r/min	15000	6000	6000	6000	6000	6000
Spindle tapper		Hvct (Electric Spindle), BT30	BT40/BT50	BT50	BT50	BT50	BT50
Spindle motor power	kw	5.5	11	15	18.5	22	22
X/Y-axis rapid travel speed	m/min	30	20	20	20	20	20
Z axis rapid moving	m/min	20	15	15	15	15	15
Cutting feed	mm/min	5-15000	5-8000	5-8000	5-8000	5-8000	5-8000
Guide way		X/Y/Z linear guide way
X/Y/Z Positioning accuracy	mm	0.015	0.022	0.022	0.022	0.022	0.022
X/Y/Z Re-positioning accuracy	mm	0.010	0.012	0.012	0.012	0.012	0.012
Tool magazine		16	24	24	24	24	24
Max. diameter/ length	mm	φ30/80	φ200/350	φ200/350	φ250/400	φ300/500	φ300/500
Tool max. weight	kg	8	15	15	15	15	15
Machine N.w	t	8	13	16	22	26	30
LWH	mm	250023002500	450026003600	450030003700	5500*3500	6500*4000	7500*4500

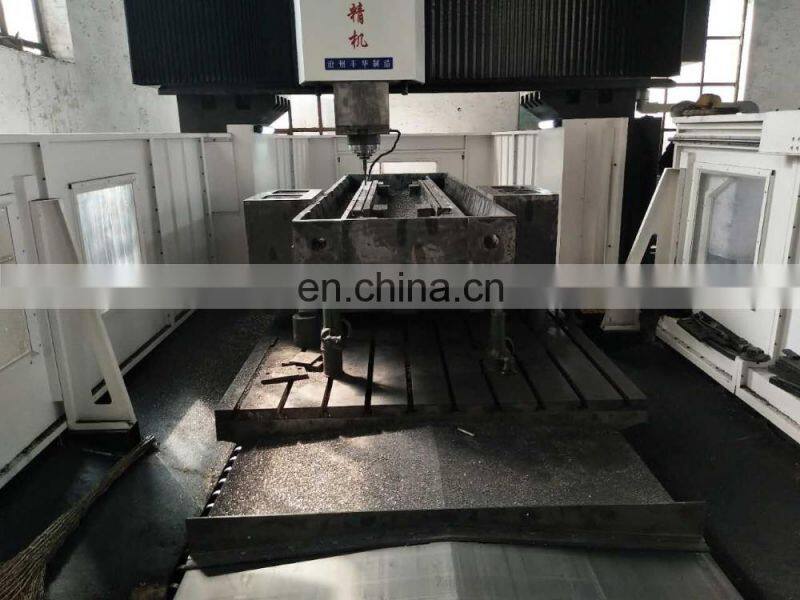

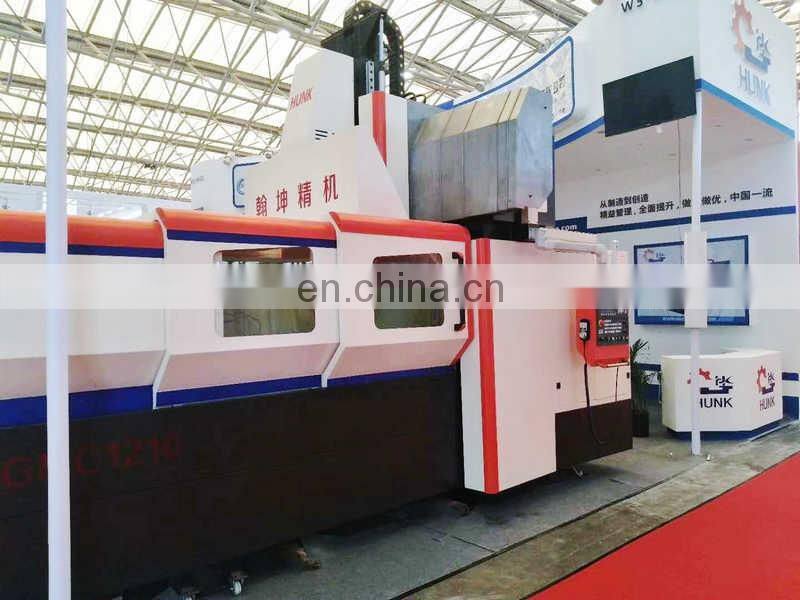

Detailed Images

Our Company

Shandong Hunk Precision Machinery Co.,Ltd

Shandong Hunk Precision Machinery Co.,Ltd, is a CNC machine tools factory, located in the beautiful capital Jinan city, integrated with manufacturing, processing and sales. It was set up by the former Jinan Machine tools factory employees.The plant area is about 10,000 square meters. We have a number of R&D persons and technicians who have more than 20 years experience of machine tool design and assembly. We have mastered the advanced machine tool technology and were dedicating to service customers domestic and abroad and welcomed deeply.

Factory

Our Factory

Workshop

Our Workshop

Warehouse

Our Warehouse

Team

Our Team

Our Service

Pre-sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas

Our Certifications

Packing & Delivery

Packing Details : Export Packing, wooden case

Delivery Details : 50 days after receiving the deposite

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory and we have our own company for exporting.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: What kind of controls/Parts do you use on your machines?

A: AMS, OMRON, Schneider, Siemens, and ASK,ABBA,OPTIMA(ITALIA),HSD
